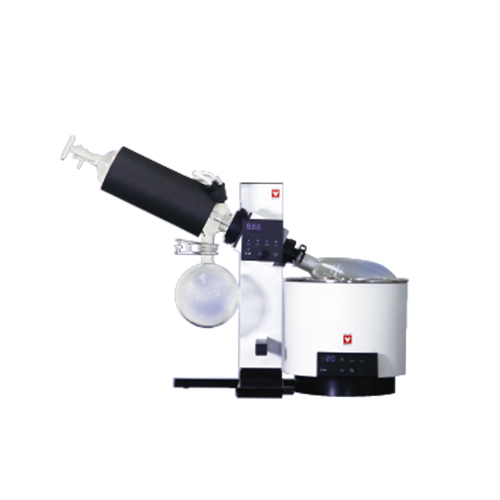

Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A Overview
The Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A is a complete RE212A distillation system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This 220V rotary evaporator pairs a 5 L oil bath heated from RT +10°C to 180°C with Glassware Set A and a traditional diagonal condenser for chiller-based recovery.
Each set ships with the RE212A main unit, the BO312A oil bath, and a glassware package built around a double corrugated condenser offering 0.143 m² of cooling surface. Rotation runs from 5 to 315 rpm across forward, reverse, and auto-inversion modes, with evaporation rates reaching 23 ml/min. A manual spring-loaded jack lifts the flask up to 200 mm with stepless, one-touch locking.
Wiring accepts 200–230V single-phase power at 50/60 Hz and 1 A through a round terminal. The system carries a 90 lb shipping weight and a 36 × 36 × 27 in footprint, with exterior surfaces in chromium-free electrogalvanized steel and anodized aluminum. Country of origin is Switzerland (CH). LabSupplies.com ships genuine units from USA inventory.
Key Features
- Wide rotation range: 5 to 315 rpm with forward, reverse, and auto-inversion modes driven by a DC brushless servo motor.
- Manual slide jack: spring-loaded lift reaches a 200 mm maximum height, adjusts steplessly, and holds with a one-touch lock.
- Set inversion design: glassware and bath mount on either the left or right side to suit dominant hand and bench layout.
- High-efficiency condenser: double corrugated tube delivering 0.143 m² of cooling surface, paired with Glassware Set A diagonal condenser for chiller use.
- Digital speed display: control knob with eight brightness levels for clear readout in varied lighting.
- Layered safety: motor overload, over/low-voltage and speed-sensor protection on the drive, plus independent overheat prevention and overcurrent fuse on the oil bath.
How to Choose the Right Rotary Evaporator
Matching a rotary evaporator to a workflow means weighing flask size, heating medium, control style, and site power before purchase. Use the criteria below to confirm this RE212A system fits your distillation needs.
- Capacity: the 5 L oil bath supports evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml, so confirm your batch volumes fall within range.
- Temperature range: the BO312A oil bath spans RT +10°C to 180°C with ±2.0°C accuracy, suiting higher-boiling solvents that exceed a water bath ceiling.
- Control type: digital speed display with a control knob gives repeatable rotation setting, useful where method consistency matters.
- Voltage and power: this unit requires 200–230V single-phase service at 50/60 Hz; verify your bench circuit before installation since it ships with a round terminal and no plug.
- Footprint and orientation: the 36 × 36 × 27 in footprint plus set-inversion mounting lets you align the system to bench space and operator handedness.
- Solvent compatibility: the standard FKM vacuum seal handles general use, while a PTFE seal is recommended for ketone and ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | RE-212 main unit + Glassware A + oil bath |
| Glassware Set | Set A — traditional diagonal condenser (use with chiller) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Oil bath |
| Bath Model | BO-312-A |
| Bath Temperature Range | RT +10°C to 180°C |
| Bath Temperature Accuracy | ±2.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928064 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-212-AO2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com supplies this RE212A system as an authorized Yamato Scientific dealer, so every order ships as a genuine factory unit backed by the manufacturer warranty. Place your order directly online and route spec questions to our lab-equipment team.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty coverage.
- In stock: ready to order without backorder delays.
- Ships from USA inventory: domestic dispatch on this complete rotary evaporator set.
- Lab-equipment specialists: dedicated support for configuration and spec questions before you order.
Frequently Asked Questions
What temperature range does the BO312A oil bath reach?
The BO312A oil bath heats from RT +10°C to 180°C with ±2.0°C accuracy. This range supports higher-boiling solvents that exceed the ceiling of a standard water bath.
What flask sizes are compatible with the RE212A?
The RE212A accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer adapts the system for smaller evaporation flasks.
What power supply does this rotary evaporator require?
This system runs on 200–230V single-phase power at 50/60 Hz and 1 A. It ships with a round terminal and no plug, so confirm your bench circuit before installation.
What materials make up the exterior of the unit?
The exterior uses chromium-free electrogalvanized steel sheet with a baked-on finish, anodized and baked-finish aluminum, and fiber-glass-reinforced polybutylene terephthalate resin.
What does Glassware Set A include?
Glassware Set A features a traditional diagonal condenser intended for use with a chiller. The condenser is a double corrugated tube providing 0.143 m² of cooling surface.
What vacuum seal is fitted, and can it handle aggressive solvents?
The standard vacuum seal is FKM for general distillation. A PTFE seal is recommended when working with ketone or ether solvents.
