Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B Overview

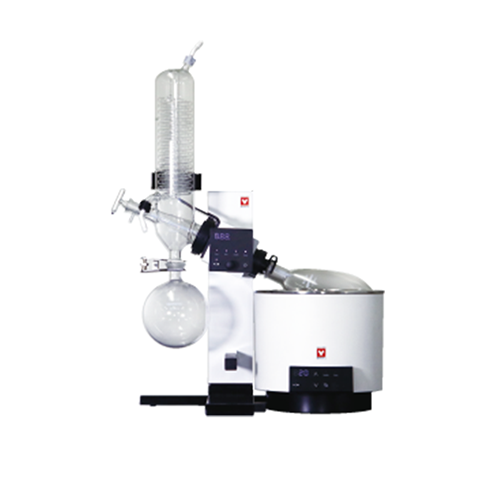

The Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B pairs the Yamato Scientific RE212A main unit with a 5 L oil bath and vertical-condenser Glassware Set B. Distillation runs from room temperature to a 180°C bath ceiling at speeds of 5 to 315 rpm. LabSupplies.com supplies this complete system as an authorized Yamato Scientific dealer.
Exterior panels use chromium-free electrogalvanized steel with a baked-on finish, anodized aluminum, and fiberglass-reinforced polybutylene terephthalate resin. A DC brushless servo motor drives rotation, while the double corrugated-tube condenser delivers 0.143 m² of cooling surface. Manual spring-loaded jack lifts the flask up to 200 mm with stepless adjustment and one-touch lock.
Power draws 200–230V single-phase at 50/60 Hz through a round terminal without a plug. Footprint measures 36 × 36 × 27 inches, and the packed system weighs 90 lbs. Manufactured in Switzerland, the unit includes motor overload, over-/low-voltage, and speed-sensor-error protection as standard.
Key Features
- Set inversion: glassware and oil bath mount on either side, left or right, to suit a technician's dominant hand and the installation location.
- Rotation control: forward, reverse, and auto-inversion modes with a digital speed display and control knob offering 8 brightness levels.
- Slide jack lift: manual spring-loaded mechanism raises the flask to a 200 mm maximum height with stepless, one-touch locking.
- Condenser insulation kit: supplied as standard to suppress condensation on the condenser surface.
- Evaporation throughput: capacity up to 23 ml/min, accepting evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml.
- Solvent-ready sealing: FKM vacuum seal fitted as standard, with PTFE recommended for ketone and ether solvents.
How to Choose the Right Rotary Evaporator
Matching a rotary evaporator to your workflow comes down to bath capacity, temperature reach, control style, and site power. Weigh each axis against the solvents and flask sizes your lab runs most.
- Bath capacity and flask range: a 5 L oil bath supports evaporation flasks from 50 to 2000 ml, so confirm your typical batch volume fits the working range.
- Temperature range: this oil bath spans RT +10°C to 180°C, covering higher-boiling solvents that a water bath cannot reach.
- Control type: a digital speed display with auto-inversion suits labs that want repeatable, hands-off operation across forward and reverse cycles.
- Voltage and power: verify your bench supports 200–230V single-phase, 50/60 Hz before ordering, since the terminal ships without a plug.
- Footprint: Glassware Set B is space-saving — three units fit in a standard fume hood — so plan around the 36 × 36 × 27 inch envelope.
- Solvent compatibility: choose the PTFE vacuum seal upgrade when distilling ketones or ethers; FKM covers general-purpose use.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | RE-212 main unit + Glassware B + oil bath |
| Glassware Set | Set B — standard vertical condenser, space-saving (three fit in a standard fume hood) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Bath Type | Oil bath |
| Bath Model | BO-312-A |
| Bath Temperature Range | RT +10°C to 180°C |
| Bath Temperature Accuracy | ±2.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059928071 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RE-212-BO2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com ships the RE212A rotary evaporator system as a complete, ready-to-install set so your lab can place an order directly and start distilling sooner.
- Authorized Yamato Scientific dealer: every unit is genuine and backed by the manufacturer's warranty.
- In stock: the complete system is available now, no waitlist.
- Ships from USA inventory: domestic dispatch keeps lead times short.
- Lab-equipment specialists: our team answers spec and configuration questions before you order.
Frequently Asked Questions
What temperature range does the BO312A oil bath cover?
The BO312A oil bath operates from RT +10°C up to 180°C with ±2.0°C accuracy. This higher ceiling supports solvents and applications beyond the reach of a water bath.
What bath capacity and flask sizes does this system accept?
The oil bath holds approximately 5 L (Φ240 × H119 mm). It accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml, with an optional reducer for smaller flasks.
What voltage and power supply does the RE212A require?
This configuration runs on 200–230V single-phase, 50/60 Hz at 1 A. The supply uses a round terminal and ships without a plug, so confirm your bench power before installation.
What rotation speed and modes are available?
Rotation runs from 5 to 315 rpm via a DC brushless servo motor. Forward, reverse, and auto-inversion modes are selectable, with speed set through a digital display and control knob.
Which vacuum seal is recommended for aggressive solvents?
FKM is the standard vacuum seal for general-purpose distillation. Yamato recommends a PTFE seal when working with ketone or ether solvents for improved chemical compatibility.
What is included in Glassware Set B?
Glassware Set B provides a standard vertical condenser with a double corrugated-tube design offering 0.143 m² of cooling surface. The vertical layout is space-saving, allowing three units to fit in a standard fume hood.
