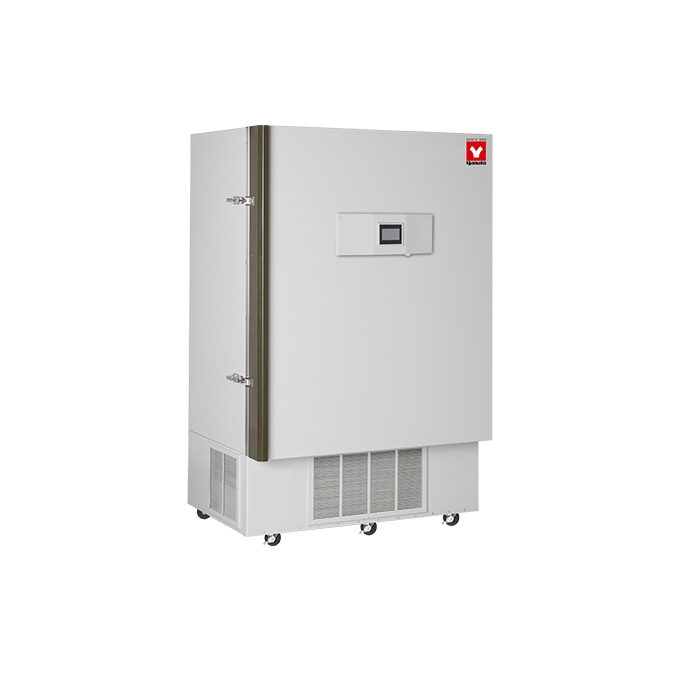

Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost Overview
The Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost (model LTF801UP) is a laboratory freezer from Yamato Scientific, supplied through LabSupplies.com as an authorized dealer. This upright unit holds 28 cu.ft. (792 L) and maintains chamber temperatures across a 0°C to -40°C range. A touch-screen digital controller manages set point, alarms, and data logging from a single interface.
Chamber walls use 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel finished in powder-coated cool gray. Four adjustable shelves create five compartments and accept up to 30 racks. Refrigeration runs on a single-stage system with one hermetic compressor and CFC- and HCFC-free refrigerant. An air-cooled condenser removes the need for liquid coolant.
Electrical configurations include 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Exterior dimensions measure 54" × 37" × 79.5", and the freezer ships at 1,125 lbs. Manufactured in the USA and UL Listed, every unit undergoes seven days of testing before it leaves the factory.
Key Features
- Touch-screen controller: displays set point and chamber temperature, with a viewable temperature graph and multi-level security.
- Alarm system: Hi/Low alarms with email and SMS notification, audible and visual signals, alarm silencing and battery-test switches, plus battery back-up.
- Connectivity and data: USB and Ethernet ports, data logging downloadable via USB or FTP, and VNC remote access from a PC or smart device.
- Remote monitoring contacts: alarm-relay and power-failure dry contacts allow hook-up to a building or facility monitoring system.
- Storage capacity: four adjustable shelves form five compartments and hold up to 30 racks within the 792 L interior.
- Access port: 1/2" porthole on the left side of the cabinet, supplied with plugs, for probes or sampling lines.
How to Choose the Right Low-Temp Freezer
Selecting a low-temperature freezer comes down to matching storage volume, temperature class, and site power to your sample protection requirements. Use the criteria below to confirm the unit fits your workflow before purchase.
- Capacity: a 28 cu.ft. (792 L) interior with 30-rack capacity suits high-throughput sample archives; size to your current and projected inventory.
- Temperature range: the 0°C to -40°C span fits enzymes, reagents, and many biological samples that do not require ultra-low storage.
- Control type: a touch-screen controller with data logging and remote alerts supports labs that need audit-ready temperature records.
- Voltage and power: confirm your circuit matches an available configuration (115V, 208V, 230V at 60 Hz, or 220V at 50/60 Hz, single-phase).
- Footprint: verify the 54" × 37" × 79.5" exterior and 1,125 lb weight clear your doorways, floor rating, and ventilation clearances.
- Safety and monitoring: battery back-up, dry contacts, and audible/visual alarms protect samples during mechanical or power failures.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 28 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 792 L / 28 cu.ft. |
| Rack Capacity | 30 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 38" × 25" × 51.25" (96 × 63 × 130 cm) |
| Exterior Dimensions | 54" × 37" × 79.5" (137 × 93 × 201 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930685 |
| Shipping Weight | 1125 lbs |
| Dimensions (L × W × H) | 101 × 43 × 53 in |
| Component Size | 28 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-801UP | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every LTF801UP ships as a genuine unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists are available for spec and configuration questions before you commit.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to process and ship from USA inventory.
- Made in USA: manufactured domestically and UL Listed.
- Lab-equipment specialists: direct support for technical and configuration questions.
Frequently Asked Questions
What temperature range does the LTF801UP cover?
The LTF801UP operates across a 0°C to -40°C range. A constant low set point is guaranteed even in warm ambient environments up to +30°C, and every unit is tested for seven days under demanding conditions before shipment.
How much storage capacity does this freezer provide?
The interior holds 28 cu.ft. (792 L) and accepts up to 30 racks. Four adjustable shelves divide the chamber into five compartments, with interior dimensions of 38" × 25" × 51.25".
What voltage and power does the LTF801UP require?
It supports 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Confirm your available circuit matches one of these configurations before installation.
What materials is the cabinet made from?
The chamber is built from 14-gauge zinc-coated galvanized steel. The exterior uses 16-gauge steel finished in powder-coated cool gray for durability in lab environments.
How does the freezer alert staff to a failure?
A battery-operated alarm emits both audible and visual signals on mechanical or electrical failure, with over- and under-temperature settings, an alarm silencing switch, and a battery test switch. Hi/Low alarms also send email and SMS notifications, and a relay supports remote hook-up.
Can I monitor and log temperatures remotely?
Yes. The touch-screen controller logs data downloadable via USB or FTP and offers VNC remote access from a PC or smart device. Alarm-relay and power-failure dry contacts allow integration with facility monitoring systems.
