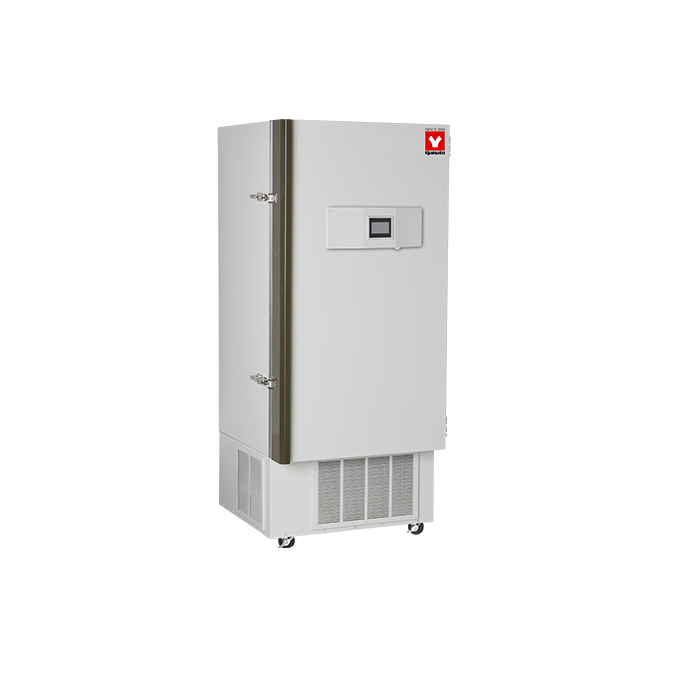

Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost Overview
The Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost (model LTF401UP) is a laboratory upright freezer for reliable cold storage. Yamato Scientific builds this 13 cu.ft. cabinet to hold samples from 0°C down to −40°C. Standard equipment includes a touch-screen digital controller, audible and visual alarms, remote alarm contacts, USB and Ethernet ports, data acquisition, and alarm battery back-up.
Galvanized steel construction supports long-term sample security. A 14-gauge zinc-coated galvanized steel chamber forms the interior, while the exterior uses 16-gauge steel finished in powder-coated cool gray. Four adjustable shelves divide the chamber into five compartments and hold up to 15 racks across 370 L of usable space. Single-stage refrigeration with one hermetic compressor and a CFC- and HCFC-free refrigerant drives the air-cooled, coolant-free condenser.
Electrical options cover 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 35" × 34.5" × 79.5", with a shipping weight of 850 lbs. Built in the USA and UL Listed, this freezer ships from LabSupplies.com as an authorized Yamato Scientific dealer. Every unit undergoes seven days of factory testing before shipment.
Key Features
- Touch-screen control system: displays set point and chamber temperature, with Hi/Low alarm plus email and SMS notification, downloadable data logging via USB or FTP, multi-level security, and VNC remote access from a PC or smart device.
- Battery-operated alarm system: audible and visual signal on mechanical or electrical failure, over- and under-temperature settings, alarm silencing switch, battery test switch, and a relay for remote alarm hook-up.
- CFC- and HCFC-free refrigeration: single-stage system with one hermetic compressor and an air-cooled condenser that requires no liquid coolant.
- 370 L storage layout: four adjustable shelves create five compartments and accommodate up to 15 racks.
- 1/2" access port: portholes in the left-hand side of the cabinet, supplied with plugs for probes or sensor leads.
- Factory-validated performance: each freezer runs a 7-day test and maintains a constant low set point in warm +30°C ambient environments.
How to Choose the Right Low-Temp Freezer
Matching a freezer to your workflow means weighing storage volume against sample security, site power, and floor space. Use these axes to confirm the unit fits your lab before purchase.
- Capacity: 13 cu.ft. (370 L) with 15-rack capacity suits mid-volume sample libraries; estimate growth so shelving and rack counts cover future inventory.
- Temperature range: a 0°C to −40°C span fits reagents, enzymes, and many biological samples that do not require ultra-low −80°C storage.
- Control and monitoring: touch-screen control with data logging, remote VNC access, and email/SMS alarms matters for labs that need audit trails and unattended oversight.
- Voltage and site power: confirm your circuit against the 115V, 208V, 230V, or 220V single-phase options before installation.
- Footprint: verify the 35" × 34.5" × 79.5" exterior and 850 lb weight against door clearances and floor loading.
- Safety and defrost: manual defrost plus battery-backed alarms and remote relay contacts protect samples during failures and routine maintenance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 13 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 370 L / 13 cu.ft. |
| Rack Capacity | 15 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 20" × 22" × 51.25" (50 × 55 × 130 cm) |
| Exterior Dimensions | 35" × 34.5" × 79.5" (88 × 87 × 201 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930647 |
| Shipping Weight | 850 lbs |
| Dimensions (L × W × H) | 46 × 43 × 86 in |
| Component Size | 13 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-401UP | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every LTF401UP ships as a genuine unit backed by the manufacturer warranty. Our lab-equipment specialists answer spec and installation questions before you order.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty coverage.
- In stock: ready to order directly online without delay.
- Ships from USA inventory: domestic fulfillment for faster, predictable delivery.
- Lab-equipment specialists: dedicated support for spec, voltage, and footprint questions.
Frequently Asked Questions
What temperature range does the LTF401UP cover?
The LTF401UP operates from 0°C to −40°C. A touch-screen controller displays both the set point and chamber temperature, and the unit holds a constant low set point even in warm +30°C ambient conditions.
What is the storage capacity and shelf configuration?
The freezer offers 13 cu.ft. (370 L) of interior capacity. Four adjustable shelves create five compartments and accommodate up to 15 racks, with interior dimensions of 20" × 22" × 51.25".
What voltage and power does this freezer require?
It supports 115V, 208V, or 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm your circuit against these options before installation.
What is the freezer built from?
The interior chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel finished in powder-coated cool gray. The unit is UL Listed and made in the USA.
How does the alarm and monitoring system protect samples?
A battery-operated alarm gives audible and visual warnings on mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, and a battery test switch. A relay supports remote alarm hook-up, and email/SMS notifications with data logging extend oversight.
Does the cabinet include an access port for probes?
Yes. A 1/2" porthole on the left-hand side of the cabinet ships with plugs, allowing probes or sensor leads to enter the chamber while sealing unused openings.
