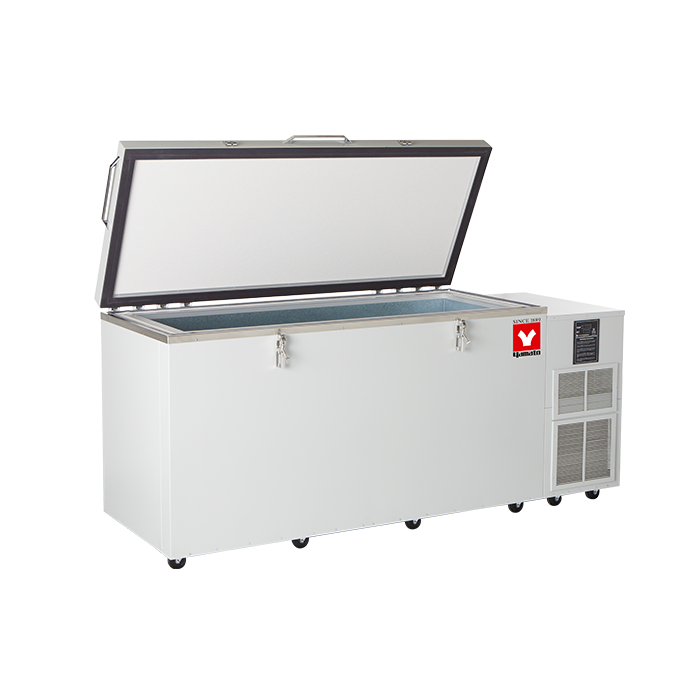

Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost Overview
The Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost (model LTF801C) from Yamato Scientific is a laboratory chest freezer delivering 22 cu.ft. (626 L) of storage across a 0°C to -40°C range. Standard equipment includes a microprocessor digital controller, dual temperature displays, and a battery-backed alarm system. LabSupplies.com supplies this unit as an authorized dealer.
Chamber walls use 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel finished in powder-coated cool gray. A single-stage refrigeration system with one hermetic compressor and an air-cooled condenser requires no liquid coolant. CFC- and HCFC-free refrigerant supports compliance-minded facilities, and manual defrost keeps the design straightforward for routine sample storage.
Electrical options span 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Exterior dimensions measure 98" × 36" × 43.5" with a shipping weight of 1,075 lbs. Built in the USA and UL Listed, each freezer undergoes 7-day testing and holds setpoint in ambient environments up to +30°C.
Key Features
- Digital temperature control: two displays show the set temperature and the actual chamber temperature simultaneously.
- Battery-backed alarm system: audible and visual signals on mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, and a battery test switch.
- Remote alarm hook-up: a relay provides remote alarm contacts for facility monitoring systems.
- CFC- and HCFC-free refrigeration: single-stage system with one hermetic compressor and an air-cooled condenser requiring no liquid coolant.
- 36-rack interior capacity: 626 L (22 cu.ft.) chamber measuring 67" × 19" × 30".
- Verified performance: every unit is fully tested for 7 days under demanding conditions and includes a 1/2" access port.
How to Choose the Right Low-Temp Freezer
Matching a chest freezer to a lab depends on sample volume, target setpoint, site power, and floor space. Use the criteria below to confirm the LTF801C fits your workflow before ordering.
- Capacity: the 22 cu.ft. (626 L) chamber holds up to 36 racks; confirm your sample count and rack format against this footprint.
- Temperature range: a 0°C to -40°C window suits routine cold storage; verify your protocols do not require ultra-low (-80°C) temperatures.
- Control type: digital control with dual displays lets technicians read setpoint and actual chamber temperature at a glance.
- Voltage: available in 115V, 208V, and 230V at 60 Hz plus 220V at 50/60 Hz; match the model to your circuit before installation.
- Footprint: exterior dimensions of 98" × 36" × 43.5" and a 1,075 lb weight require adequate floor space and a clear delivery path.
- Safety: battery-backed audible/visual alarms and remote contacts protect samples during power or mechanical events.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 22 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 626 L / 22 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 67" × 19" × 30" (170 × 48 × 76 cm) |
| Exterior Dimensions | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| Temperature Control System | Digital control with two displays — one shows the set temperature, the other the actual chamber temperature |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | Chart recorder; CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930098 |
| Shipping Weight | 1075 lbs |
| Dimensions (L × W × H) | 101 × 43 × 53 in |
| Component Size | 22 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-801C | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
Purchase the LTF801C chest freezer directly through LabSupplies.com and place your order online today. As an authorized Yamato Scientific dealer, we supply genuine units backed by the manufacturer warranty.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Made in the USA: manufactured domestically and UL Listed.
- Lab-equipment specialists: dedicated support for installation and specification questions.
Frequently Asked Questions
What is the temperature range of the LTF801C?
The LTF801C operates from 0°C to -40°C. A single-stage refrigeration system with one hermetic compressor maintains a constant low setpoint, holding temperature even in warm ambient environments up to +30°C.
How much storage capacity and what are the interior dimensions?
Interior capacity is 22 cu.ft. (626 L), holding up to 36 racks. Interior dimensions measure 67" × 19" × 30" (170 × 48 × 76 cm), while exterior dimensions are 98" × 36" × 43.5" (248 × 91 × 110 cm).
What voltage and power does the freezer require?
The LTF801C is available in 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Confirm your facility circuit before selecting a configuration.
What materials are used in construction?
The chamber is built from 14-gauge zinc-coated galvanized steel. Its exterior uses 16-gauge steel finished in powder-coated cool gray for durability in lab environments.
Does this freezer use manual or automatic defrost?
This unit uses manual defrost. Manual defrost simplifies the design and is well suited to routine cold sample storage applications.
Is the LTF801C certified and performance tested?
Yes. The LTF801C is UL Listed and made in the USA. Every freezer is fully tested for 7 days under demanding conditions before shipment, and uses CFC- and HCFC-free refrigerant.
