Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the LTF801CP from LabSupplies.com

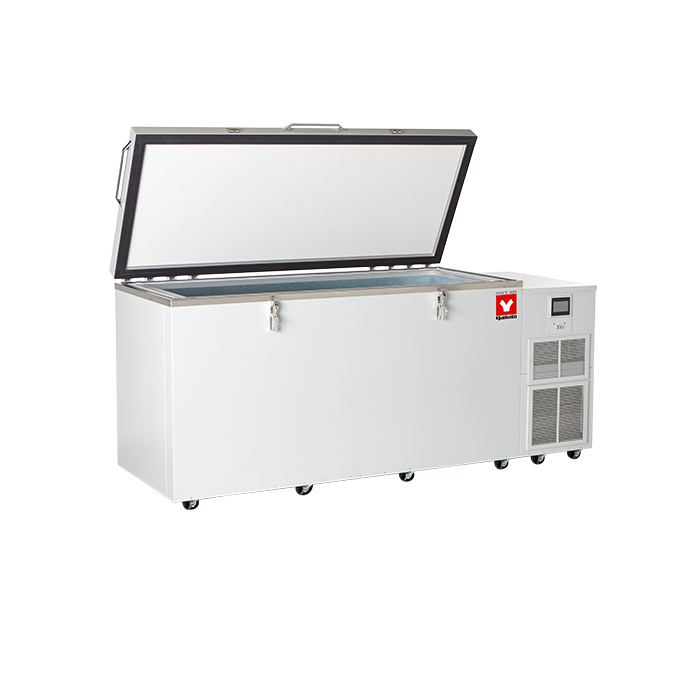

Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost Overview
Electrical options cover 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Exterior dimensions measure 98" × 36" × 43.5", with shipping weight near 1,075 lbs. Built in the USA, each freezer carries UL Listed certification and ships only after seven days of full performance testing.
Key Features
- Touch-screen controller: displays set point and chamber temperature, with viewable temperature graph and multi-level security.
- Network connectivity: USB and Ethernet ports support data acquisition, logging, FTP download, and VNC remote access from a PC or smart device.
- Alarm system: Hi/Low alerts trigger email and SMS notification, plus battery-backed audible and visual signals with silencing and battery-test switches.
How to Choose the Right Low-Temp Freezer
Matching a chest freezer to your lab depends on storage volume, target temperature, monitoring needs, and site power. Review these axes before specifying a unit.
- Capacity: 626 L (22 cu.ft.) and 36-rack support determine how many samples a single unit can hold without crowding.
- Voltage: 115V, 208V, 230V, and 220V options let you match the freezer to available circuits before installation.
- Footprint: 98" × 36" × 43.5" exterior dimensions and ~1,075 lb weight should be checked against doorways, floor load, and aisle clearance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 22 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 626 L / 22 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 67" × 19" × 30" (170 × 48 × 76 cm) |
| Exterior Dimensions | 98" × 36" × 43.5" (248 × 91 × 110 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930623 |
| Shipping Weight | 1075 lbs |
| Shipping Dimensions (L × W × H) | 101 × 43 × 53 in |
| Component Size | 22 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare LTF Series Models
| Model | Capacity | Racks | Interior (W × D × H) | Exterior | Shipping weight |
|---|---|---|---|---|---|
| LTF101CP | 3 cu.ft. | 8 racks | 24" × 12" × 18" (61 × 31 × 46 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) | 500 lbs |
| LTF201CP | 5 cu.ft. | 15 racks | 30" × 18" × 16" (76 × 46 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) | 525 lbs |
| LTF301CP | 9 cu.ft. | 16 racks | 45.5" × 16" × 20" (115 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) | 675 lbs |
| LTF401CP | 12 cu.ft. | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) | 825 lbs |
| LTF501CP | 14 cu.ft. | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) | 900 lbs |
| LTF601CP | 17 cu.ft. | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) | 975 lbs |
| LTF701CP | 21 cu.ft. | 42 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) | 1075 lbs |
| LTF801CP (this model) | 22 cu.ft. | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) | 1075 lbs |
| LTF901CP | 27 cu.ft. | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) | 1125 lbs |
All models in this group share: temperature range 0°C to -40°C.
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| LTF-801CP | 797059930623 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | LTF-801CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.69.0180 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato LTF Platinum Series Low-Temperature Freezer brochure (PDF, 552 KB)
- Yamato Scientific America product page
More in This Series
- Yamato LTF901C Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Yamato LTF901CP Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Yamato LTF801UP Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Yamato LTF801C Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Yamato LTF701CP Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Yamato LTF901U Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
View all Low-Temperature Freezers →
Frequently Asked Questions
What temperature range does the LTF801CP reach?
The LTF801CP operates from 0°C to -40°C. A single-stage hermetic compressor holds this range even in warm +30°C ambient conditions, verified during seven days of factory performance testing.
How much can this chest freezer hold?
It holds 626 L (22 cu.ft.) and accepts up to 36 racks. Interior dimensions measure 67" × 19" × 30", while exterior dimensions are 98" × 36" × 43.5".
What voltage and power does the freezer require?
The unit supports 115V, 208V, or 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Confirm your site circuit before installation.
Can the LTF801CP send remote temperature alerts?
Yes. The touch-screen controller logs data and sends Hi/Low alarms via email and SMS, backed by battery-operated audible and visual signals plus remote alarm-relay and power-failure dry contacts.
What is the UNSPSC code for the Yamato LTF801CP?
The Yamato LTF801CP is classified under UNSPSC 41103000 (ultra low freezer).
Where is the Yamato LTF801CP manufactured?
Yamato Scientific lists USA as the country of origin for the LTF801CP.
Is there a spec sheet or brochure for the Yamato LTF801CP?
Yes. The Yamato LTF Platinum Series Low-Temperature Freezer brochure (552 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato LTF801CP compare with the other LTF Series models?
Yamato builds this LTF Series line in 9 sizes: 3 cu.ft. (LTF101CP), 5 cu.ft. (LTF201CP), 9 cu.ft. (LTF301CP), 12 cu.ft. (LTF401CP), 14 cu.ft. (LTF501CP), 17 cu.ft. (LTF601CP), 21 cu.ft. (LTF701CP), 22 cu.ft. (LTF801CP) and 27 cu.ft. (LTF901CP). All share temperature range 0°C to -40°C. The comparison table on this page lists capacity, racks, interior (w × d × h), exterior and shipping weight side by side.
Which alarms does the Yamato LTF801CP have?
Yamato lists these alarms for the LTF801CP: battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up.
What are the interior dimensions of the Yamato LTF801CP?
The Yamato LTF801CP chamber measures 67" × 19" × 30" (170 × 48 × 76 cm) inside (W × D × H).
How many storage racks does the Yamato LTF801CP hold?
Yamato rates the LTF801CP at 36 racks in 626 L / 22 cu.ft. of storage.
What refrigeration system does the Yamato LTF801CP use?
The Yamato LTF801CP uses single-stage system with one hermetic compressor, CFC- & HCFC-free refrigerant and manual defrost.
What certifications does the Yamato LTF801CP carry?
Yamato lists the LTF801CP as UL Listed.
What optional accessories are available for the Yamato LTF801CP?
Yamato offers these options for the LTF801CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato LTF801CP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the LTF801CP.
What are the shipping dimensions and weight of the Yamato LTF801CP?
Yamato's shipping data lists the LTF801CP at 101 × 43 × 53 in and 1075 lb packed.
