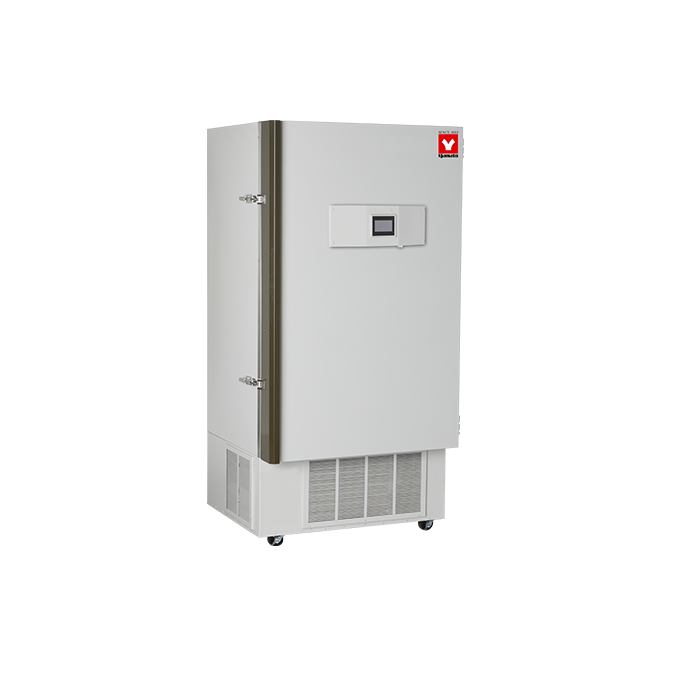

Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost Overview
The Platinum Upright Style Low Temperature Freezer LTF501UP from Yamato Scientific is an 18 cu.ft. laboratory freezer holding a 0°C to -40°C range with manual defrost. LabSupplies.com, authorized dealer, supplies this upright unit for sample storage where stable sub-zero temperatures are required. A touch-screen controller, audible and visual alarms, and remote alarm contacts ship standard.
Construction pairs a 14-gauge zinc-coated galvanized steel chamber with a 16-gauge powder-coated cool gray steel exterior. Four adjustable shelves create five compartments, and the cabinet accepts up to 20 racks across 505 L of interior volume. A single-stage hermetic compressor drives the air-cooled, CFC- and HCFC-free refrigeration system, so no liquid coolant is needed.
Electrical options cover 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 40 × 36 × 79.5 inches, and shipping weight is roughly 900 lbs. Built in the USA, every unit is UL Listed and tested for seven days before dispatch. A 1/2" left-side access port allows external probe routing.
Key Features
- Touch-screen control system: displays set point and chamber temperature, with viewable temperature graph and multi-level security access.
- Alarm package: Hi/Low alarm with email and SMS notification, audible and visual signaling, silencing switch, battery back-up, and a relay for remote alarm hook-up.
- Connectivity and data: USB and Ethernet ports with data logging downloadable via USB or FTP, plus VNC remote access from a PC or smart device.
- Refrigeration: single-stage hermetic compressor, air-cooled condenser, CFC- and HCFC-free refrigerant requiring no liquid coolant.
- Storage layout: 505 L interior, 4 adjustable shelves forming 5 compartments, and capacity for 20 racks.
- Access port: 1/2" porthole on the left-hand cabinet side, supplied with plugs for probe or tubing pass-through.
How to Choose the Right Low-Temp Freezer
Matching a low-temperature freezer to your workflow means balancing storage volume against the temperature class your samples demand, then confirming the unit fits your site power and floor space. Use these axes to qualify a model before purchase.
- Capacity: interior volume and rack count determine how many samples you store; this unit offers 505 L / 18 cu.ft. and holds up to 20 racks.
- Temperature range: confirm the rated band suits your samples; a 0°C to -40°C freezer fits reagents and biologicals that do not require ultra-low -80°C storage.
- Control type: touch-screen controllers with alarms, data logging, and remote access support audited storage and faster troubleshooting.
- Voltage: verify your circuit; options span 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase.
- Footprint and weight: the 40 × 36 × 79.5 inch cabinet and ~900 lb weight require adequate floor space, clearance, and load-rated flooring.
- Defrost type: manual defrost suits stable long-term storage where minimal temperature fluctuation matters more than hands-off maintenance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 18 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 505 L / 18 cu.ft. |
| Rack Capacity | 20 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 23" × 26" × 51.25" (58 × 66 × 130 cm) |
| Exterior Dimensions | 40" × 36" × 79.5" (101 × 91 × 201 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930654 |
| Shipping Weight | 900 lbs |
| Dimensions (L × W × H) | 46 × 43 × 86 in |
| Component Size | 18 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-501UP | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so the LTF501UP ships as a genuine unit backed by the manufacturer warranty. Our lab-equipment specialists can answer spec questions and help you confirm the right voltage and footprint for your facility before you order.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- Ships from USA inventory: straightforward domestic fulfillment.
- Specialist support: dedicated lab-equipment team for technical and spec questions.
Frequently Asked Questions
What temperature range does the LTF501UP cover?
The LTF501UP operates from 0°C down to -40°C with manual defrost. It maintains a constant low setpoint even in warm ambient environments up to +30°C, and every freezer is tested for seven days before shipping.
How much storage capacity does this freezer provide?
It provides 505 L / 18 cu.ft. of interior volume. The cabinet holds up to 20 racks and includes 4 adjustable shelves that create 5 storage compartments. Interior dimensions are 23" × 26" × 51.25".
What voltage and power does the LTF501UP require?
It supports 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm your available circuit before ordering so the unit matches your site power.
What materials is the cabinet made from?
The chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel finished in powder-coated cool gray. The refrigeration uses a single-stage hermetic compressor with an air-cooled, CFC- and HCFC-free system.
What are the exterior dimensions and weight for installation planning?
Exterior dimensions are 40" × 36" × 79.5" (101 × 91 × 201 cm) and the unit weighs approximately 900 lbs. Allow adequate floor space, clearance, and load-rated flooring at the install location.
Does the freezer include alarm and data features?
Yes. It ships with a touch-screen controller, Hi/Low alarms with email and SMS notification, battery back-up, audible and visual alarm signaling, USB and Ethernet ports, data logging via USB or FTP, and VNC remote access.
