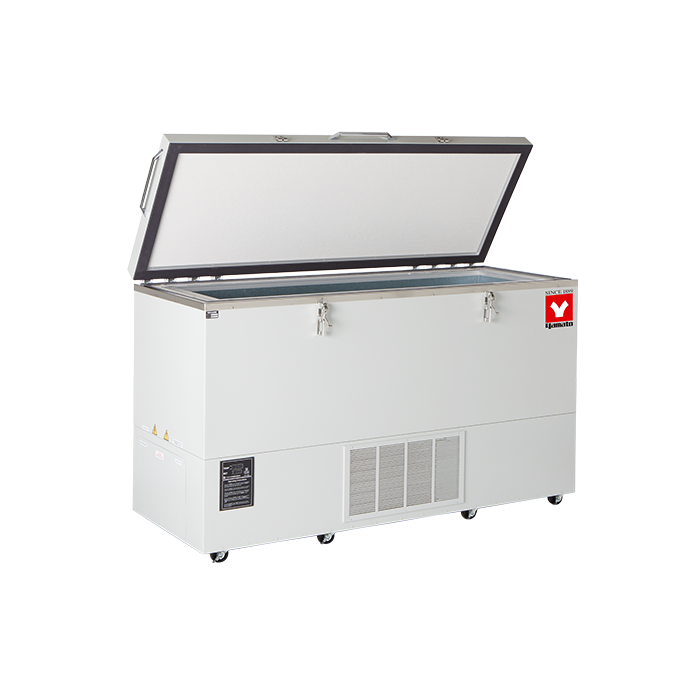

Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost Overview
The Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost (model LTF601C) is a chest-style laboratory freezer from Yamato Scientific. This unit holds 480 L (17 cu.ft.) of sample storage and maintains any setpoint from 0°C down to -40°C. LabSupplies.com stocks it as an authorized dealer.
Chamber walls use 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel finished in powder-coated cool gray. A single-stage refrigeration system with one hermetic compressor drives cooling, and the air-cooled condenser needs no liquid coolant. Refrigerant is CFC- and HCFC-free. Two digital displays read the set temperature and the actual chamber temperature separately.
Electrical options cover 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz. Exterior dimensions measure 81.25" × 33.5" × 48.5", and shipping weight is 975 lbs. Built in the USA, the freezer carries UL Listed certification and arrives after a 7-day performance burn-in.
Key Features
- Microprocessor digital control: two displays show the set temperature and the live chamber temperature at the same time.
- Battery-backed alarm system: audible and visual signals trigger on mechanical or electrical failure, with alarm battery backup.
- Over- and under-temperature protection: adjustable settings, an alarm silencing switch, and a battery test switch are standard.
- Remote alarm relay: built-in remote alarm contacts let facilities tie the unit into a central monitoring system.
- 36-rack interior: 480 L (17 cu.ft.) chamber accepts up to 36 racks, plus a 1/2" access port for probes or recorders.
- 7-day factory testing: every freezer is fully tested for 7 days and holds its low setpoint in warm +30°C ambient environments.
How to Choose the Right Low-Temp Freezer
Matching a chest-style freezer to your protocol comes down to a few measurable axes. Review these criteria against your samples, site, and monitoring needs before specifying a unit.
- Capacity: the 480 L (17 cu.ft.) chamber and 36-rack layout determine how many samples you can store; size it to current volume plus growth.
- Temperature range: a 0°C to -40°C span suits samples that do not need ultra-low -80°C storage, so confirm your target setpoint first.
- Control type: dual digital displays separate set and actual temperature, giving technicians a clear read during routine checks.
- Voltage: match the unit to your circuit; options include 115V, 208V, 230V at 60 Hz and 220V at 50/60 Hz, single-phase.
- Footprint: verify the 81.25" × 33.5" × 48.5" exterior and 975 lb weight clear your doorways and floor rating.
- Safety and monitoring: battery-backed alarms and a remote relay matter for unattended or after-hours storage.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 17 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 480 L / 17 cu.ft. |
| Rack Capacity | 36 racks |
| Interior Dimensions | 69" × 20" × 21" (175 × 50 × 53 cm) |
| Exterior Dimensions | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) |
| Temperature Control System | Digital control with two displays — one shows the set temperature, the other the actual chamber temperature |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | Chart recorder; CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930081 |
| Shipping Weight | 975 lbs |
| Dimensions (L × W × H) | 84 × 42 × 58 in |
| Component Size | 17 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-601C | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so the LTF601C arrives as a genuine unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists stand ready for any spec or fit question.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Ships from USA: domestic fulfillment keeps lead times predictable.
- Specialist support: dedicated lab-equipment staff answer voltage, capacity, and installation questions.
Frequently Asked Questions
What temperature range does the LTF601C maintain?
The LTF601C maintains any setpoint from 0°C down to -40°C. A single-stage refrigeration system with one hermetic compressor holds the chosen temperature, and the freezer is guaranteed to keep a constant low setpoint even in warm +30°C ambient environments.
How much storage capacity does the freezer offer?
The freezer offers 480 L (17 cu.ft.) of interior capacity and accepts up to 36 racks. Interior dimensions are 69" × 20" × 21", while the exterior measures 81.25" × 33.5" × 48.5".
What electrical supply does the LTF601C require?
The LTF601C is available for 115V, 208V, or 230V at 60 Hz single-phase, plus a 220V 50/60 Hz single-phase option. Confirm your site voltage when ordering so we ship the correct configuration.
What materials is the freezer built from?
The interior chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel with a powder-coated cool gray finish. An air-cooled condenser eliminates any need for liquid coolant.
Does the LTF601C require manual defrosting?
Yes, the LTF601C uses manual defrost. Plan periodic defrost cycles into your maintenance schedule to keep chamber performance and temperature uniformity consistent over time.
What alarm features protect stored samples?
A battery-operated alarm produces audible and visual signals on mechanical or electrical failure. Over- and under-temperature settings, an alarm silencing switch, a battery test switch, and a relay for remote alarm hookup are all standard.
