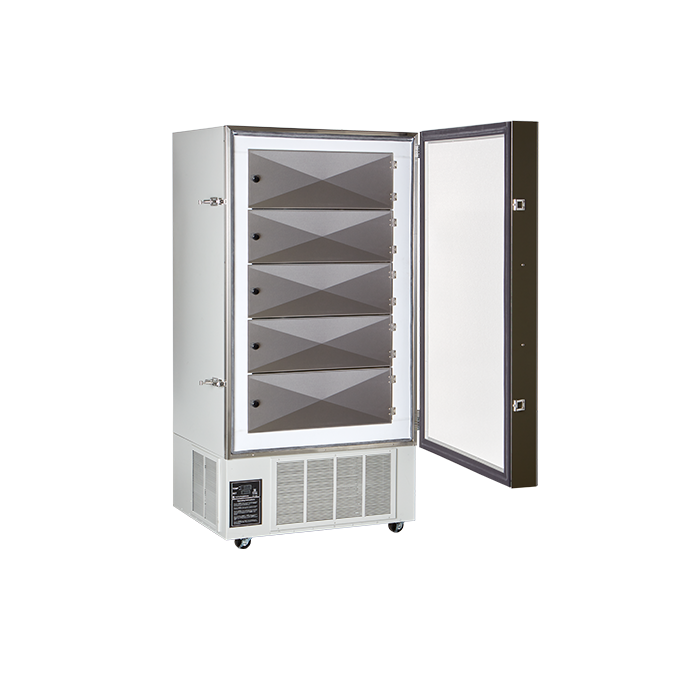

Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost Overview
The Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost (model LTF601U) is a laboratory freezer engineered for reliable cold storage across a 0°C to −40°C range. Built by Yamato Scientific and stocked by LabSupplies.com as an authorized dealer, this upright unit delivers 22 cu.ft. (626 L) of manual-defrost capacity for sample and reagent storage.
Chamber walls use 14-gauge zinc-coated galvanized steel, while the exterior is 16-gauge steel finished in powder-coated cool gray. Four adjustable shelves create five compartments and accommodate up to 25 racks across the 626 L interior. A single-stage refrigeration system with one hermetic compressor and an air-cooled condenser runs on CFC- and HCFC-free refrigerant, requiring no liquid coolant.
Power options cover 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Exterior dimensions measure 43" × 37" × 79.5", and the unit ships at 975 lbs. Manufactured in the USA and UL Listed, each freezer undergoes a 7-day full performance test before it leaves the factory.
Key Features
- Dual-display digital control: a microprocessor controller drives two displays — one shows the set temperature, the other the actual chamber temperature.
- Battery-backed alarm system: audible and visual signals trigger on mechanical or electrical failure, with over- and under-temperature settings, an alarm silencing switch, and a battery test switch.
- Remote monitoring ready: a relay is provided for remote alarm hook-up, and a 1/2" access port supports external probes or recorders.
- CFC- and HCFC-free refrigeration: a single-stage system with one hermetic compressor and an air-cooled condenser needs no liquid coolant.
- Configurable storage: four adjustable shelves form five compartments and hold up to 25 racks within the 626 L chamber.
- Factory-tested performance: every freezer runs a 7-day test and holds its low setpoint in warm ambient conditions up to +30°C.
How to Choose the Right Low-Temp Freezer
Selecting a low-temperature upright freezer comes down to matching capacity, temperature performance, and site power to your storage program. Weigh these criteria against your sample volume and lab infrastructure before specifying a unit.
- Capacity: interior volume (here 22 cu.ft. / 626 L) and rack count determine how many samples you can store; size to current load plus future growth.
- Temperature range: confirm the unit reaches your required setpoint — this model holds 0°C to −40°C, suiting samples that do not need ultra-low −80°C storage.
- Control type: a digital dual-display controller lets technicians verify set and actual chamber temperature at a glance, improving documentation and QC.
- Voltage and power: match the freezer to available circuits; this model supports 115V, 208V, 230V, and 220V single-phase configurations.
- Footprint and weight: verify exterior dimensions (43" × 37" × 79.5") and floor loading (975 lbs) against your lab layout and access routes.
- Safety and alarms: battery-backed audible/visual alarms and remote relay contacts protect samples during power or mechanical failures.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 22 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 626 L / 22 cu.ft. |
| Rack Capacity | 25 racks |
| Shelving | 4 adjustable shelves (5 compartments) |
| Interior Dimensions | 28.5" × 26" × 51.25" (72 × 66 × 130 cm) |
| Exterior Dimensions | 43" × 37" × 79.5" (109 × 93 × 201 cm) |
| Temperature Control System | Digital control with two displays — one shows the set temperature, the other the actual chamber temperature |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Condenser | Air-cooled; no liquid coolant required |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | Chart recorder; CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930135 |
| Shipping Weight | 975 lbs |
| Dimensions (L × W × H) | 46 × 43 × 86 in |
| Component Size | 22 CF |
| Other Certification | UL Listed |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| LTF-601U | EA | EA |
Documentation
More in This Series
- Chest Style Low Temperature Freezers 0°C To -40°C, 2 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 14 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 17 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 21 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 27 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 18 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 22 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 25 cu.ft., Manual Defrost
- Platinum Upright Style Low Temperature Freezers 0°C To -40°C, 28 cu.ft., Manual Defrost
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every LTF601U ships as a genuine factory unit backed by the manufacturer warranty. Order directly and let our lab-equipment specialists handle any spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine units with full manufacturer warranty coverage.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated support for configuration, voltage, and accessory questions.
- Factory-tested quality: each freezer passes a 7-day performance test before shipment.
Frequently Asked Questions
What temperature range does the LTF601U cover?
The LTF601U operates from 0°C down to −40°C. A single-stage refrigeration system with one hermetic compressor maintains the setpoint, and the unit holds its low temperature even in warm ambient conditions up to +30°C.
What is the storage capacity and how large is the unit?
The freezer provides 22 cu.ft. (626 L) of interior capacity with four adjustable shelves forming five compartments and room for up to 25 racks. Interior dimensions are 28.5" × 26" × 51.25", and exterior dimensions are 43" × 37" × 79.5".
What power supply does the LTF601U require?
The LTF601U supports 115V, 208V, and 230V at 60 Hz, plus 220V at 50/60 Hz, all single-phase. Confirm the configuration that matches your available lab circuit when ordering.
What materials is the freezer built from?
The chamber is 14-gauge zinc-coated galvanized steel, and the exterior is 16-gauge steel finished in powder-coated cool gray. This construction supports durable, long-term laboratory use.
Does this freezer require manual defrost?
Yes, the LTF601U is a manual-defrost unit. Manual defrost avoids automatic defrost-cycle temperature swings, which helps protect temperature-sensitive samples during storage.
What alarm and monitoring features are included?
A battery-operated alarm emits audible and visual signals on mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, and a battery test switch. A relay is provided for remote alarm hook-up, and a 1/2" access port accepts external probes or chart recorders.
