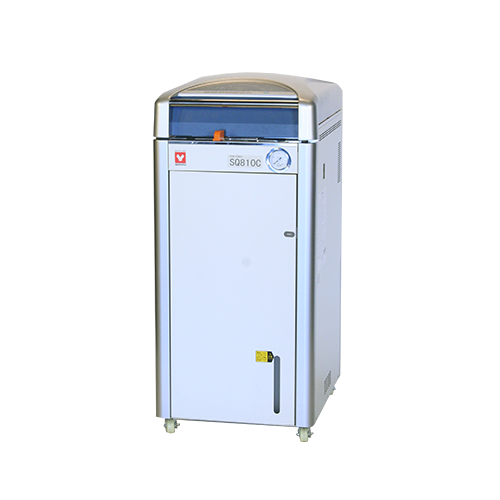

Large Capacity Sterilizer Without Dryer 80L Overview
The Large Capacity Sterilizer Without Dryer 80L (model SQ810C) from Yamato Scientific is an 80 L steam sterilizer with an operating temperature range of 45 to 135°C. LabSupplies.com, an authorized dealer, supplies this autoclave for routine sterilization, culture medium preparation, liquid processing, and medium melting.
Construction pairs a SUS304 stainless steel chamber and cover with an exterior of bonderizing steel plate finished in baked melamine resin and ABS resin. Top loading simplifies sample handling, while an integrated cooling fan shortens cool-down time. Custom programs store repeatable cycle settings for recurring protocols.
Power runs on 220V. Footprint measures 33 × 25 × 55 inches, and the unit weighs 365 lbs with mobility provided by wheels. Documentation includes CE certification plus ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management-system credentials. Timer start and pre-heating features support scheduled, efficient daily operation.
Key Features
- 80 L capacity: large chamber sized for high-throughput sterilization loads.
- 45 to 135°C range: maximum 135°C temperature suits protein modification and demanding cycles.
- Top-loading design: ergonomic loading and easy handling of samples.
- Custom programs: saved settings allow repeated, consistent cycle execution.
- Timer start and pre-heating: schedule cycles and warm the chamber for time-efficient operation.
- Cooling fan and wheels: faster cool-down plus mobility for flexible lab placement.
How to Choose the Right Sterilizer / Autoclave
Selecting a steam sterilizer comes down to matching chamber capacity, temperature performance, and site power to your workflow. Use the criteria below to confirm the SQ810C fits your lab.
- Capacity: chamber volume determines load throughput; the 80 L size supports larger batches of glassware, media, and liquids.
- Temperature range: a 45 to 135°C span covers liquids, culture media, and protein-modification work that requires the upper limit.
- Control type: programmable storage matters when teams repeat defined cycles and need consistent, recallable settings.
- Voltage: confirm available circuits; this unit requires 220V power.
- Footprint and mobility: verify bench or floor space against the 33 × 25 × 55 inch dimensions; wheels aid repositioning.
- Dryer option: this configuration ships without a drying function, which affects post-cycle handling of loads.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 80 L |
| Voltage | 220V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 45 to 135°C *1 |
| Max. Operating Pressure | 0.255 MPa |
| Temperature Control System | PID control by microprocessor |
| Heater | 1000 W × 2 |
| Lid | Manual upward-opening with safety interlock |
| Operation Modes | Instrument, liquid, sterilize-and-keep-warm, melt-and-keep-warm, and custom-programmed courses |
| Safety Devices | Sensor-failure detection; SSR short-circuit; broken-heater detection; idle-heating prevention; drain-bottle absence alarm; lid-lock failure detection; pressure relief valve (0.255 MPa) |
| Cooling | Axial fan motor with forced cooling |
| Material | Bonderizing steel plate baked with melamine resin coating, ABS resin (exterior) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059927227 |
| Shipping Weight | 365 lbs |
| Dimensions (L × W × H) | 33 × 25 × 55 in |
| Component Size | 80 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SQ-810C | EA | EA |
Documentation
- Product Brochure
- ISO 9001
- ISO 14001
- ISO 45001
- CE Certification
- Yamato Scientific Official Product Page
More in This Series
- Compact Sterilizer 18L
- Compact Sterilizer 24L
- Compact Sterilizer 30L
- Sterilizer Without Dryer 32L
- Sterilizer Without Dryer 47L
- Sterilizer Without Dryer 47L 200
- Large Capacity Sterilizer Without Dryer 50L
- Large Capacity Sterilizer Without Dryer 110L
- Sterilizer With Dryer 20L
- Sterilizer With Dryer 32L
- Sterilizer With Dryer 47L
- Large Capacity Sterilizer With Dryer 50L
- Large Capacity Sterilizer With Dryer 80L
- Natural Convection Dry Sterilizer 99L
- Natural Convection Dry Sterilizer 162L
- Forced Convection Dry Sterilizer 300L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every SQ810C ships as a genuine factory unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists are available for specification questions.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for spec and configuration questions.
- Documentation on file: CE and ISO 9001/14001/45001 credentials available.
Frequently Asked Questions
What is the operating temperature range of the SQ810C?
The SQ810C operates from 45 to 135°C. The 135°C maximum supports protein modification along with standard sterilization, culture medium sterilization, liquid processing, and medium melting.
What is the chamber capacity and overall footprint?
Chamber capacity is 80 L. The unit measures 33 × 25 × 55 inches (L × W × H) and weighs 365 lbs, with wheels for mobility.
What voltage does this sterilizer require?
The SQ810C requires 220V power. Confirm your facility has an appropriate 220V circuit available before installation.
What materials are used in the chamber and exterior?
The chamber and cover are SUS304 stainless steel. The exterior uses bonderizing steel plate baked with melamine resin coating along with ABS resin.
Does this model include a drying function?
No, this configuration is supplied without a dryer. A cooling fan is included to shorten cool-down time after each cycle.
Can cycle settings be saved for repeated use?
Yes, custom programs can be saved and recalled for repeated runs. Timer start and pre-heating features also support scheduled, time-efficient operation.
