Large Capacity Sterilizer Without Dryer 110L Overview

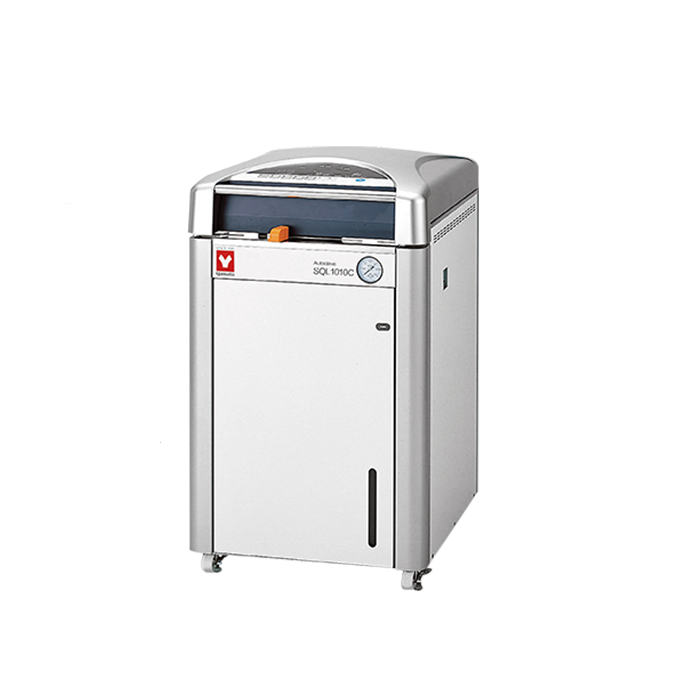

The Large Capacity Sterilizer Without Dryer 110L (model SQL1010C) is a top-loading steam autoclave from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. With a 110 L chamber and an operating range of 45 to 135°C, this unit handles routine instrument sterilization, culture medium preparation, liquid cycles, and medium melting.
Construction pairs a stainless steel SUS304 chamber and cover with a bonderizing steel-plate body finished in baked melamine resin and ABS resin housing. Top loading simplifies sample handling, while an integrated cooling fan shortens cool-down between cycles. Programmable cycles let technicians save custom routines for repeatable runs.
Power is supplied through a 220V connection. Mounted on casters, the unit measures 37 × 32 × 55 in and weighs 492 lbs, so it relocates within a lab without a fixed install. Manufacturing follows ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management systems, and units ship from USA inventory.
Key Features
- 110 L top-loading chamber: ergonomic top access simplifies loading and handling of large or numerous samples.
- 45 to 135°C range: maximum 135°C supports protein-modification work alongside standard sterilization.
- Multi-mode operation: manages routine sterilization, culture-medium and liquid cycles, and medium melting from simple settings.
- Programmable cycles: custom programs save for repeated, repeatable use.
- Timer start and pre-heating: schedule cycles and pre-warm the chamber to use lab time efficiently.
- Cooling fan and casters: built-in fan shortens cool-down, and wheels make the unit mobile.
How to Choose the Right Sterilizer / Autoclave
Matching a steam sterilizer to your workflow comes down to chamber volume, achievable temperature, control flexibility, and the realities of your facility's power and floor space. Weigh these axes against your highest-throughput cycle.
- Capacity: a 110 L chamber suits high-volume loads and large media batches; size the chamber to your busiest run, not the average.
- Temperature range: a 45 to 135°C span covers liquid cycles, medium melting, and protein-modification temperatures in one unit.
- Control type: programmable cycle storage saves recurring routines and reduces setup error on repeat runs.
- Voltage: confirm a 220V circuit is available at the install point before specifying.
- Footprint and mobility: verify the 37 × 32 × 55 in envelope and 492 lb weight fit your floor; casters allow repositioning.
- Workflow features: timer start, pre-heating, and a cooling fan affect how much sterilizer time you reclaim each day.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 110 L |
| Voltage | 220V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 45 to 135°C *1 |
| Max. Operating Pressure | 0.255 MPa |
| Temperature Control System | PID control by microprocessor |
| Heater | 2000 W × 2 |
| Lid | Manual upward-opening with safety interlock |
| Operation Modes | Pre-heating, heat-retention, melting, instrument, liquid, and custom-programmed courses |
| Safety Devices | Sensor-failure detection; SSR short-circuit; broken-heater detection; idle-heating prevention; drain-bottle absence alarm; lid-lock failure detection; pressure relief valve (0.255 MPa) |
| Cooling | Axial fan motor with forced cooling |
| Material | Bonderizing steel plate baked with melamine resin coating, ABS resin (outer) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059930791 |
| Shipping Weight | 492 lbs |
| Dimensions (L × W × H) | 37 × 32 × 55 in |
| Component Size | 110 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SQL-1010C | EA | EA |
Documentation
More in This Series
- Large Capacity Sterilizer With Dryer 80L
- Large Capacity Sterilizer With Dryer 50L
- Large Capacity Sterilizer Without Dryer 80L
- Large Capacity Sterilizer Without Dryer 50L
- Sterilizer Without Dryer 47L
- Sterilizer Without Dryer 47L 200
View all Laboratory Autoclaves & Sterilizers →
Why Buy From LabSupplies.com
LabSupplies.com supplies the Yamato Scientific SQL1010C as an authorized dealer, so every unit is a genuine sterilizer backed by the manufacturer warranty. Order directly and let our lab-equipment specialists confirm any specification before you commit.
- Authorized Yamato Scientific dealer — genuine unit with manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Dedicated lab-equipment specialists available for specification questions.
Frequently Asked Questions
What is the temperature range of the SQL1010C sterilizer?
The SQL1010C operates from 45 to 135°C. Its 135°C maximum supports protein-modification work in addition to standard instrument and media sterilization.
How large is the chamber and the unit's footprint?
The chamber holds 110 L. The cabinet measures 37 × 32 × 55 in (L×W×H) and weighs 492 lbs, and it rolls on casters for repositioning.
What voltage does the SQL1010C require?
The SQL1010C runs on 220V. Confirm a compatible 220V circuit is available at the installation point before ordering.
What materials are used in the chamber and housing?
The chamber and cover are stainless steel SUS304. The body uses bonderizing steel plate with a baked melamine resin coating, and the outer housing is ABS resin.
Can the unit store custom sterilization programs?
Yes. Custom programs save for repeated use, and the sterilizer also offers timer start and pre-heating to schedule and streamline cycles.
Does this 110L sterilizer include a drying function?
No. This model is configured without a dryer. It does include an integrated cooling fan to shorten cool-down time between cycles.
