Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 360°C Overview

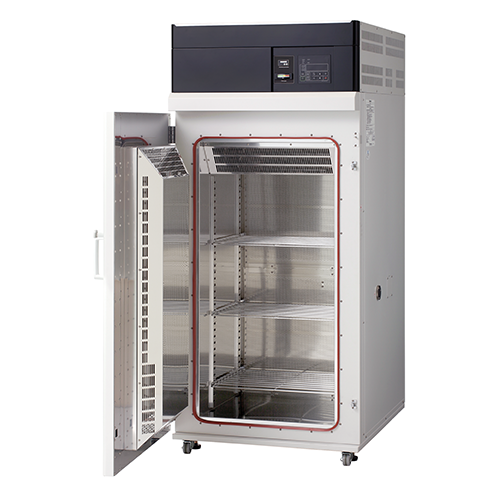

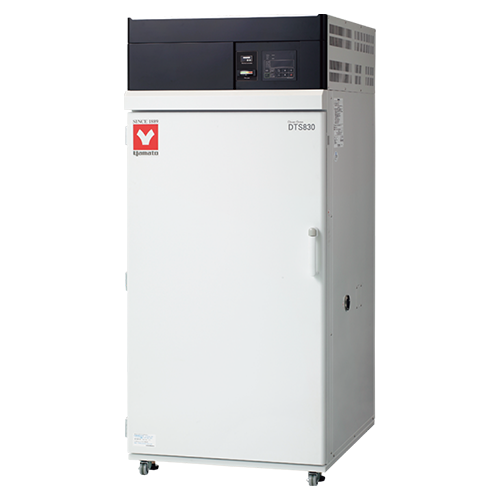

The Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 360°C (model DTS830) is a Class 100 forced-convection clean oven from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This unit delivers 327 liters of cleanroom-grade workspace across an operating range of ambient +30°C to 360°C.
Forced circulation with rear exhaust maintains stable chamber cleanliness during heating. Interior surfaces use stainless steel, while the exterior is chrome-free electrogalvanized carbon steel finished with a chemical-proof baked-on coating. A 99-step, 99-pattern program controller with repeat function governs each thermal cycle.
Operation runs on 220V three-phase power, suiting facilities with industrial electrical service. Footprint measures 53 × 41 × 86 inches, and the oven weighs 1,022 lbs. Built in Japan, the unit ships under ISO 9001:2015 and ISO 14001:2015 manufacturing certifications.
Key Features
- Class 100 cleanliness: forced convection with rear exhaust holds stable cleanliness throughout the 327L chamber.
- Programmable control: stores up to 99 steps across 99 patterns with a repeat function for recurring thermal cycles.
- Energy monitoring: control panel displays power consumption, CO2 emissions, and heater manipulated variables.
- Improved panel usability: redesigned control panel offers better visibility and operability.
- Expandable options: supports recorder, manual/auto damper, N2 gas introducer with flow meter, and emergency switch.
- Space-saving design: compact footprint paired with a large 327L working volume.
How to Choose the Right Clean Oven
Selecting a clean oven means matching chamber size, cleanliness class, and thermal range to your process while confirming the facility can support the unit. Weigh the criteria below against your workflow.
- Capacity: the 327L chamber suits larger batch loads; size the volume to your throughput and tray layout.
- Temperature range: an ambient +30°C to 360°C window covers drying, baking, and depyrogenation tasks.
- Cleanliness class: Class 100 forced convection protects sensitive components from particulate contamination.
- Control type: a 99-step, 99-pattern programmable controller benefits repeatable multi-stage cycles.
- Voltage and power: 220V three-phase service is required, so verify site electrical capacity.
- Footprint and weight: at 53 × 41 × 86 inches and 1,022 lbs, confirm floor loading and access clearance.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 327 L |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced convection |
| Clean Level | Class 100 (at stable temperature) |
| Filter | Heat-resistant HEPA filter (>99.97% at 0.3 µm) |
| Temperature Control System | PID-V control |
| Interior Material | Stainless steel |
| Operating Temperature Range | ambient +30 to 360°C *1 |
| Material | Chrome free electrogalvanized carbon steel, sheet coated w/chemical-proof baked-on finish (exterior) Stainless steel (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926947 |
| Shipping Weight | 1022 lbs |
| Dimensions (L × W × H) | 53 × 41 × 86 in |
| Component Size | 327 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DTS-830 | EA | EA |
Documentation
More in This Series
- Clean Oven 91L 3 Phase
- Clean Oven 216L 3 Phase
- Clean Oven 91L 3 Phase
- Clean Oven 216L 3 Phase
- Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 260°C
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DTS830 ships as a genuine unit backed by the manufacturer warranty. Our lab-equipment specialists can answer spec questions before you order.
- Authorized Yamato dealer: genuine units with full manufacturer warranty.
- In stock: ready to process and ship from USA inventory.
- Ships from USA: domestic fulfillment shortens lead time.
- Specialist support: dedicated lab-equipment team for configuration and spec guidance.
Frequently Asked Questions
What is the operating temperature range of the Yamato DTS830 clean oven?
The DTS830 operates from ambient +30°C to 360°C. This range supports high-temperature drying, baking, and depyrogenation workflows that require Class 100 cleanliness.
What is the chamber capacity and footprint of the DTS830?
Chamber capacity is 327 liters. External dimensions measure 53 × 41 × 86 inches, and the unit weighs 1,022 lbs, so confirm floor loading and doorway clearance before installation.
What electrical service does the DTS830 require?
The DTS830 runs on 220V three-phase power. Facilities should verify three-phase service availability at the install location before ordering.
What materials are used in the DTS830 chamber and exterior?
Interior surfaces are stainless steel. The exterior is chrome-free electrogalvanized carbon steel coated with a chemical-proof baked-on finish.
Does the DTS830 support programmable temperature cycles?
Yes, the controller stores up to 99 steps across 99 patterns with a repeat function. Its panel also displays power consumption, CO2 emissions, and heater manipulated variables.
Where is the DTS830 manufactured and is it certified?
The DTS830 is manufactured in Japan by Yamato Scientific. Production carries ISO 9001:2015 and ISO 14001:2015 certifications.
