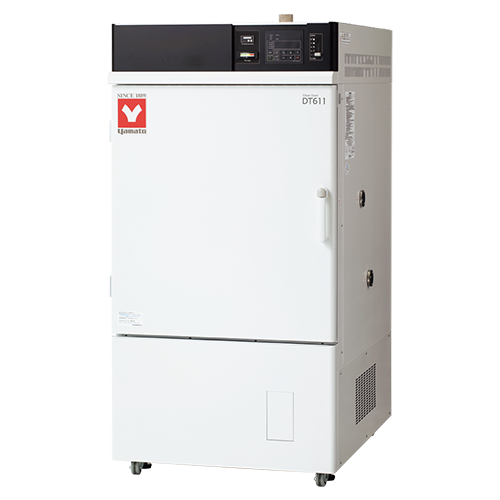

Clean Oven 216L 3 Phase Overview
The Clean Oven 216L 3 Phase (Yamato Scientific DT611) is a 216 L forced-convection clean oven engineered for dust-free thermal testing, with an operating range of ambient +30 to 360°C. Built to Class 100 cleanliness, this unit serves labs that require particle-controlled drying and curing. LabSupplies.com, authorized dealer, ships genuine Yamato Scientific equipment.
Construction pairs a chrome-free electrogalvanized carbon steel exterior, finished in a chemical-proof baked-on coating, with a stainless steel interior chamber. A HEPA filter maintains the clean-air environment, and a three-color indicator signals filter replacement timing so technicians can plan maintenance before performance degrades.
The DT611 runs on 220V 3-phase power and includes a phase-reversal relay that detects incorrect wiring at installation. Anti-fouling casters resist wheel contamination during transport. Measuring 58 × 46 × 82 inches and weighing 1,012 lbs, the oven is manufactured in Japan and backed by ISO 9001:2015 and ISO 14001:2015 certified production.
Key Features
- Class 100 clean environment: forced convection with HEPA filtration supports dust-free temperature testing in particle-sensitive workflows.
- V type controller: improves visibility and operability, displaying power consumption, CO2 emissions, and heater manipulated variables on the control panel.
- Three-color HEPA indicator: shows filter replacement timing at a glance for predictable maintenance scheduling.
- Phase-reversal relay: detects incorrect power source at installation, adding safety on the 220V 3-phase circuit.
- Anti-fouling casters: prevent wheel contamination during transportation between cleanroom areas.
- Larger φ33mm cable port: eases routing of thermocouples and sample-monitoring wiring into the chamber.
How to Choose the Right Clean Oven
Clean oven selection turns on chamber size, thermal ceiling, site power, and the cleanliness class your process demands. Match each axis to your samples and facility .
- Capacity: a 216 L chamber suits batch drying and curing of multiple parts or trays; size the volume to your largest typical load.
- Temperature range: an ambient +30 to 360°C ceiling covers most curing, baking, and bake-out protocols; confirm your highest setpoint sits within range.
- Cleanliness class: Class 100 with HEPA filtration matters when particle contamination would invalidate results or damage components.
- Voltage and power: verify your facility supplies 220V 3-phase before ordering, since single-phase sites need a different configuration.
- Footprint and mobility: confirm the 58 × 46 × 82 inch envelope and 1,012 lb weight fit your floor plan and load path; casters aid placement.
- Safety features: phase-reversal detection guards against miswiring at installation, a priority for shared multi-user labs.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 216 L |
| Max Temperature | 360°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced convection |
| Temperature Accuracy | ±0.3°C (at 360°C) *2 |
| Temperature Fluctuation | ±0.5°C (at 360°C) |
| Temperature Distribution | ±4.0°C (at 360°C) *2 |
| Clean Level | Class 100 (at stable temperature) |
| Filter | Heat-resistant HEPA filter (>99.97% at 0.3 µm) |
| Temperature Control System | PID-V control |
| Heater | Stainless steel pipe heater |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass wool |
| Operating Temperature Range | ambient +30 to 360°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Stainless steel sheet metal (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926923 |
| Shipping Weight | 1012 lbs |
| Dimensions (L × W × H) | 58 × 46 × 82 in |
| Component Size | 216 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DT-611 | EA | EA |
Documentation
More in This Series
- Clean Oven 91L 3 Phase
- Clean Oven 216L 3 Phase
- Clean Oven 91L 3 Phase
- Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 260°C
- Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 360°C
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DT611 ships as a genuine unit with manufacturer warranty intact. Order directly online and our lab-equipment specialists are available for spec and configuration questions.
- Authorized Yamato Scientific dealer: genuine equipment backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for application and specification questions.
Frequently Asked Questions
What is the temperature range of the Yamato DT611 clean oven?
The DT611 operates from ambient +30 to 360°C. This forced-convection range supports curing, baking, drying, and bake-out protocols within a Class 100 clean environment.
What is the chamber capacity and external footprint?
The DT611 offers a 216 L chamber. External dimensions are 58 × 46 × 82 inches (L × W × H) and the unit weighs 1,012 lbs, so confirm floor space and load path before delivery.
What power supply does the DT611 require?
The DT611 requires 220V 3-phase power. A built-in phase-reversal relay detects incorrect wiring at installation, so verify your facility provides the correct 3-phase circuit before ordering.
What materials are used in construction?
The interior chamber is stainless steel sheet metal. The exterior is chrome-free electrogalvanized carbon steel finished in a chemical-proof, baked-on coating for durability in lab settings.
How does the oven maintain a clean environment and signal filter service?
The DT611 uses HEPA filtration with forced convection to maintain a Class 100 clean environment. A three-color indicator shows HEPA filter replacement timing for predictable maintenance.
Where is the DT611 manufactured and is it certified?
The DT611 is manufactured in Japan. Production is backed by ISO 9001:2015 quality and ISO 14001:2015 environmental management certifications.
