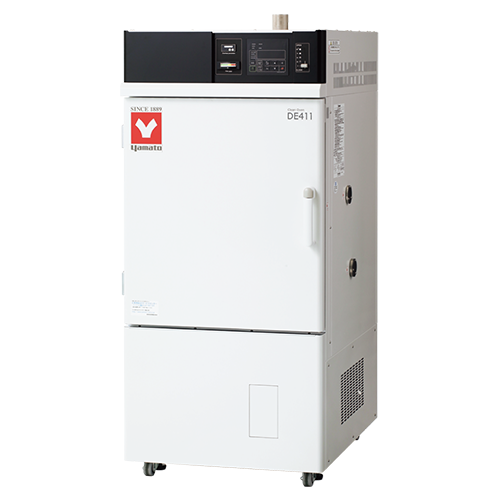

Clean Oven 91L 3 Phase Overview
The Clean Oven 91L 3 Phase (model DE411) is a forced-convection cleanroom oven from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Engineered for Class 100 temperature testing in dust-free environments, it delivers a working range of ambient +30 to 260°C across a 91-liter chamber.
Interior surfaces use stainless steel sheet metal, while the exterior is chrome-free electrogalvanized carbon steel finished in a chemical-proof, baked-on coating. A V-type controller improves visibility and operability, displaying power consumption, CO2 emissions, and heater manipulated variables on the panel. HEPA filter replacement timing reads through a three-color indicator.
Power draws from a 220V 3-phase supply, with a phase-reversal relay that flags incorrect wiring at installation. Manufactured in Japan, the unit weighs 750 lbs and measures 49 × 39 × 77 inches. Yamato backs production with ISO 9001:2015 and ISO 14001:2015 certification.
Key Features
- Class 100 forced convection: dust-free chamber suited to temperature testing of sensitive components.
- V-type controller: improved visibility and operability, with power consumption, CO2 emissions, and heater manipulated variables shown on the panel.
- Three-color HEPA indicator: filter replacement timing is read at a glance.
- Phase-reversal relay: detects an incorrect power source at installation for added wiring safety.
- Anti-fouling casters: resist wheel contamination during transport between work areas.
- φ33mm cable port: larger pass-through accommodates more instrumentation wiring.
How to Choose the Right Clean Oven
Selecting a clean oven means matching chamber size, thermal range, control style, and site power to your testing protocol. Use the criteria below to confirm the DE411 fits your workflow.
- Chamber capacity: the 91-liter interior sets how many parts or sample trays you can process per cycle.
- Temperature range: an ambient +30 to 260°C span covers most curing, drying, and heat-soak tests; verify your protocol stays within it.
- Control type: the V-type controller adds on-panel power and CO2 monitoring, useful for energy-aware facilities.
- Voltage and phase: this unit requires a 220V 3-phase circuit, so confirm your installation point supplies three-phase power.
- Footprint and weight: at 49 × 39 × 77 inches and 750 lbs, plan floor space and a delivery path with adequate clearance.
- Safety features: the phase-reversal relay and three-color HEPA indicator support correct setup and maintenance scheduling.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 91 L |
| Max Temperature | 260°C |
| Voltage | 220V |
| Power | 3 Phase |
| Circulation Method | Forced convection |
| Temperature Accuracy | ±0.3°C (at 260°C) *2 |
| Temperature Fluctuation | ±0.5°C (at 260°C) |
| Temperature Distribution | ±2.5°C (at 260°C) *2 |
| Clean Level | Class 100 (at stable temperature) |
| Filter | Heat-resistant HEPA filter (>99.97% at 0.3 µm) |
| Temperature Control System | PID-V control |
| Heater | Stainless steel pipe heater |
| Interior Material | Stainless steel |
| Exterior Material | Cold-rolled steel plate with melamine resin baked finish |
| Heat Insulation | Glass wool |
| Operating Temperature Range | ambient +30 to 260°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Stainless steel sheet metal (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926893 |
| Shipping Weight | 750 lbs |
| Dimensions (L × W × H) | 49 × 39 × 77 in |
| Component Size | 91 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DE-411 | EA | EA |
Documentation
More in This Series
- Clean Oven 216L 3 Phase
- Clean Oven 91L 3 Phase
- Clean Oven 216L 3 Phase
- Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 260°C
- Large Capacity Clean Oven 327L 3 Phase. Temp Range From +30°C To 360°C
Why Buy From LabSupplies.com
Order the DE411 directly from LabSupplies.com and receive a genuine Yamato Scientific unit ready for installation. Our team supports the purchase from spec questions through delivery.
- Authorized Yamato Scientific dealer: genuine equipment backed by full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated support answers technical questions before you buy.
Frequently Asked Questions
What is the maximum operating temperature of the DE411?
The DE411 reaches a maximum of 260°C. Its full working range runs from ambient +30°C up to 260°C, covering common curing, drying, and heat-soak protocols.
What is the chamber capacity and overall footprint?
Chamber capacity is 91 liters. Externally the unit measures 49 × 39 × 77 inches and weighs 750 lbs, so plan floor space and a clear delivery path accordingly.
What power supply does this clean oven require?
The DE411 requires a 220V 3-phase supply. A built-in phase-reversal relay detects an incorrect power source at installation, helping confirm correct wiring.
What cleanliness class does this oven maintain?
It maintains a Class 100 environment using forced convection. Dust-free conditions make it suitable for temperature testing of clean or sensitive components.
What materials are used in the chamber and exterior?
The interior is stainless steel sheet metal. The exterior is chrome-free electrogalvanized carbon steel finished in a chemical-proof, baked-on coating.
Where is the DE411 manufactured and is it certified?
The DE411 is manufactured in Japan. Yamato Scientific production carries ISO 9001:2015 and ISO 14001:2015 certification.
