Forced Convection Oven Programmable Energy Saving 300L Overview

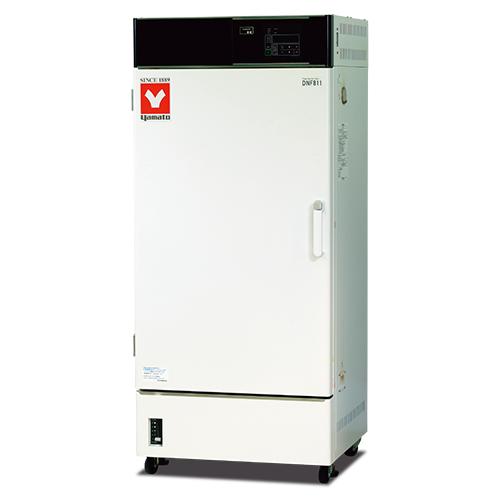

Forced Convection Oven Programmable Energy Saving 300L (DNF811) is a programmable mechanical convection oven from Yamato Scientific, offered by LabSupplies.com as an authorized dealer. The 300 L chamber operates from ambient +15 °C up to 260 °C. Energy-saving programming reduces power consumption across long heating and drying cycles.
Chamber interior uses stainless steel plate, while the exterior is chrome-free electrogalvanized carbon steel sheet coated with a chemical-proof baking finish. Tight heat sealing and insulation stabilize internal temperature. Dust tightness limits particle entry, protecting sensitive samples during extended runs.
Power input is 220V, and the unit arrives ready to run on that supply. Footprint measures 32 × 32 × 73 inches at a 330 lb shipping weight. Manufactured in Japan, the oven is backed by Yamato Scientific's ISO 9001:2015 and ISO 14001:2015 certifications.
Key Features
- Energy-saving program: dedicated programming reduces power consumption significantly during operation.
- 99-step programming: supports repeat operation, auto start, auto stop, and quick auto stop functions.
- 10-stage air velocity control: airflow is set digitally through the controller for precise circulation.
- Adjustable front damper: the chamber-front damper position can be tuned to optimize exhaust and uniformity.
- Sealed, insulated chamber: superior heat tightness and dust tightness shield samples from drift and contamination.
- Fluorescent display: interactive input method paired with a calibration off-set function.
How to Choose the Right Convection Oven
Selecting a forced convection oven means matching chamber volume, temperature ceiling, and control sophistication to your protocol and available bench power.
- Capacity: chamber volume determines batch size; the DNF811 offers 300 L for larger or multiple-load workflows.
- Temperature range: confirm the ceiling fits your process — this unit reaches ambient +15 °C to 260 °C.
- Control type: programmable multi-step control suits repeatable, multi-stage cycles, while analog suits simple holds.
- Voltage: verify circuit availability; the DNF811 runs on a 220V supply.
- Footprint and weight: plan placement around the 32 × 32 × 73 inch envelope and 330 lb mass.
- Airflow management: adjustable air velocity and dampers help dial in uniformity for delicate samples.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 300 L |
| Max Temperature | 260°C |
| Voltage | 220V |
| Temperature Control System | PID control by microcomputer |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Special Features | Ecological energy-saving design |
| Circulation Method | Forced convection |
| Operating Temperature Range | ambient +15 to 260°C *1 |
| Material | Chrome free electrogalvanized carbon steel sheet coated w/ chemical-proof baking finish (exterior) Stainless steel plate (interior) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059926657 |
| Shipping Weight | 330 lbs |
| Dimensions (L × W × H) | 32 × 32 × 73 in |
| Component Size | 300 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DNF-811 | EA | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
LabSupplies.com supplies the Yamato Scientific DNF811 as an authorized dealer, so every order is a genuine unit covered by the manufacturer warranty. Orders ship directly from USA inventory.
- Authorized Yamato Scientific dealer: genuine equipment backed by full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: dedicated team available for specification and configuration questions.
Frequently Asked Questions
What temperature range does the DNF811 cover?
The DNF811 operates from ambient +15 °C up to a maximum of 260 °C. This forced convection design holds setpoints across that span for drying, curing, and constant-temperature work.
How large is the chamber and what is the overall footprint?
Chamber capacity is 300 L. The oven measures 32 × 32 × 73 inches and weighs 330 lb, so plan floor space and handling accordingly.
What voltage does the DNF811 require?
The DNF811 runs on a 220V supply. Confirm a matching circuit is available at the install location before delivery.
What materials are used in the chamber construction?
Interior surfaces are stainless steel plate. The exterior is chrome-free electrogalvanized carbon steel sheet coated with a chemical-proof baking finish for durability.
Is the DNF811 programmable?
Yes. The oven includes 99-step program operation with repeat, auto start, auto stop, and quick auto stop functions, plus 10-stage digital air velocity control.
Where is the DNF811 manufactured and is it certified?
The DNF811 is manufactured in Japan. Yamato Scientific production is backed by ISO 9001:2015 and ISO 14001:2015 certifications.
