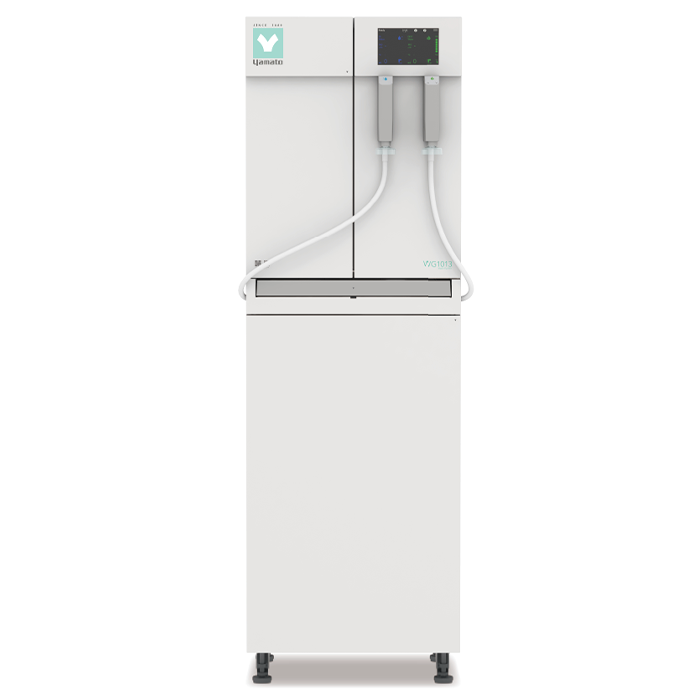

Distilled / Deionized Water Purification System ~5L/Hr. 100L Tank Single Phase With External Transformer Overview
The Distilled / Deionized Water Purification System ~5L/Hr. 100L Tank Single Phase With External Transformer (Yamato WG1013) is an Auto-Still large-capacity water purifier from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This system delivers roughly 5 liters per hour of purified water into a 100-liter storage tank.
Construction pairs a melamine resin baking finish over bonded steel plate with SUS 304 stainless steel internal plates. Purification runs through a three-stage sequence: ion exchange, then distillation, then filtration. Separate dispensers draw Type I deionized water and Type II distilled water, letting technicians pull the grade each protocol requires.
Operating on 220V single-phase power through an external transformer, the unit supports AC115V/AC220V at 50/60 Hz. A 28 × 30 × 80 inch footprint and 300-pound weight suit it to a dedicated equipment area. Yamato Scientific manufactures the system in Japan under ISO 9001:2015 and ISO 14001:2015 certification.
Key Features
- Continuous production: distilled water output of approximately 5 L/h into a large-capacity 100 L tank.
- Dual water grades: dispenses Type I (A4) deionized water and Type II (A4) distilled water.
- Three-stage purification: ion exchange, distillation, and filtration combined in one Auto-Still unit.
- Separate dispensers: independent deionized and distilled water dispensing points.
- Durable construction: SUS 304 stainless steel plates with a melamine resin baking finish over bonded steel exterior.
- Single-phase power: 220V operation through an external transformer, rated for AC115V/AC220V at 50/60 Hz.
How to Choose the Right Water Purification System
Matching a purifier to your lab means weighing throughput, water grade, and the power and space your facility can commit. Use these axes to confirm the WG1013 fits your workflow .
- Production rate: continuous output near 5 L/h supports labs that draw purified water steadily through the day rather than in small batches.
- Output grade: verify you need both Type I deionized and Type II distilled water; this unit dispenses each separately.
- Storage capacity: the 100 L tank buffers demand so technicians are not waiting on the purifier during peak use.
- Voltage and power: confirm your bench or service area can supply 220V single-phase through the included external transformer.
- Footprint and weight: the 28 × 30 × 80 inch, 300 lb chassis needs a dedicated floor or equipment area.
- Purification method: the ion exchange, distillation, and filtration sequence matches protocols that specify both deionized and distilled feedwater.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Auto-Still® large-capacity water purifier |
| Purification Method | Ion-exchange → distillation → filtration |
| Output Water | Deionized water (Type I / A4) and distilled water (Type II / A4) |
| Distilled Water Production | ~5 L/h, continuous |
| Distilled Water Tank | Large-capacity tank |
| Dispenser | Separate deionized and distilled water dispensing |
| Power Supply | AC115V / AC220V, 50/60 Hz |
| Material | Iron, bonded steel plate, melamine resin baking finish (exterior) Stainless steel plate SUS 304 (plates) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059933235 |
| Shipping Weight | 300 lbs |
| Dimensions (L × W × H) | 28 × 30 × 80 in |
| Component Size | 100 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| WG-1013 | EA | EA |
Documentation
More in This Series
- Distilled / Deionized Water Purification System ~1.8L/Hr. 20L Tank With External Transformer
- Distilled / Deionized Water Purification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Waterpurification System ~1.8L/Hr. 30L Tank With External Transformer
- Deionized Water Purification System 0.5~1.0L/Min 115
- Benchtop Or Wall Mount Base System, /60Hz
- Benchtop Or Wall Mount Base System, /50Hz
- Remote Dispense Configuration Base System, /60Hz
- Remote Dispense Configuration Base System, /50Hz
- Benchtop - With Uv Oxidation Lamp Installed, /60Hz
- Benchtop - With Uv Oxidation Lamp Installed, /50Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /60Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /50Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Benchtop - With Ultrafiltration Module, /60Hz
- Benchtop - With Ultrafiltration Module, /50Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /60Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /50Hz
- Benchtop - With Uv And Uf Installed, /60Hz
- Benchtop - With Uv And Uf Installed, /50Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /60Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /50Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /60Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /50Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /60Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /50Hz
- Direct Feed Option (Factory Installed)
- Wall Mount Bracket
- Dispensing Gun Option (Factory Installed)
- High Purity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
- High Purity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every WG1013 ships as a genuine factory unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists are ready to confirm specifications for your facility.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to process, no backorder wait.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Specialist support: dedicated lab-equipment staff answer spec and configuration questions.
Frequently Asked Questions
What is the water production rate of the WG1013?
The WG1013 produces approximately 5 liters per hour of distilled water on a continuous basis. Output feeds a large-capacity 100-liter storage tank, buffering steady lab demand.
What grades of water does this system produce?
It produces both Type I (A4) deionized water and Type II (A4) distilled water. Separate dispensers let technicians draw each grade independently for the protocol at hand.
What voltage and power does the WG1013 require?
This configuration runs on 220V single-phase power supplied through an external transformer. The unit is rated for AC115V/AC220V operation at 50/60 Hz.
What are the dimensions and weight?
The system measures 28 × 30 × 80 inches (L × W × H) and weighs 300 pounds. Plan for a dedicated floor or equipment area to accommodate the chassis.
What materials are used in construction?
Internal plates use SUS 304 stainless steel. The exterior is bonded steel plate finished with a melamine resin baking finish for durability.
Where is the WG1013 made and what certifications apply?
Yamato Scientific manufactures the system in Japan. Production operates under ISO 9001:2015 and ISO 14001:2015 certification.
