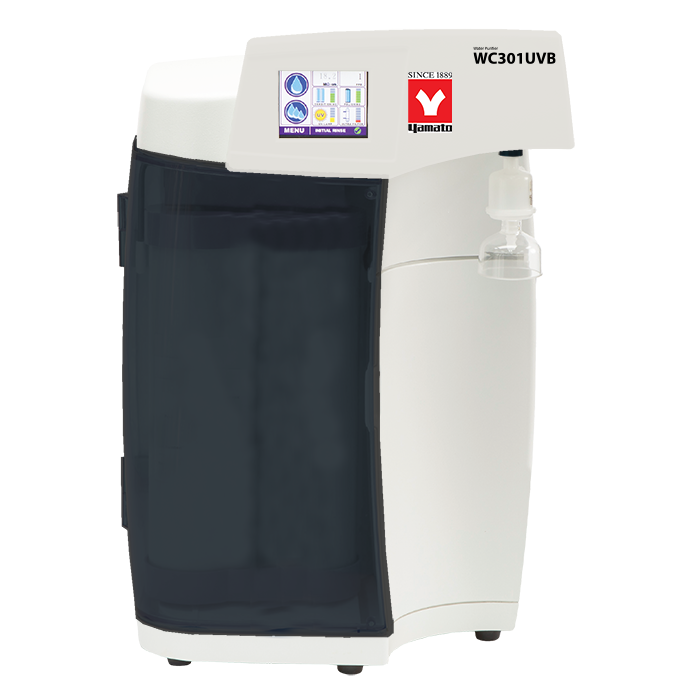

Benchtop - With Uv Oxidation Lamp And Toc Monitor /60Hz Overview
The Benchtop - With Uv Oxidation Lamp And Toc Monitor /60Hz (model WC301UVTB) is a Type I ultrapure water purification system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. Producing 18.2 MΩ·cm resistivity water with TOC below 5 ppb, this system targets organic and analytical chemistry workflows that demand consistently low-TOC ultrapure water.
Multi-stage purification combines conditioning and polishing cartridges with 185/254 nm UV oxidation for bacterial sterilization and TOC reduction, then finishes through a 0.2 µm final filter. Quick-change, no-tools cartridges carry premium ResinTech ion-exchange media. Real-time quality monitoring with leak detection protects both output integrity and the surrounding bench.
Powered at 120V/60Hz, the unit installs on a benchtop or wall and measures 21.6 × 14.7 × 14.4 inches. Shipping weight is 36.4 lbs. Made in the USA, it delivers typical flow of 2.5 LPM (0.67 GPM) from feed water below 20 µS/cm.
Key Features
- Type I ultrapure output: 18.2 MΩ·cm resistivity, TOC below 5 ppb, and bacteria under 1 cfu/ml for demanding analytical work.
- UV oxidation: dual-wavelength 185/254 nm lamp for bacterial sterilization and active TOC reduction.
- Integrated TOC monitor: on-board real-time water quality monitoring plus leak detection.
- 0.2 µm final filter: point-of-dispense filtration removes residual particulates and microorganisms.
- Quick-change cartridges: no-tools conditioning and polishing cartridges using premium ResinTech ion-exchange media.
- Flexible installation: benchtop or wall-mount configuration with a compact 21.6 × 14.7 × 14.4 inch footprint.
How to Choose the Right Water Purification System
Matching a purification system to your lab depends on the water grade your assays require and the bench or utility constraints you operate under. Weigh these axes before specifying a unit.
- Water quality grade: confirm you need Type I ultrapure at 18.2 MΩ·cm; analytical, organic, and trace-level chemistry require this resistivity rather than lower Type II or III grades.
- TOC control: verify whether your methods demand low total organic carbon; this model holds TOC below 5 ppb and includes an integrated monitor for real-time verification.
- Flow rate: typical 2.5 LPM (0.67 GPM) dispense supports routine sampling and reservoir fills without long waits.
- Feed water: the system requires feed water below 20 µS/cm, so check your pretreatment or RO source compatibility.
- Voltage and power: confirm 120V/60Hz availability at the install location.
- Footprint and mounting: the 21.6 × 14.7 × 14.4 inch chassis mounts on a bench or wall, fitting space-constrained labs.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | Type I ultrapure water purification system |
| Purification Process | Conditioning and polishing cartridges plus UV oxidation (185/254 nm) for bacteria sterilization and TOC reduction, with a 0.2 µm final filter |
| TOC | < 5 ppb |
| TOC Monitor | Integrated TOC monitor |
| Dispense Configuration | Benchtop or wall-mount |
| Power | 120V / 60 Hz |
| Application | Organic and analytical chemistry — ultrapure, analytical, low TOC |
| Water Quality | Type I ultrapure — 18.2 MΩ·cm resistivity |
| Bacteria | < 1 cfu/ml |
| Flow Rate | 2.5 LPM / 0.67 GPM (typical) |
| Feed Water Requirement | < 20 µS/cm |
| Final Filter | 0.2 micron |
| Monitoring | Real-time quality monitoring with leak detection |
| Cartridges | Quick-change, no-tools design; premium ResinTech ion-exchange media |
| Dimensions (H × W × D) | 21.6" × 14.7" × 14.4" (54.8 × 37 × 36.5 cm) in |
| Country of Origin | United States |
| GTIN (Barcode) | 797059929320 |
| Shipping Weight | 36.4 lbs |
| Dimensions (L × W × H) | 26.5 × 18.63 × 20.3 in |
| ISO 9001:2015 | Contact Customer Service |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| WC-301UVTB | EA | EA |
Documentation
More in This Series
- Distilled / Deionized Water Purification System ~1.8L/Hr. 20L Tank With External Transformer
- Distilled / Deionized Water Purification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Waterpurification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Water Purification System ~5L/Hr. 100L Tank Single Phase With External Transformer
- Deionized Water Purification System 0.5~1.0L/Min 115
- Benchtop Or Wall Mount Base System, /60Hz
- Benchtop Or Wall Mount Base System, /50Hz
- Remote Dispense Configuration Base System, /60Hz
- Remote Dispense Configuration Base System, /50Hz
- Benchtop - With Uv Oxidation Lamp Installed, /60Hz
- Benchtop - With Uv Oxidation Lamp Installed, /50Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /60Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /50Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Benchtop - With Ultrafiltration Module, /60Hz
- Benchtop - With Ultrafiltration Module, /50Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /60Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /50Hz
- Benchtop - With Uv And Uf Installed, /60Hz
- Benchtop - With Uv And Uf Installed, /50Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /60Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /50Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /60Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /50Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /60Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /50Hz
- Direct Feed Option (Factory Installed)
- Wall Mount Bracket
- Dispensing Gun Option (Factory Installed)
- High Purity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
- High Purity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
Why Buy From LabSupplies.com
LabSupplies.com supplies the WC301UVTB as a genuine Yamato Scientific unit, ready to ship directly to your lab. Order with confidence backed by manufacturer support and US-based fulfillment.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Made in the USA: domestically manufactured purification system.
- Lab-equipment specialists: dedicated team available for specification and compatibility questions.
Frequently Asked Questions
What water quality does the WC301UVTB produce?
The WC301UVTB produces Type I ultrapure water at 18.2 MΩ·cm resistivity, with TOC below 5 ppb and bacteria under 1 cfu/ml. UV oxidation and a 0.2 µm final filter support consistent ultrapure output for analytical and organic chemistry.
How does the UV oxidation lamp work in this system?
The UV oxidation lamp operates at dual wavelengths of 185 and 254 nm. The 254 nm output sterilizes bacteria while 185 nm drives photo-oxidation that reduces total organic carbon in the water stream.
What voltage and power does the WC301UVTB require?
The WC301UVTB runs on 120V / 60Hz single-phase power. Confirm a compatible outlet is available at your install location before deployment.
What are the dimensions and weight of the unit?
The unit measures 21.6 × 14.7 × 14.4 inches (54.8 × 37 × 36.5 cm) and ships at 36.4 lbs. It installs on a benchtop or as a wall-mount to save bench space.
What feed water does the system require?
Feed water must be below 20 µS/cm conductivity. The system delivers a typical flow rate of 2.5 LPM (0.67 GPM) when supplied with compatible pretreated or RO feed water.
How are the purification cartridges replaced?
Cartridges use a quick-change, no-tools design with premium ResinTech ion-exchange media. Conditioning and polishing cartridges swap quickly to minimize downtime during routine maintenance.
