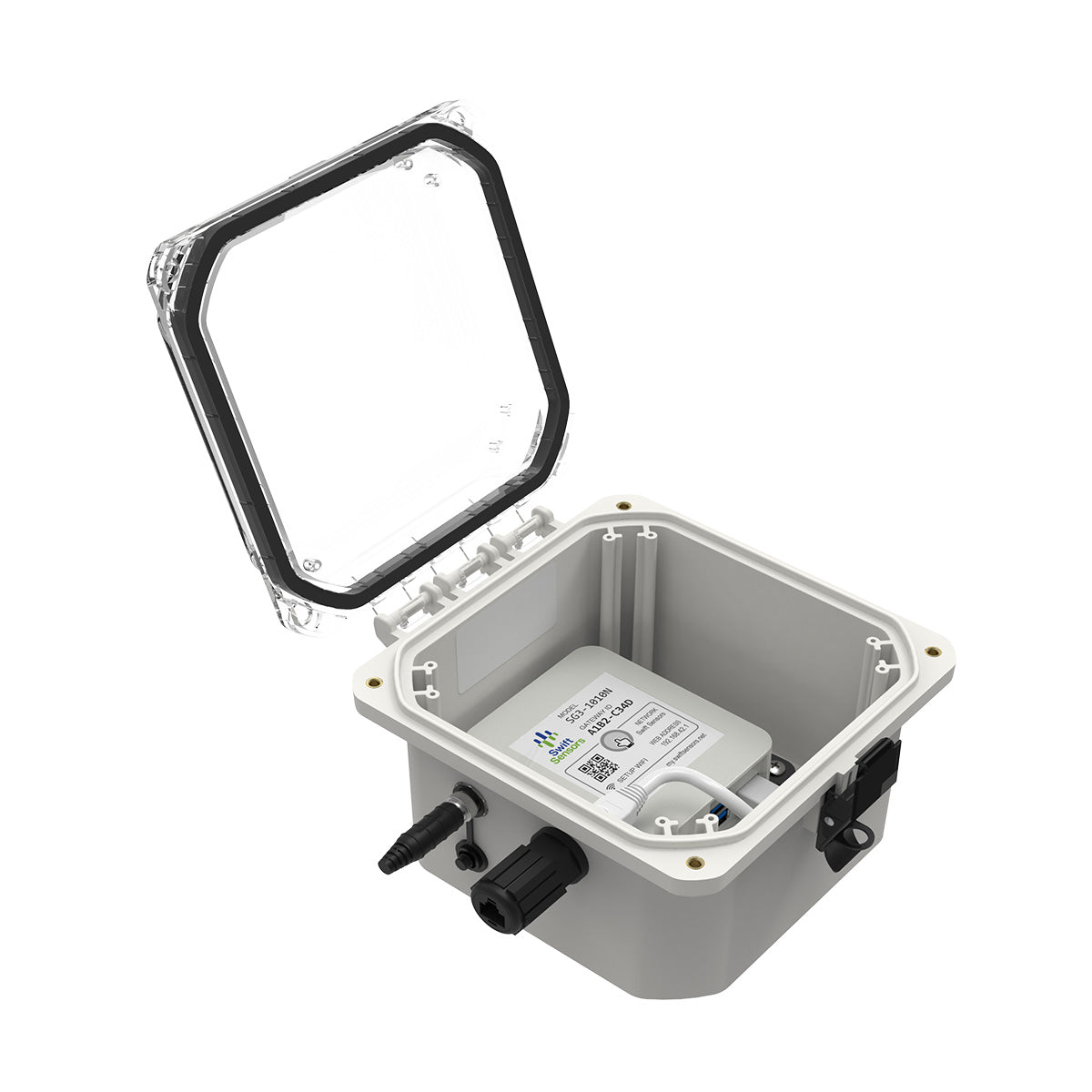

The Swift Sensors SG3-NEMA-1010-XR houses an extended-range SG3-1010-XR gateway inside an IP67 NEMA-rated enclosure, combining greater wireless coverage with rugged protection for demanding installations.
Typical applications
- Single-site and multi-site sensor networks
- Laboratories, healthcare, and facilities
- Manufacturing and cold storage
- Warehouses and data centers
- Enterprise IoT monitoring
Technical specifications
| Enclosure | IP67 NEMA-rated |
|---|---|
| Includes | SG3-1010-XR extended-range gateway |
| Connectivity | Wi-Fi, Ethernet, PoE |
| Sensor capacity | Up to 150 Series 3 sensors |
The hub of your Swift Sensors system
The gateway auto-detects every Swift Sensors sensor within range and immediately establishes secure, encrypted communication — no configuration required. It relays readings to the Swift Sensors Cloud, where the Swift Sensors Console lets you monitor live and historical data and configure SMS, email, and phone-call alerts from any device.
- Supports up to 150 Series 3 sensors per gateway.
- Flexible connectivity — Wi-Fi, Ethernet, or Power-over-Ethernet; add a Cellular Network Module for sites without network access.
- 256-bit AES encryption and ISO 17025 protocols end to end.
- Status-at-a-glance LED indicators for fast installation and diagnostics.
- Two-year warranty and satisfaction guarantee.
An active Swift Sensors Cloud Monitoring plan is required. LabSupplies.com provides system-design assistance and dedicated account service for laboratories, healthcare, and facility teams.
