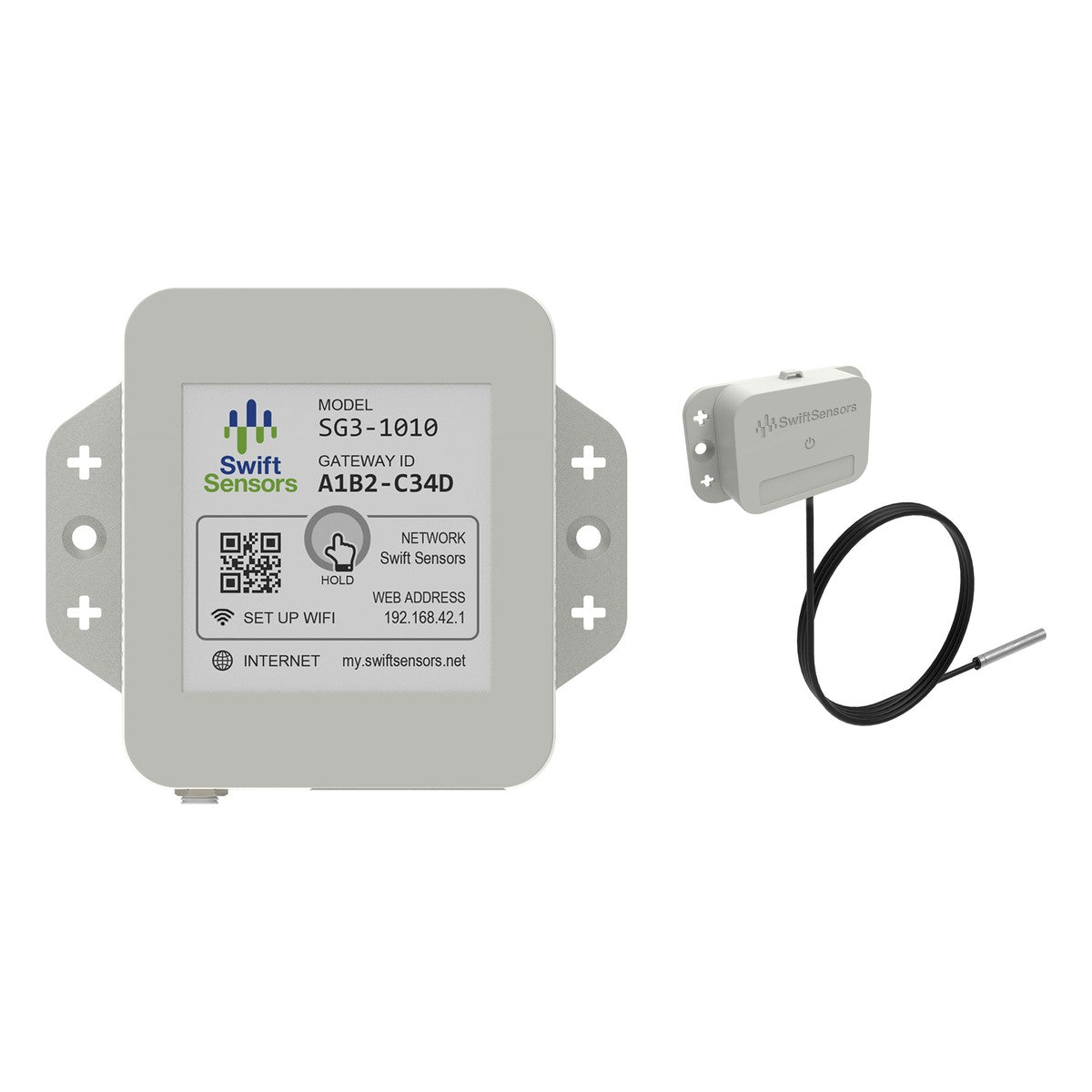

Put refrigerators, freezers and walk-in coolers under round-the-clock wireless monitoring in a single order. The kit pairs the Swift Sensors SG3-1010 gateway with SS3-105 remote-probe sensors: each sealed NTC probe sits inside the unit on a 1 m (3 ft) lead while the transmitter mounts outside, and every reading streams to the Swift Sensors Console with SMS, email and phone-call alerts when a unit drifts out of range.
What is in the kit
| Component | Part number · Quantity |
|---|---|
| Swift Sensors Gateway (Wi-Fi / Ethernet / PoE) | SG3-1010 · 1 |
| Wireless Remote Temperature Sensor, 1 m probe | SS3-105 · 3 or 6, by kit size |
The kit is priced as its parts: one SG3-1010 at $375 plus each SS3-105 at $170. Orders ship as the individual Swift Sensors components.
Typical applications
- Laboratory refrigerators and freezers
- Vaccine and medication refrigerators
- Walk-in coolers and cold rooms
- Food-service and cold-chain storage
- Liquid baths and immersion points
Sizing the system
Plan one SS3-105 per refrigerator or freezer compartment. The gateway handles up to 150 sensors within a 500 ft radius, so the same system grows sensor by sensor as more units come online.
Ultra-low freezers colder than -40 C need the SS3-110 ultra-low temperature sensor (-100 to +200 C), which runs on the same gateway. NIST-traceable calibration certificates are available for Swift Sensors temperature models.
Technical specifications
| Probe temperature range | -40 to +125 C (-40 to +257 F) |
|---|---|
| Accuracy | 0.15 C typical |
| Probe | Sealed NTC on a 1 m (3 ft) lead |
| Sensor battery | 2 x AAA lithium-polymer, replaceable; 6-8 year average life |
| Sensor enclosure | IP66 |
| Wireless range | 70-90 m (250-300 ft) line-of-sight; 30-45 m (100-150 ft) non-line-of-sight |
| Gateway connectivity | Wi-Fi, Ethernet or PoE; cellular via add-on module |
| Encryption | 128-bit AES sensor to gateway; 256-bit AES gateway to cloud |
| Warranty | 2 years |
Monitoring plan
A Swift Sensors system runs on three parts: a gateway, sensors and a Cloud Monitoring plan. The Swift Sensors Cloud Monitoring plan is priced by the number of sensors deployed and can be paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
