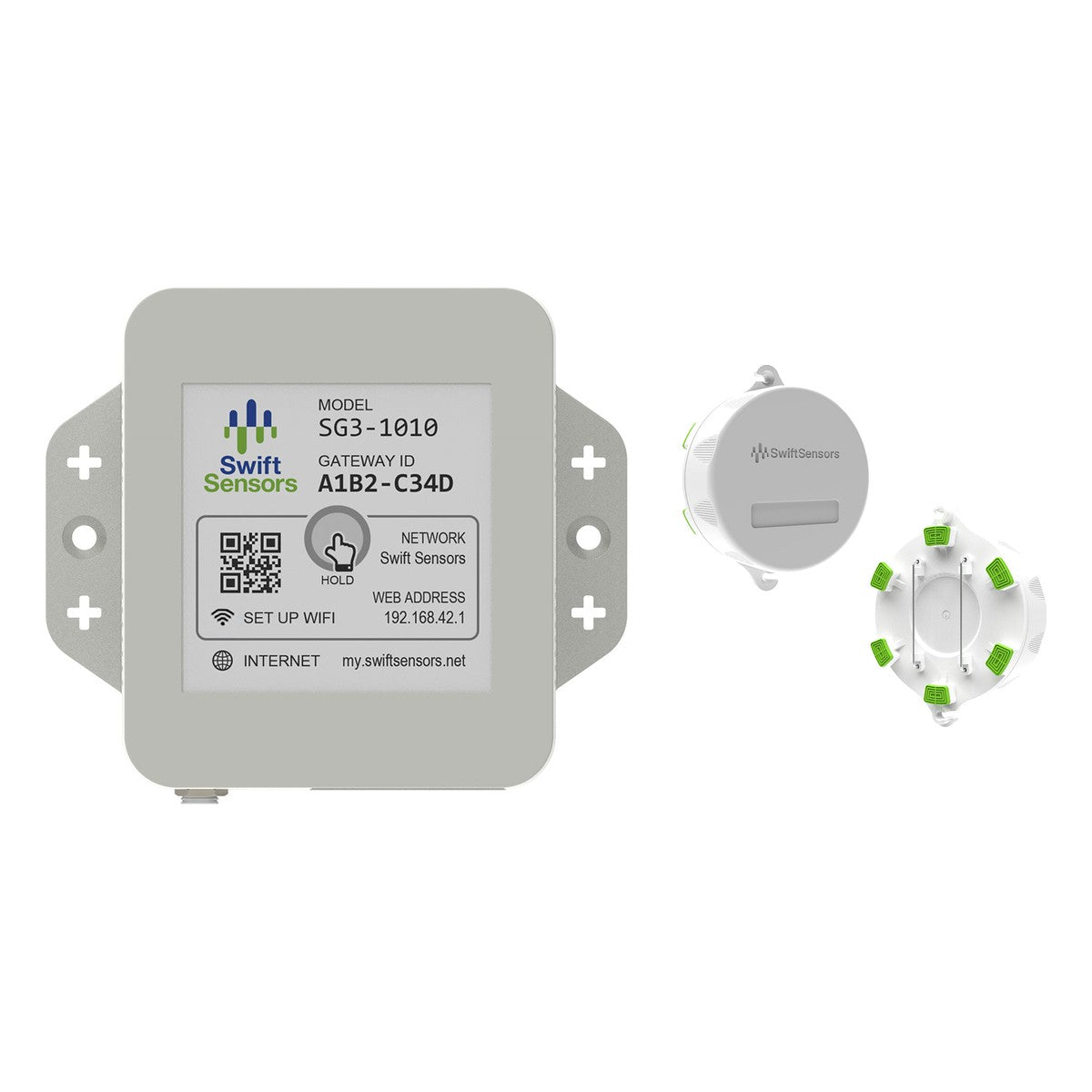

Catch leaks under equipment before they reach the samples, servers or flooring around them. The kit pairs the Swift Sensors SG3-1010 gateway with SS3-108P water-presence pucks: each 5 cm, IP67-rated puck sits on the floor and triggers an SMS, email or phone-call alert the moment liquid spreads across it.
What is in the kit
| Component | Part number · Quantity |
|---|---|
| Swift Sensors Gateway (Wi-Fi / Ethernet / PoE) | SG3-1010 · 1 |
| Wireless Water Presence Puck Sensor | SS3-108P · 3 or 6, by kit size |
The kit is priced as its parts: one SG3-1010 at $375 plus each SS3-108P at $200. Orders ship as the individual Swift Sensors components.
Typical applications
- Server rooms and data centers
- Under ice machines, water heaters and chillers
- Mechanical and utility rooms
- Laboratories and clean spaces
- Tanks, pumps and plumbing runs
Sizing the system
Place one puck at each point where water would collect first: under a water heater, beside a floor drain, beneath a chiller. The gateway handles up to 150 sensors within a 500 ft radius, so more pucks can be added as the coverage map grows.
To guard a perimeter rather than a point, the SS3-109 water rope sensor detects liquid anywhere along 3 m (10 ft) of rope on the same gateway.
Technical specifications
| Detects | Presence / absence of water |
|---|---|
| Form factor | 5 cm floor puck |
| Sensor enclosure | IP67 |
| Sensor battery | 2 x AAA lithium-polymer, replaceable; 6-8 year average life |
| Wireless range | 70-90 m (250-300 ft) line-of-sight; 30-45 m (100-150 ft) non-line-of-sight |
| Gateway connectivity | Wi-Fi, Ethernet or PoE; cellular via add-on module |
| Encryption | 128-bit AES sensor to gateway; 256-bit AES gateway to cloud |
| Warranty | 2 years |
Monitoring plan
A Swift Sensors system runs on three parts: a gateway, sensors and a Cloud Monitoring plan. The Swift Sensors Cloud Monitoring plan is priced by the number of sensors deployed and can be paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
