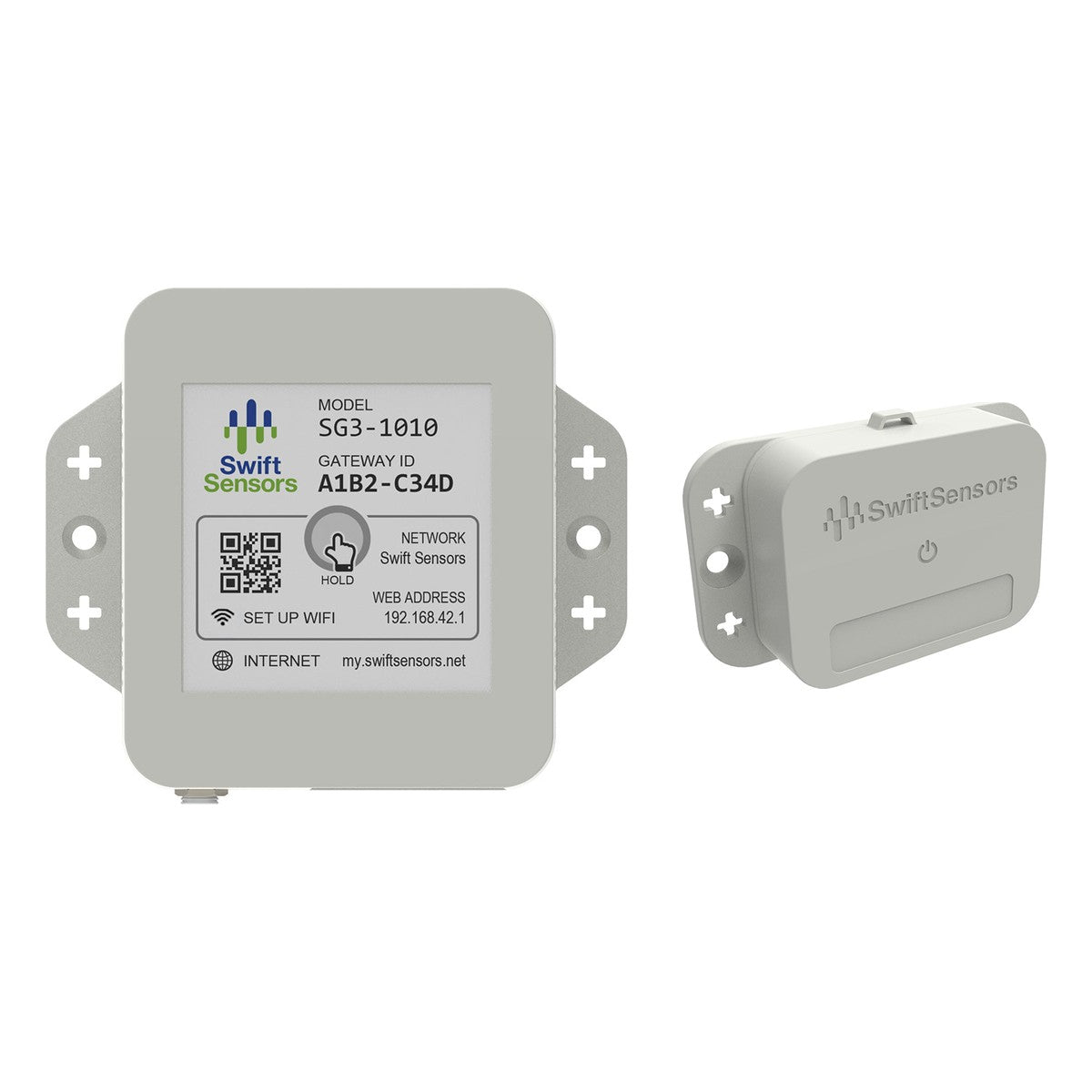

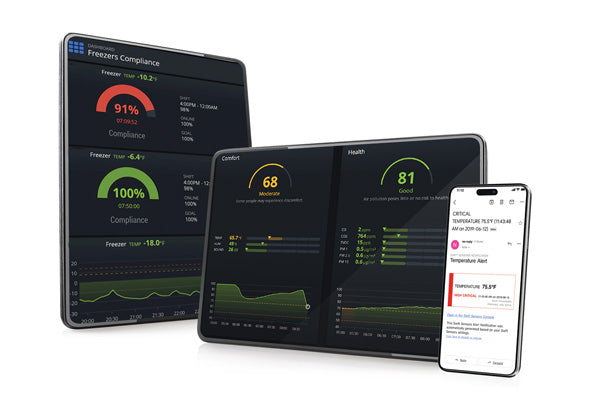

Start a wireless vibration monitoring program on motors, pumps and compressors without running a single cable. The kit pairs the Swift Sensors SG3-1010 gateway with SS3-203 predictive vibration sensors, which burst-sample at up to 1600 Hz and report tri-axial RMS, peak-to-peak and crest factor, so bearing wear and imbalance show up as a trend in the Swift Sensors Console before they become a breakdown.
What is in the kit
| Component | Part number · Quantity |
|---|---|

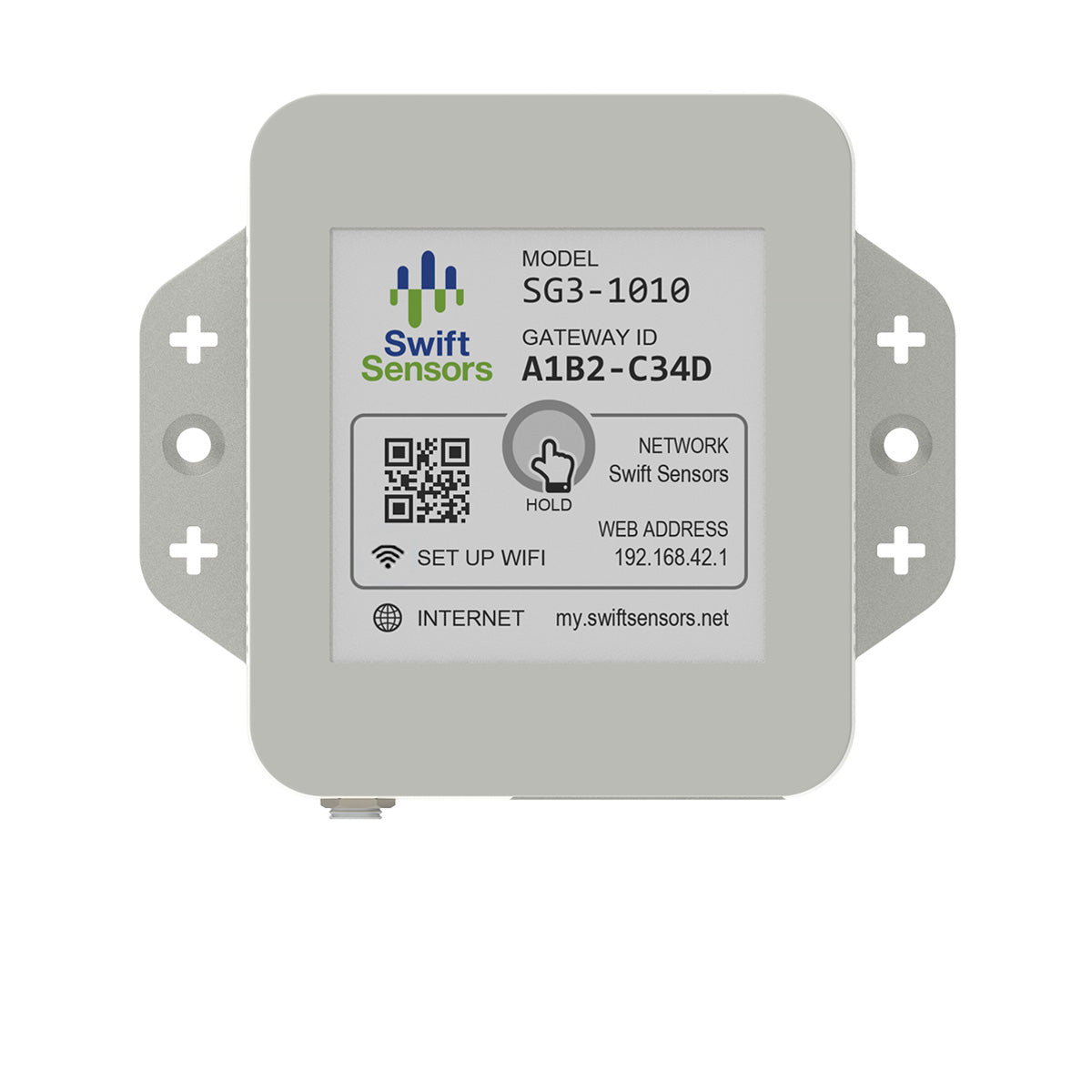

| Swift Sensors Gateway (Wi-Fi / Ethernet / PoE) | SG3-1010 · 1 |

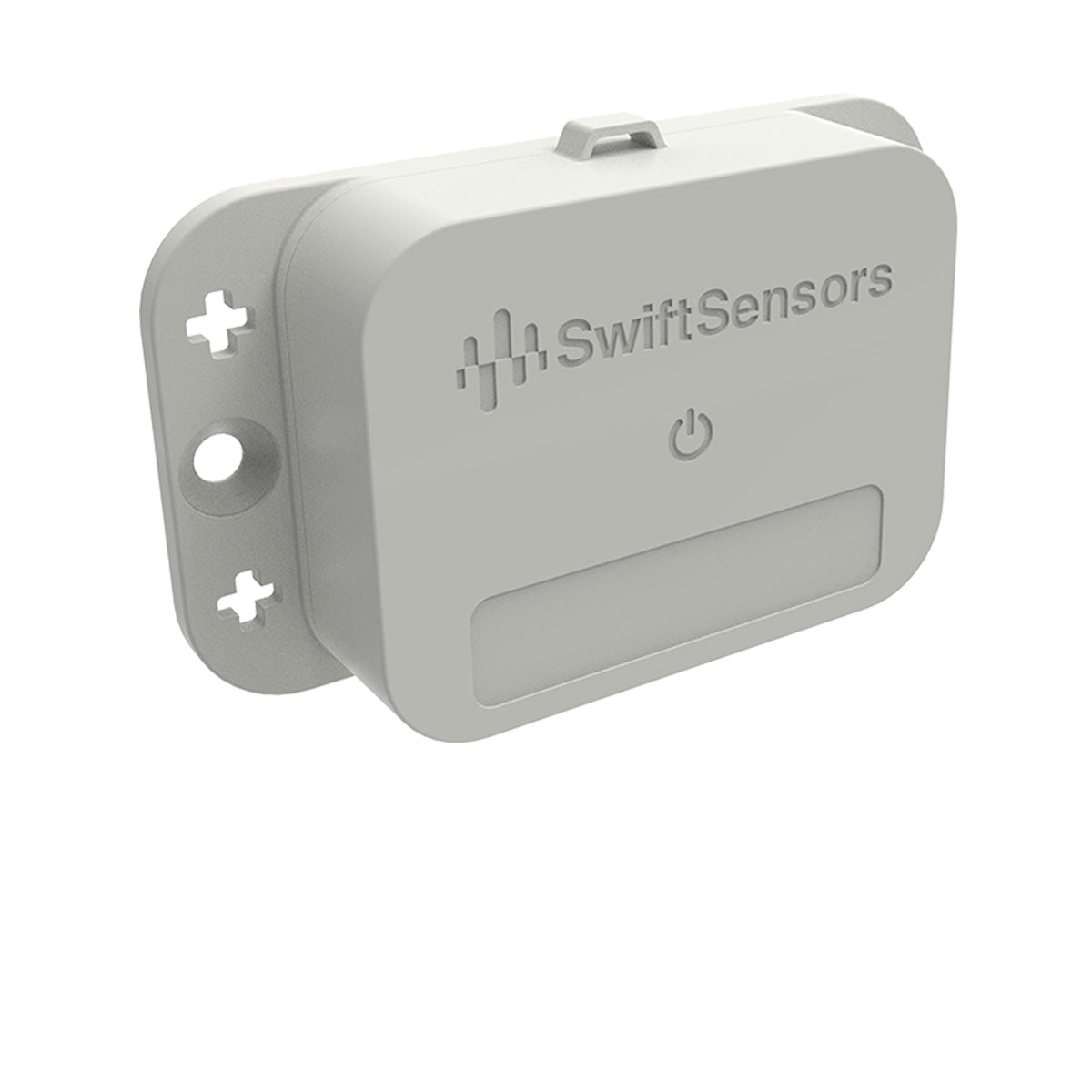

| Wireless Predictive Vibration Sensor | SS3-203 · 2 or 4, by kit size |
The kit is priced as its parts: one SG3-1010 at $375 plus each SS3-203 at $150. Orders ship as the individual Swift Sensors components.
Typical applications
- Motors, pumps and compressors
- Gearboxes, fans and blowers
- Bearings and rotating machinery
- HVAC air handlers and chillers
- Manufacturing reliability programs
Sizing the system
Mount one SS3-203 on each machine you want to trend, as close to the bearing housing as practical. The gateway handles up to 150 sensors within a 500 ft radius, so a pilot on two or four assets extends across the plant on the same gateway.
For simple run/no-run and amplitude trending, the SS3-202 vibration amplitude sensor reports X, Y and Z g-force on the same gateway.
Technical specifications
| Measures | Tri-axial RMS, peak-to-peak and crest factor |
|---|---|
| Burst sample rate | Up to 1600 Hz |
| Ranges | 2 / 4 / 8 / 16 g, user-configurable |
| Sensor battery | 2 x AAA lithium-polymer, replaceable; 6-8 year average life |
| Sensor enclosure | IP66 |
| Wireless range | 70-90 m (250-300 ft) line-of-sight; 30-45 m (100-150 ft) non-line-of-sight |
| Gateway connectivity | Wi-Fi, Ethernet or PoE; cellular via add-on module |
| Encryption | 128-bit AES sensor to gateway; 256-bit AES gateway to cloud |
| Warranty | 2 years |
Monitoring plan
A Swift Sensors system runs on three parts: a gateway, sensors and a Cloud Monitoring plan. The Swift Sensors Cloud Monitoring plan is priced by the number of sensors deployed and can be paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
