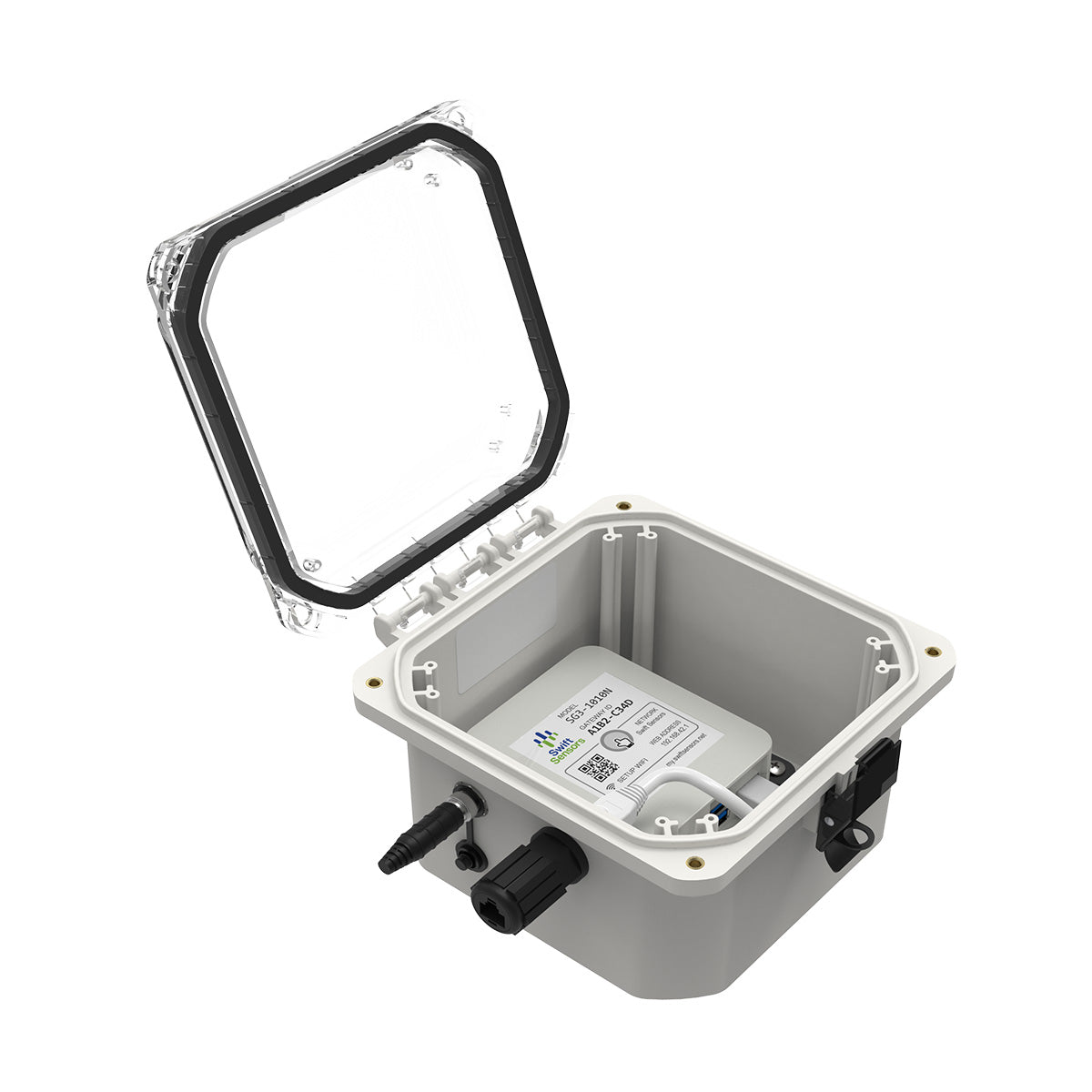

The Swift Sensors SG3-NEMA-1010-C3 combines an SG3-1010 gateway and an SG3-CNM-03 cellular network module inside an IP67 NEMA-rated enclosure - a complete, weatherproof, cellular-connected monitoring hub for remote or network-isolated sites.
Typical applications
- Single-site and multi-site sensor networks
- Laboratories, healthcare, and facilities
- Manufacturing and cold storage
- Warehouses and data centers
- Enterprise IoT monitoring
Technical specifications
| Enclosure | IP67 NEMA-rated |
|---|---|
| Includes | SG3-1010 gateway + SG3-CNM-03 cellular module |
| Connectivity | Wi-Fi, Ethernet, PoE, cellular |
| Note | Requires a cellular data plan |
The hub of your Swift Sensors system
The gateway auto-detects every Swift Sensors sensor within range and immediately establishes secure, encrypted communication — no configuration required. It relays readings to the Swift Sensors Cloud, where the Swift Sensors Console lets you monitor live and historical data and configure SMS, email, and phone-call alerts from any device.
- Supports up to 150 Series 3 sensors per gateway.
- Flexible connectivity — Wi-Fi, Ethernet, or Power-over-Ethernet; add a Cellular Network Module for sites without network access.
- 256-bit AES encryption and ISO 17025 protocols end to end.
- Status-at-a-glance LED indicators for fast installation and diagnostics.
- Two-year warranty and satisfaction guarantee.
Completing the system
- Sensors — this SG3-NEMA-1010-C3 supports up to 150 Swift Sensors Series 3 sensors within a 500 ft radius, in any mix of types. Browse Swift Sensors.
- Cloud Monitoring plan — priced by the number of sensors deployed, paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
Starting a new site? Each starter kit ships a gateway with sensors in one order: Refrigerator & Freezer Temperature Monitoring Kit · Vibration Monitoring Kit · Water Leak Detection Kit.
