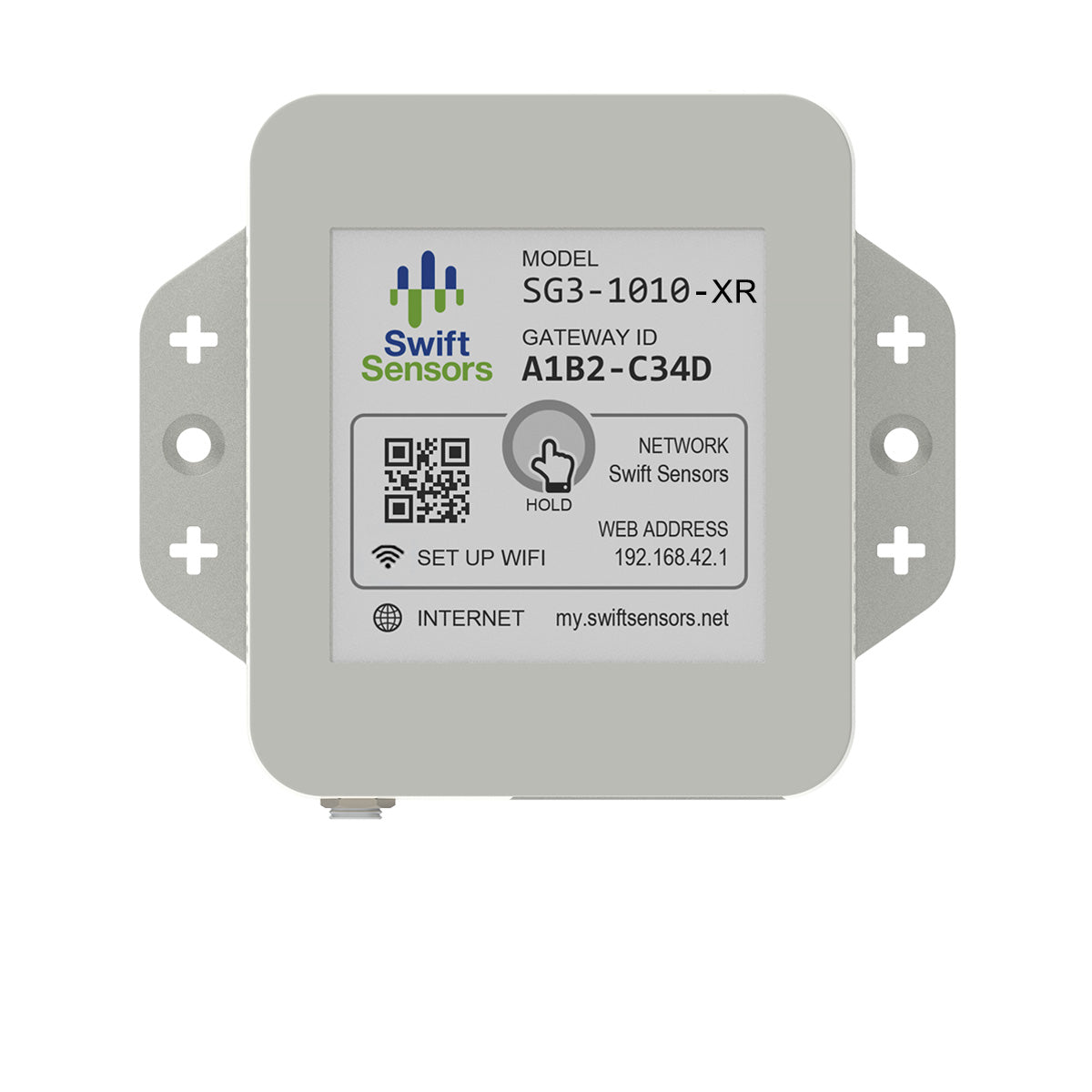

The Swift Sensors SG3-1010-XR is an extended-range gateway for larger facilities, collecting encrypted data from Series 3 sensors across greater distances and transmitting it to the cloud over Wi-Fi, Ethernet, or PoE.
Typical applications
- Single-site and multi-site sensor networks
- Laboratories, healthcare, and facilities
- Manufacturing and cold storage
- Warehouses and data centers
- Enterprise IoT monitoring
Technical specifications
| Connectivity | Wi-Fi, Ethernet, PoE; cellular via add-on module |
|---|---|
| Range | Extended range |
| Power | AC 110/220 or PoE |
| Sensor capacity | Up to 150 Series 3 sensors |
| Encryption | 256-bit AES |
The hub of your Swift Sensors system
The gateway auto-detects every Swift Sensors sensor within range and immediately establishes secure, encrypted communication — no configuration required. It relays readings to the Swift Sensors Cloud, where the Swift Sensors Console lets you monitor live and historical data and configure SMS, email, and phone-call alerts from any device.
- Supports up to 150 Series 3 sensors per gateway.
- Flexible connectivity — Wi-Fi, Ethernet, or Power-over-Ethernet; add a Cellular Network Module for sites without network access.
- 256-bit AES encryption and ISO 17025 protocols end to end.
- Status-at-a-glance LED indicators for fast installation and diagnostics.
- Two-year warranty and satisfaction guarantee.
Completing the system
- Sensors — this SG3-1010-XR supports up to 150 Swift Sensors Series 3 sensors, in any mix of types. Browse Swift Sensors.
- Cloud Monitoring plan — priced by the number of sensors deployed, paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
Starting a new site? Each starter kit ships a gateway with sensors in one order: Refrigerator & Freezer Temperature Monitoring Kit · Vibration Monitoring Kit · Water Leak Detection Kit.
