Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 4X Overview

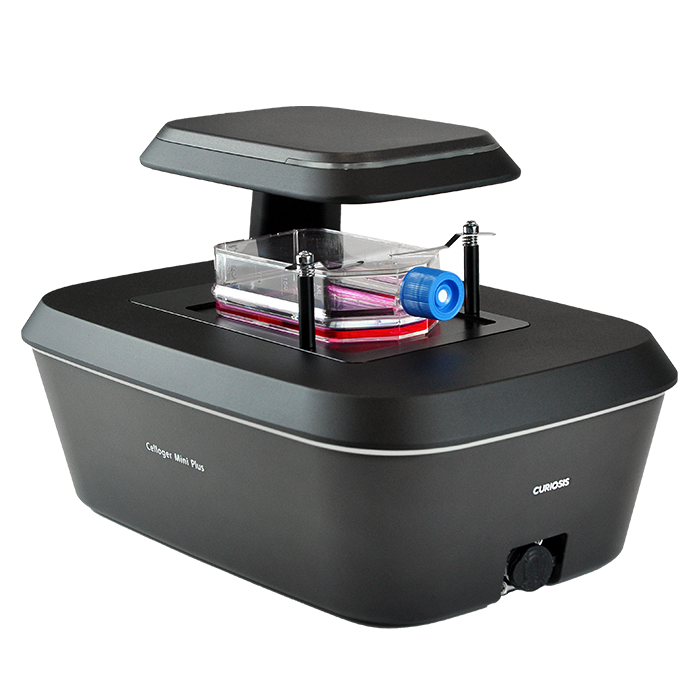

The Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 4X (Celloger Mini Plus, SKU CMP-BR4) is a compact Cell Imaging System from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. It captures brightfield and red fluorescence images at 4× magnification inside a standard CO2 incubator, enabling walk-away monitoring of live cultures without disturbing their environment.
A motorized XYZ camera moves to image multiple positions while the vessel and sample stay fixed, holding cells in a steady state. Image capture uses a 5 MP CMOS sensor paired with an LED light source. Objective lenses cover 4× and 10×, with field-of-view options ranging from 2.53 × 1.90 mm down to 0.57 × 0.43 mm.
Built for incubator use, the unit operates across 10–40°C and 20–95% humidity. Its 226 × 358 × 215 mm body fits inside a standard CO2 incubator and weighs 23 lbs for easy transport in and out during experiments. Manufactured in Korea, the system omits a moveable stage to minimize disturbance to culture conditions. Contact for power specification.
Key Features
- Dual imaging modes: brightfield plus red fluorescence (excitation 525/30, emission 570 lp) at 4× magnification.
- Camera-moving design: motorized XYZ stage moves the camera while the vessel stays fixed, keeping cells in a stable, steady state.
- 5 MP CMOS camera with LED source: delivers consistent image capture across multiple positions.
- Dual objective lenses: 4× and 10× options with field-of-view from 2.53 × 1.90 mm to 0.57 × 0.43 mm.
- Real-time and time-lapse imaging: automated capture with one-click video generation for long-term monitoring.
- Incubator-ready footprint: 226 × 358 × 215 mm body fits a standard CO2 incubator and carries in and out at 23 lbs.
How to Choose the Right Cell Imaging System
Match the imaging system to your assay, culture vessels, and incubator setup so monitoring runs reliably without interrupting cell growth.
- Imaging modes: confirm whether your workflow needs brightfield only or fluorescence detection; this unit pairs brightfield with red fluorescence (excitation 525/30, emission 570 lp).
- Magnification and field of view: choose objectives that resolve your cell type; 4× and 10× lenses span 2.53 × 1.90 mm to 0.57 × 0.43 mm.
- Incubator fit: verify the 226 × 358 × 215 mm footprint and 23 lb weight against your CO2 incubator's interior and shelving.
- Operating environment: the system runs from 10–40°C and 20–95% humidity, matching standard incubator conditions.
- Stage and disturbance: a camera-moving motorized XYZ design keeps the vessel steady, ideal for long-term, multi-position studies.
- Capture workflow: decide if real-time and time-lapse with automated one-click video suits your data and reporting needs.
Specifications
| Specification | Detail |
|---|---|
| Imaging Modes | Brightfield + Red fluorescence (Excitation 525/30, Emission 570 lp) |
| Magnification | 4× |
| Type | Real-time automated live-cell imaging system (CELLOGER MINI PLUS) |
| Function | Walk-away monitoring of live cells inside the incubator without disturbing the environment; real-time and time-lapse with automated capture and one-click video |
| Operating Environment | 10–40°C, 20–95% humidity |
| Objective Lens | 4× / 10× |
| Field of View | 2× (2.53 × 1.90 mm), 4× (1.19 × 0.90 mm), 10× (0.57 × 0.43 mm) |
| Light Source | LED |
| Camera | 5 MP CMOS |
| Stage | Motorized XYZ (camera-moving) |
| Imaging Positions | Multiple |
| Dimensions | 226 × 358 × 215 mm in |
| Country of Origin | South Korea |
| Shipping Weight | 23 lbs |
| Dimensions (L × W × H) | 22 × 19 × 16.5 in |
| HTS Code | 9031.80.9099 |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CMP-BR4 | EA | EA |
Documentation
More in This Series
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 2X
View all Live-Cell Imaging Systems →
Why Buy From LabSupplies.com
Order the Celloger Mini Plus directly from LabSupplies.com and receive a genuine Yamato Scientific unit backed by manufacturer support. Our team handles spec questions before you commit to a .
- Authorized Yamato Scientific dealer: every unit is genuine and covered by manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Ships from USA: domestic fulfillment for faster delivery.
- Lab-equipment specialists: dedicated support for imaging and configuration questions.
Frequently Asked Questions
What imaging modes does the CMP-BR4 support?
It supports brightfield plus red fluorescence imaging at 4× magnification. Red fluorescence uses an excitation filter of 525/30 and an emission filter of 570 lp.
What operating environment does the Celloger Mini Plus require?
The system operates from 10–40°C and 20–95% humidity, matching standard CO2 incubator conditions for live-cell culture.
Will the CMP-BR4 fit inside a standard CO2 incubator?
Yes. Its body measures 226 × 358 × 215 mm and weighs 23 lbs, so it fits a standard CO2 incubator and carries in and out during experiments.
What magnification and field of view are available?
The system images at 4× and offers 4× and 10× objective lenses. Field of view ranges from 2.53 × 1.90 mm at 2× to 0.57 × 0.43 mm at 10×.
How does it image multiple positions without disturbing the cells?
A camera-moving motorized XYZ stage moves the camera while the vessel and sample stay fixed. Holding the sample steady keeps cells in a stable state during multi-position capture.
What are the power requirements for the CMP-BR4?
Contact for specification. The system is country-of-origin Korea; our specialists can confirm power details before your .
