Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 10X Overview

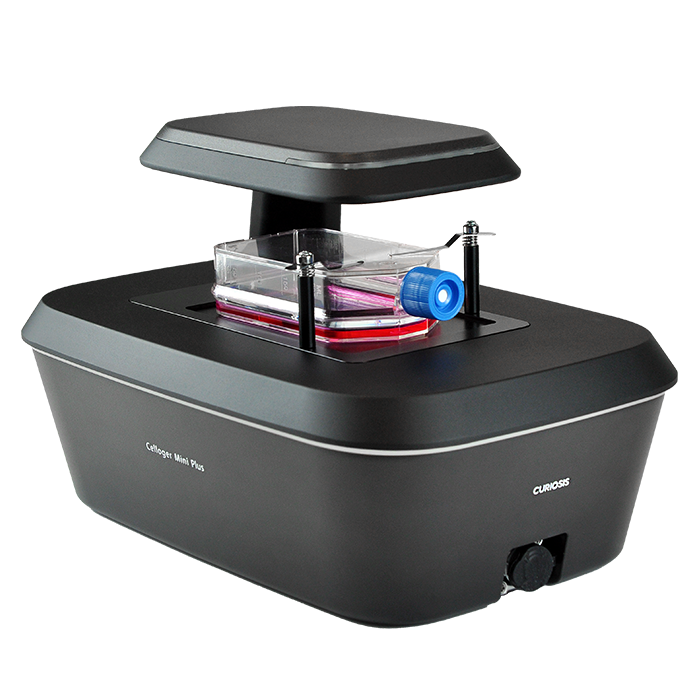

The Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 10X (Celloger Mini Plus, SKU CMP-BG10) is a cell imaging system built for continuous live-cell monitoring at 10× magnification across brightfield and green fluorescence. Yamato Scientific engineered it to track cultures inside a CO2 incubator without disturbing the environment suited to cell growth. LabSupplies.com supplies this unit as an authorized dealer.
Rather than moving the vessel, a motorized XYZ stage repositions the internal 5 MP CMOS camera, holding samples in a steady state while imaging multiple positions. LED illumination drives both modes, with green fluorescence excitation at 470/40 and emission at 510 lp. Objective lenses cover 4× and 10×, delivering a 0.57 × 0.43 mm field of view at 10×.
Compact dimensions of 226 × 358 × 215 mm let the system fit a standard CO2 incubator, while the 23 lb weight allows easy transfer in and out during an experiment. Operating range spans 10–40°C and 20–95% humidity. Manufactured in South Korea, this unit ships from USA inventory through LabSupplies.com.
Key Features
- Dual imaging modes: brightfield plus green fluorescence (excitation 470/40, emission 510 lp) on a single platform.
- Camera-moving design: motorized XYZ stage moves the camera while the vessel stays fixed, keeping cells in a stable growth state.
- Automated capture: autofocusing with real-time and time-lapse imaging, multi-position monitoring, and one-click video generation.
- 5 MP CMOS camera: LED light source supports both imaging modes for live-cell documentation.
- Selectable optics: 4× and 10× objectives, with field of view of 0.57 × 0.43 mm at 10×.
- Incubator-ready footprint: 226 × 358 × 215 mm body fits a standard CO2 incubator and carries in and out easily at 23 lb.
How to Choose the Right Cell Imaging System
Selecting a live-cell imaging platform comes down to matching optical capability and workflow automation to your assay and incubator setup. Weigh these axes against your protocols before ordering.
- Imaging modes: confirm whether brightfield alone suffices or your assay needs fluorescence; this unit pairs brightfield with green fluorescence at 470/40 excitation and 510 lp emission.
- Magnification and field of view: 4× and 10× objectives trade wider area for finer cellular detail, with a 0.57 × 0.43 mm view at 10×.
- Automation type: autofocusing, multi-position capture, and time-lapse video reduce hands-on intervention and incubator door openings.
- Incubator compatibility: verify the 226 × 358 × 215 mm footprint and 23 lb weight fit your CO2 incubator shelf and handling needs.
- Operating environment: the 10–40°C and 20–95% humidity range should match your culture conditions.
- Sample stability: a camera-moving stage keeps the vessel static, which matters for delicate or adherent cultures.
Specifications
| Specification | Detail |
|---|---|
| Imaging Modes | Brightfield + Green fluorescence (Excitation 470/40, Emission 510 lp) |
| Magnification | 10× |
| Type | Real-time automated live-cell imaging system (CELLOGER MINI PLUS) |
| Function | Walk-away monitoring of live cells inside the incubator without disturbing the environment; real-time and time-lapse with automated capture and one-click video |
| Operating Environment | 10–40°C, 20–95% humidity |
| Objective Lens | 4× / 10× |
| Field of View | 2× (2.53 × 1.90 mm), 4× (1.19 × 0.90 mm), 10× (0.57 × 0.43 mm) |
| Light Source | LED |
| Camera | 5 MP CMOS |
| Stage | Motorized XYZ (camera-moving) |
| Imaging Positions | Multiple |
| Dimensions | 226 × 358 × 215 mm in |
| Country of Origin | South Korea |
| Shipping Weight | 23 lbs |
| Dimensions (L × W × H) | 22 × 19 × 16.5 in |
| HTS Code | 9031.80.9099 |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CMP-BG10 | EA | EA |
Documentation
More in This Series
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 2X
View all Live-Cell Imaging Systems →
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every Celloger Mini Plus arrives as a genuine factory unit backed by the manufacturer warranty. Our lab-equipment specialists answer spec and compatibility questions so your team can order with confidence.
- Authorized dealer: genuine Yamato Scientific equipment with full manufacturer warranty.
- In stock: ready to order and ship from USA inventory.
- Specialist support: dedicated lab-equipment experts for imaging-mode and incubator-fit questions.
Frequently Asked Questions
What operating environment does the Celloger Mini Plus support?
It operates from 10 to 40°C across 20 to 95% humidity. That range suits placement inside a standard CO2 incubator for continuous live-cell monitoring.
What are the dimensions and weight of this imaging system?
The unit measures 226 × 358 × 215 mm (22 × 19 × 16.5 in shipping) and weighs 23 lb. Its compact footprint fits a standard CO2 incubator and transfers in and out easily.
Which imaging modes and magnifications are included?
This configuration provides brightfield plus green fluorescence imaging (excitation 470/40, emission 510 lp). Objective lenses cover 4× and 10×, with a 0.57 × 0.43 mm field of view at 10×.
How does the system capture multiple positions without disturbing cells?
A motorized XYZ stage moves the internal 5 MP CMOS camera instead of the vessel. Keeping the sample static maintains a stable growth environment while autofocusing captures multiple positions, time-lapse sequences, and one-click video.
What are the power and voltage requirements?
Electrical specifications are not listed in the current product data. Contact LabSupplies.com specialists to confirm voltage and power requirements before ordering.
Where is the Celloger Mini Plus manufactured and where does it ship from?
The unit is manufactured in South Korea. LabSupplies.com ships it from USA inventory as an authorized Yamato Scientific dealer.
