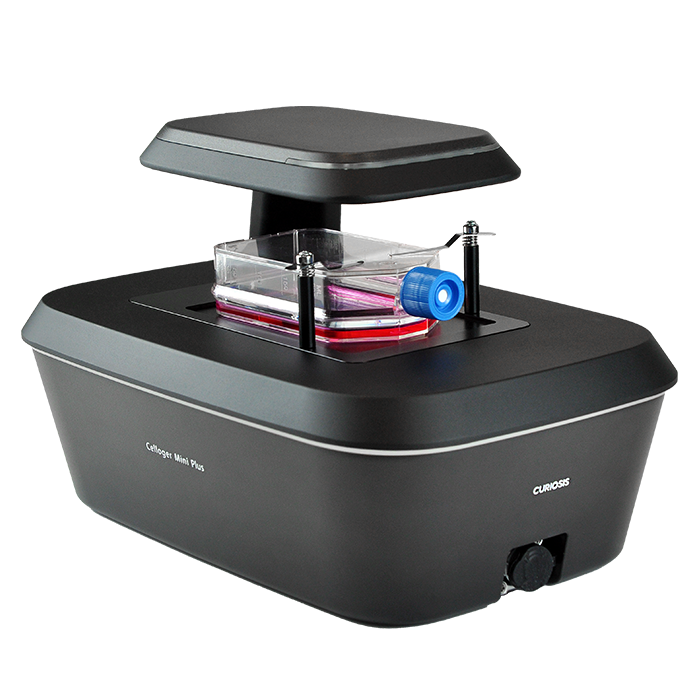

Real-Time Automated Live Cell Imaging System, Bright Field, 2X Overview
The Real-Time Automated Live Cell Imaging System, Bright Field, 2X (Celloger Mini Plus, CMPB2) from Yamato Scientific is a real-time automated live-cell imaging system in the Cell Biology category. Built for walk-away monitoring inside a CO2 incubator, it captures brightfield images at a 2× field of view across an operating environment of 10–40°C and 20–95% humidity. LabSupplies.com supplies it as an authorized dealer.
A camera-moving design replaces the conventional moving stage. The motorized XYZ optics travel to image cells at multiple positions while the vessel and sample stay fixed, holding a steady culture environment. A 5 MP CMOS sensor, LED light source, and 4×/10× objective lenses support automated capture, autofocusing, and one-click video.
Compact dimensions of 226 × 358 × 215 mm let the unit fit a standard CO2 incubator and move in and out between experiments. The system weighs 23 lbs and is manufactured in Korea. Power specifications are available on request.
Key Features
- Camera-moving architecture: internal optics move to image multiple positions while the vessel stays fixed, keeping cells in a steady, undisturbed state.
- Brightfield imaging at 2× FOV: 2× field of view measures 2.53 × 1.90 mm, with 4× and 10× objective lenses for closer views.
- 5 MP CMOS camera with LED source: delivers consistent illumination and resolution for real-time and time-lapse capture.
- Motorized XYZ autofocusing: automates focus and multi-position acquisition for true walk-away operation.
- Incubator-ready footprint: 226 × 358 × 215 mm fits a standard CO2 incubator and operates across 10–40°C and 20–95% humidity.
- One-click video output: converts time-lapse sequences into video without manual assembly.
How to Choose the Right Cell Imaging System
Live-cell imaging systems differ in optics, automation, and how they handle the culture environment. Match these axes to your assay and incubator before purchasing.
- Imaging mode: brightfield-only units suit morphology and confluence tracking; choose a fluorescence-capable model if you need labeled-cell detection.
- Field of view and magnification: the 2× FOV (2.53 × 1.90 mm) captures more wells per frame, while 4×/10× objectives resolve finer detail — confirm the scale your readout requires.
- Stage architecture: a camera-moving design keeps the vessel stationary, reducing disturbance to sensitive cultures versus moving-stage systems.
- Operating environment: verify the 10–40°C and 20–95% humidity range matches your incubator conditions.
- Footprint: the 226 × 358 × 215 mm body must fit your existing CO2 incubator shelf with room to remove it between runs.
- Automation level: autofocusing, multi-position capture, and one-click video reduce hands-on time for long time-lapse studies.
Specifications
| Specification | Detail |
|---|---|
| Imaging Modes | Brightfield |
| Magnification | 2× |
| Type | Real-time automated live-cell imaging system (CELLOGER MINI PLUS) |
| Function | Walk-away monitoring of live cells inside the incubator without disturbing the environment; real-time and time-lapse with automated capture and one-click video |
| Operating Environment | 10–40°C, 20–95% humidity |
| Objective Lens | 4× / 10× |
| Field of View | 2× (2.53 × 1.90 mm), 4× (1.19 × 0.90 mm), 10× (0.57 × 0.43 mm) |
| Light Source | LED |
| Camera | 5 MP CMOS |
| Stage | Motorized XYZ (camera-moving) |
| Imaging Positions | Multiple |
| Dimensions | 226 × 358 × 215 mm in |
| Country of Origin | South Korea |
| Shipping Weight | 23 lbs |
| Dimensions (L × W × H) | 22 × 19 × 16.5 in |
| HTS Code | 9031.80.9099 |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CMP-B2 | EA | EA |
Documentation
More in This Series
- Real-Time Automated Live Cell Imaging System, Bright Field, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 10X
View all Live-Cell Imaging Systems →
Why Buy From LabSupplies.com
Order the Celloger Mini Plus (CMPB2) directly from LabSupplies.com and ship from USA inventory. We support cell-biology labs with specialists who answer imaging and configuration questions before you commit.
- Authorized Yamato Scientific dealer: genuine unit backed by the manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Lab-equipment specialists: direct help with specifications and incubator compatibility.
Frequently Asked Questions
What is the operating temperature and humidity range of the Celloger Mini Plus?
It operates from 10–40°C and 20–95% humidity. That range lets it run continuously inside a standard CO2 incubator for long-term live-cell monitoring.
What are the dimensions and weight of the CMPB2 unit?
The system measures 226 × 358 × 215 mm (22 × 19 × 16.5 in) and weighs 23 lbs. Its compact footprint fits a standard CO2 incubator and can be carried in and out between experiments.
What imaging mode and magnification does this configuration provide?
This configuration provides brightfield imaging at a 2× field of view (2.53 × 1.90 mm). Onboard 4× and 10× objective lenses deliver closer views at 1.19 × 0.90 mm and 0.57 × 0.43 mm.
Does the system use a moving stage?
No. The camera and motorized XYZ optics move to image multiple positions while the vessel stays fixed. This keeps the cell sample in a steady state during acquisition.
What camera and light source are built in?
It uses a 5 MP CMOS camera with an LED light source. Together they support real-time and time-lapse capture with autofocusing and one-click video output.
What power supply does the CMPB2 require?
Power specifications are available on request. Contact our lab-equipment specialists to confirm electrical requirements for your facility before ordering.
