Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 10X Overview

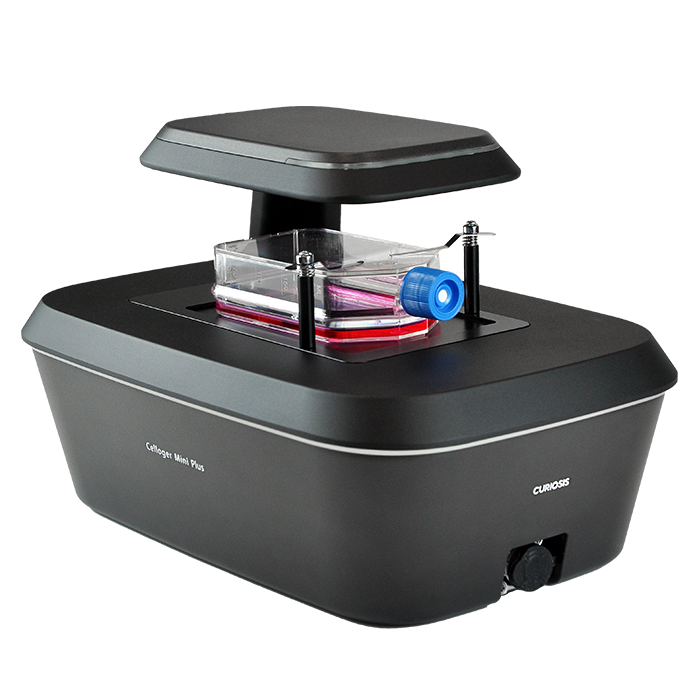

The Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 10X (Yamato Scientific Celloger Mini Plus, model CMPBR10) is a cell imaging system built for walk-away monitoring of cultures inside a CO2 incubator. Capturing in brightfield plus red fluorescence at 10× magnification, this unit tracks live cells across long experiments without disturbing temperature or humidity. LabSupplies.com supplies it as an authorized dealer.
A camera-moving architecture defines the design: the motorized XYZ stage moves the 5 MP CMOS camera rather than the vessel, keeping the sample in a steady state for stable growth. Red fluorescence runs on a 525/30 excitation and 570 lp emission, while LED illumination and 4×/10× objectives support multiple imaging positions. Autofocus and one-click video drive automated real-time and time-lapse capture.
Compact 226 × 358 × 215 mm dimensions fit a standard CO2 incubator, and the 23 lb unit carries in and out easily during a run. Operating environment spans 10–40°C and 20–95% humidity. Manufactured in South Korea, the system images at fields of view from 0.57 × 0.43 mm at 10× down to 2.53 × 1.90 mm at 2×. Contact us for electrical specifications.
Key Features
- Dual imaging modes: brightfield plus red fluorescence with 525/30 excitation and 570 lp emission for live-cell and labeled-cell work.
- Camera-moving stage: motorized XYZ moves the camera instead of the vessel, holding samples in a steady state for stable growth.
- 5 MP CMOS camera with LED source: delivers consistent illumination and resolution across multiple imaging positions.
- 4×/10× objectives: field of view ranges from 2.53 × 1.90 mm at 2× to 0.57 × 0.43 mm at 10×.
- Automated real-time and time-lapse: autofocus and one-click video capture support unattended, walk-away monitoring.
- Incubator-ready footprint: 226 × 358 × 215 mm and 23 lb fit a standard CO2 incubator and move easily in and out.
How to Choose the Right Cell Imaging System
Selecting an in-incubator imaging system comes down to matching the optical channels, optics, and physical fit to your workflow. Weigh these axes against the assays you run most.
- Imaging modes: confirm the fluorescence channel matches your label; this unit pairs brightfield with red fluorescence (525/30 excitation, 570 lp emission).
- Magnification and field of view: 4× and 10× objectives trade wider context for finer cellular detail, from 1.19 × 0.90 mm to 0.57 × 0.43 mm.
- Stage design: a camera-moving motorized XYZ stage keeps the vessel stationary, reducing disturbance to growing cultures.
- Incubator compatibility: verify footprint and weight against your CO2 incubator shelf; this model measures 226 × 358 × 215 mm at 23 lb.
- Operating environment: match the 10–40°C and 20–95% humidity range to your incubation conditions.
- Camera resolution: a 5 MP CMOS sensor balances image clarity with manageable file sizes for time-lapse runs.
Specifications
| Specification | Detail |
|---|---|
| Imaging Modes | Brightfield + Red fluorescence (Excitation 525/30, Emission 570 lp) |
| Magnification | 10× |
| Type | Real-time automated live-cell imaging system (CELLOGER MINI PLUS) |
| Function | Walk-away monitoring of live cells inside the incubator without disturbing the environment; real-time and time-lapse with automated capture and one-click video |
| Operating Environment | 10–40°C, 20–95% humidity |
| Objective Lens | 4× / 10× |
| Field of View | 2× (2.53 × 1.90 mm), 4× (1.19 × 0.90 mm), 10× (0.57 × 0.43 mm) |
| Light Source | LED |
| Camera | 5 MP CMOS |
| Stage | Motorized XYZ (camera-moving) |
| Imaging Positions | Multiple |
| Dimensions | 226 × 358 × 215 mm in |
| Country of Origin | South Korea |
| Shipping Weight | 23 lbs |
| Dimensions (L × W × H) | 22 × 19 × 16.5 in |
| HTS Code | 9031.80.9099 |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| CMP-BR10 | EA | EA |
Documentation
More in This Series
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field + Green Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field + Red Fluorescence, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 10X
- Real-Time Automated Live Cell Imaging System, Bright Field, 4X
- Real-Time Automated Live Cell Imaging System, Bright Field, 2X
View all Live-Cell Imaging Systems →
Why Buy From LabSupplies.com
LabSupplies.com ships the Celloger Mini Plus as an authorized Yamato Scientific dealer, so every unit is genuine and covered by the manufacturer warranty. Order directly and our lab-equipment specialists are available for spec questions before you commit.
- Authorized Yamato Scientific dealer — genuine unit with full manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Dedicated lab-equipment specialists for technical and spec questions.
Frequently Asked Questions
What is the operating environment range for the Celloger Mini Plus?
It operates from 10–40°C and 20–95% humidity, matching standard CO2 incubator conditions for live-cell culture.
Will this system fit inside a standard CO2 incubator?
Yes. The unit measures 226 × 358 × 215 mm and weighs 23 lb, designed to fit a standard CO2 incubator and move in and out easily during experiments.
What imaging modes and fluorescence channel does it support?
It supports brightfield plus red fluorescence, with 525/30 excitation and 570 lp emission, for both label-free and red-labeled live-cell imaging.
What magnification and field of view are available?
The system uses 4× and 10× objectives. Field of view ranges from 1.19 × 0.90 mm at 4× to 0.57 × 0.43 mm at 10×, with 2× imaging at 2.53 × 1.90 mm.
How does it capture multiple positions without disturbing cells?
A motorized XYZ camera-moving stage repositions the 5 MP CMOS camera while the vessel stays stationary, keeping samples in a steady state for stable growth and multi-position capture.
What are the electrical and power requirements?
Contact for specification. Our lab-equipment specialists can confirm electrical requirements for your facility before you order.
