Temporarily unavailable. Yamato Scientific America has temporarily suspended sales of the ULF and LTF freezer series to comply with EPA and CARB refrigerant requirements. Yamato is replacing them with the VUF and VLF series.
Why order the LTF101CP from LabSupplies.com

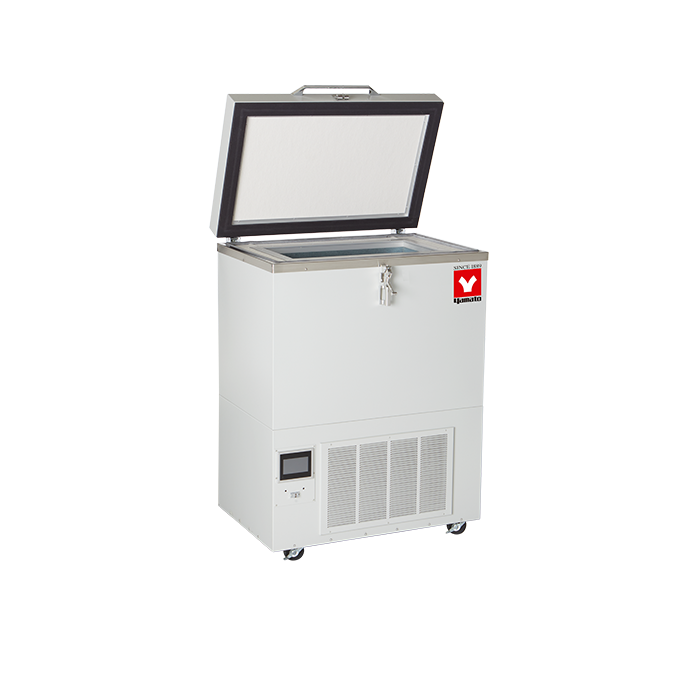

Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost Overview
The Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 3 cu.ft., Manual Defrost (model LTF101CP) is a laboratory chest freezer from Yamato Scientific, stocked by LabSupplies.com as an authorized dealer. A touch-screen digital controller, audible and visual alarms, remote alarm contacts, USB and Ethernet ports, data acquisition, alarm battery back-up, and a 1/2 inch access port all ship standard. Capacity reaches 3 cu.ft. (83 L).
Electrical options cover 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Exterior dimensions measure 34.5 × 25.25 × 48 inches, and shipping weight is 500 lbs. Yamato Scientific manufactures this freezer in the USA. UL Listed certification applies, and every unit is tested for 7 days before shipment.
Key Features
- Touch-screen control: displays set point and chamber temperature, logs data downloadable via USB or FTP, and supports VNC remote access from a PC or smart device.
- Alarm system: battery-operated audible and visual alerts trigger on mechanical or electrical failure, with over- and under-temperature settings, a silencing switch, and a battery test switch.
- Remote notification: Hi/Low alarms send email and SMS messages, while alarm-relay and power-failure dry contacts enable remote hook-up.
- Access port: 1/2 inch porthole in the left-hand cabinet wall, supplied with plugs.
How to Choose the Right Low-Temp Freezer
Selecting a low-temperature freezer means matching the unit to your storage volume, target temperature, and lab infrastructure. Weigh these factors before you order.
- Capacity: match interior volume and rack count to your sample load; this model offers 3 cu.ft. (83 L) and accepts up to 8 racks.
- Temperature range: confirm your protocol fits the freezer's window; this unit operates from 0°C to -40°C.
- Voltage and power: verify your site supports the configuration, offered here as 115V, 208V, 230V at 60 Hz, or 220V at 50/60 Hz, single-phase.
- Footprint: plan bench or floor space against exterior dimensions of 34.5 × 25.25 × 48 inches.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 3 cu.ft. |
| Temperature Range | 0°C to -40°C |
| Defrost | Manual |
| Interior Capacity | 83 L / 3 cu.ft. |
| Rack Capacity | 8 racks |
| Interior Dimensions | 24" × 12" × 18" (61 × 31 × 46 cm) |
| Exterior Dimensions | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) |
| Temperature Control System | Touch-screen control displaying set point and chamber temperature; Hi/Low alarm with email and SMS notification; alarm-relay and power-failure dry contacts; battery back-up; viewable temperature graph; data logging downloadable via USB or FTP; multi-level security; VNC remote access via PC or smart devices |
| Access Port | 1/2" porthole in the left-hand side of the cabinet, with plugs |
| Refrigeration System | Single-stage system with one hermetic compressor |
| Refrigerant | CFC- & HCFC-free |
| Alarm System | Battery-operated alarm emits an audible and visual signal on mechanical or electrical failure; over- and under-temperature settings, alarm silencing switch, and battery test switch; relay provided for remote alarm hook-up |
| Performance Testing | Every freezer is fully tested for 7 days under demanding conditions; constant low setpoint guaranteed in warm (+30°C) ambient environments |
| Electrical Requirements | 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase |
| Optional Accessories | CO₂ and LN₂ back-up system; racks; cold safety gloves |
| Material | Chamber is 14-ga. Zinc coated galvanized steel. Exterior is 16-ga. steel. Power coated cool gray |
| Country of Origin | USA |
| GTIN (Barcode) | 797059930562 |
| Shipping Weight | 500 lbs |
| Shipping Dimensions (L × W × H) | 46 × 41 × 55 in |
| Component Size | 3 CF |
| Other Certification | UL Listed |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare LTF Series Models
| Model | Capacity | Racks | Interior (W × D × H) | Exterior | Shipping weight |
|---|---|---|---|---|---|
| LTF101CP (this model) | 3 cu.ft. | 8 racks | 24" × 12" × 18" (61 × 31 × 46 cm) | 34.5" × 25.25" × 48" (87 × 64 × 121 cm) | 500 lbs |
| LTF201CP | 5 cu.ft. | 15 racks | 30" × 18" × 16" (76 × 46 × 40 cm) | 40.5" × 31" × 47" (102 × 81 × 119 cm) | 525 lbs |
| LTF301CP | 9 cu.ft. | 16 racks | 45.5" × 16" × 20" (115 × 40 × 50 cm) | 57.5" × 29" × 46.5" (146 × 73 × 116 cm) | 675 lbs |
| LTF401CP | 12 cu.ft. | 27 racks | 55" × 19" × 20" (139 × 48 × 50 cm) | 65.5" × 32" × 47.5" (166 × 81 × 120 cm) | 825 lbs |
| LTF501CP | 14 cu.ft. | 30 racks | 62" × 20" × 20" (157 × 50 × 50 cm) | 72.5" × 33" × 47.5" (184 × 83 × 120 cm) | 900 lbs |
| LTF601CP | 17 cu.ft. | 36 racks | 69" × 20" × 21" (175 × 50 × 53 cm) | 81.25" × 33.5" × 48.5" (206 × 85 × 123 cm) | 975 lbs |
| LTF701CP | 21 cu.ft. | 42 racks | 81" × 21.5" × 21" (205 × 54 × 53 cm) | 91" × 36" × 49" (231 × 91 × 124 cm) | 1075 lbs |
| LTF801CP | 22 cu.ft. | 36 racks | 67" × 19" × 30" (170 × 48 × 76 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) | 1075 lbs |
| LTF901CP | 27 cu.ft. | 48 racks | 67" × 23" × 31.25" (170 × 57 × 79 cm) | 98" × 36" × 43.5" (248 × 91 × 110 cm) | 1125 lbs |
All models in this group share: temperature range 0°C to -40°C.
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| LTF-101CP | 797059930562 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | LTF-101CP |
| UNSPSC | 41103000 — Ultra Low Freezer |
| HTS code | 8418.69.0180 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato LTF Platinum Series Low-Temperature Freezer brochure (PDF, 552 KB)
- Yamato Scientific America product page
More in This Series
- Yamato LTF201CP Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
- Yamato LTF301C Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Yamato LTF401C Chest Style Low Temperature Freezers 0°C To -40°C, 12 cu.ft., Manual Defrost
- Yamato LTF401U Upright Style Low Temperature Freezers 0°C To -40°C, 13 cu.ft., Manual Defrost
- Yamato LTF301CP Platinum Chest Style Low Temperature Freezers 0°C To -40°C, 9 cu.ft., Manual Defrost
- Yamato LTF201C Chest Style Low Temperature Freezers 0°C To -40°C, 5 cu.ft., Manual Defrost
View all Low-Temperature Freezers →
Frequently Asked Questions
What temperature range does the Yamato LTF101CP reach?
The LTF101CP operates from 0°C to -40°C. A single-stage hermetic compressor and CFC- and HCFC-free refrigerant maintain the setpoint, holding a constant low temperature even in warm +30°C ambient conditions.
How much storage capacity does the LTF101CP provide?
The freezer offers 3 cu.ft. (83 L) of interior volume and accepts up to 8 racks. Interior space measures 24 × 12 × 18 inches, while the exterior measures 34.5 × 25.25 × 48 inches.
What voltage does the LTF101CP require?
The unit supports 115V, 208V, and 230V at 60 Hz single-phase, plus 220V at 50/60 Hz single-phase. Confirm the configuration matching your site power before ordering.
How does the LTF101CP handle temperature monitoring and alarms?
A touch-screen controller displays set point and chamber temperature, logs data for USB or FTP download, and offers VNC remote access. Hi/Low alarms send email and SMS notifications, backed by battery power and dry contacts for remote hook-up.
Does the LTF101CP use manual defrost and is it certified?
Yes, the LTF101CP uses manual defrost. This freezer is UL Listed and undergoes 7 days of testing under demanding conditions before shipment.
What is the UNSPSC code for the Yamato LTF101CP?
The Yamato LTF101CP is classified under UNSPSC 41103000 (ultra low freezer).
Where is the Yamato LTF101CP manufactured?
Yamato Scientific lists USA as the country of origin for the LTF101CP.
Is there a spec sheet or brochure for the Yamato LTF101CP?
Yes. The Yamato LTF Platinum Series Low-Temperature Freezer brochure (552 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato LTF101CP compare with the other LTF Series models?
Yamato builds this LTF Series line in 9 sizes: 3 cu.ft. (LTF101CP), 5 cu.ft. (LTF201CP), 9 cu.ft. (LTF301CP), 12 cu.ft. (LTF401CP), 14 cu.ft. (LTF501CP), 17 cu.ft. (LTF601CP), 21 cu.ft. (LTF701CP), 22 cu.ft. (LTF801CP) and 27 cu.ft. (LTF901CP). All share temperature range 0°C to -40°C. The comparison table on this page lists capacity, racks, interior (w × d × h), exterior and shipping weight side by side.
What are the interior dimensions of the Yamato LTF101CP?
The Yamato LTF101CP chamber measures 24" × 12" × 18" (61 × 31 × 46 cm) inside (W × D × H).
How many storage racks does the Yamato LTF101CP hold?
Yamato rates the LTF101CP at 8 racks in 83 L / 3 cu.ft. of storage.
What refrigeration system does the Yamato LTF101CP use?
The Yamato LTF101CP uses single-stage system with one hermetic compressor, CFC- & HCFC-free refrigerant and manual defrost.
What optional accessories are available for the Yamato LTF101CP?
Yamato offers these options for the LTF101CP: CO₂ and LN₂ back-up system; racks; cold safety gloves.
What are the electrical requirements for the Yamato LTF101CP?
Yamato specifies 115V / 208V / 230V, 60 Hz, 1-phase; 220V, 50/60 Hz, 1-phase for the LTF101CP.
What are the shipping dimensions and weight of the Yamato LTF101CP?
Yamato's shipping data lists the LTF101CP at 46 × 41 × 55 in and 500 lb packed.
