Natural Convection Oven 74L Overview

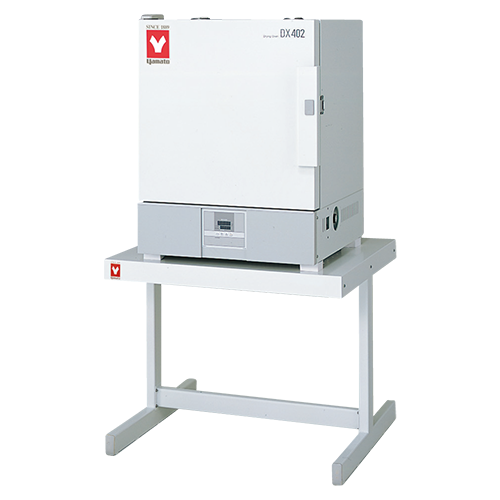

The Natural Convection Oven 74L (Yamato Scientific model DX402C) is a constant-temperature drying oven offering a 74 L chamber and an operating range of ambient +5 to 300°C. Built for routine drying, curing, and sterilization, this oven pairs digital PID control with simple daily operation. LabSupplies.com supplies it as an authorized Yamato Scientific dealer.
A steel-plate SPCC exterior with powder-coat finish protects the unit on busy benchtops, while the stainless steel interior resists corrosion and wipes clean between runs. Digital PID regulation holds temperature accurately across the chamber, and a calibration offset lets technicians align readings to a reference probe.
Self-diagnostic safety functions watch the heating circuit during unattended runs. Choose 115V (DX402C) or 220V (DX412C) to match site power. Measuring 36 × 36 × 39 in and weighing 170 lbs, the oven is manufactured under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified systems.
Key Features
- Wide temperature range: regulates from ambient +5 up to 300°C for drying, curing, and routine sterilization.
- Digital PID control: maintains accurate, stable chamber temperature across the work cycle.
- Calibration offset: aligns the displayed temperature to a reference probe for verified accuracy.
- Self-diagnostic safety: built-in monitoring functions guard unattended heating operations.
- Durable construction: stainless steel interior with a powder-coated SPCC steel exterior for long service life.
- 74 L chamber: standard-capacity workspace suited to general laboratory throughput.
How to Choose the Right Convection Oven
Matching a convection oven to your workflow comes down to a few measurable axes. Weigh the points below against your sample volume, process temperatures, and facility power before ordering.
- Capacity: a 74 L chamber handles moderate batch sizes; confirm your largest tray or glassware load fits the interior.
- Temperature range: verify your process stays within ambient +5 to 300°C, the operating window of this model.
- Control type: digital PID control with a calibration offset supports repeatable, documentable results for QC work.
- Voltage: select 115V (DX402C) or 220V (DX412C) to match the circuit at your installation point.
- Footprint and weight: at 36 × 36 × 39 in and 170 lbs, plan adequate bench or floor space and clearance.
- Safety: self-diagnostic functions matter for labs running overnight or unattended drying cycles.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 74 L |
| Voltage | 115V |
| Circulation Method | Natural gravity convection |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel |
| Exterior Material | Electro-galvanized steel sheet with melamine resin baked finish |
| Heat Insulation | Glass wool |
| Safety Devices | Self-diagnostic functions (sensor error, memory error, input/measured temperature error, automatic overheat prevention); key lock; independent overheat prevention device; overcurrent leakage breaker |
| Temperature Accuracy | ±1°C (at 300°C) *2 |
| Temperature Distribution | ±10°C (at 300°C) *2 |
| Heater | Iron-chrome wire heater, 0.9 kW |
| Max. Temperature Reaching Time | Approx. 60 min |
| Operating Temperature Range | ambient +5 to 300°C *1 |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059926251 |
| Shipping Weight | 170 lbs |
| Dimensions (L × W × H) | 36 × 36 × 39 in |
| Component Size | 74 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DX-402C | 115V | EA |
| DX-412C | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 27L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
Order the Yamato DX402C convection oven directly from LabSupplies.com and receive a genuine, factory-built unit backed by the manufacturer warranty. Our lab-equipment specialists can answer spec questions before you place the order.
- Authorized Yamato Scientific dealer: every unit is genuine and carries the manufacturer warranty.
- In stock: ready to ship without backorder delays.
- Ships from USA inventory: fast domestic fulfillment to your facility.
- Specialist support: dedicated lab-equipment experts help confirm fit and specifications.
Frequently Asked Questions
What is the temperature range of the Yamato DX402C convection oven?
The DX402C operates from ambient +5 to 300°C. Digital PID control with a calibration offset holds temperature accurately throughout that range, supporting drying, curing, and sterilization tasks.
What is the chamber capacity and overall footprint?
The chamber holds 74 L. Overall dimensions are 36 × 36 × 39 in (L × W × H), and the unit weighs 170 lbs, so plan adequate bench or floor space and clearance before installation.
What is the difference between the DX402C and DX412C?
Voltage is the only difference. The DX402C runs on 115V and the DX412C runs on 220V; both share the same 74 L chamber, ambient +5 to 300°C range, and digital PID control. Select the model that matches your site power.
What materials are used in the oven construction?
The interior is stainless steel for corrosion resistance and easy cleaning. Its exterior is steel plate (SPCC) with a powder-coat finish that protects the unit on the bench.
Does this oven use natural convection or forced air?
This is a natural (gravity) convection oven. Air circulates without a fan, which reduces sample disturbance and particle movement inside the chamber during drying.
Is the DX402C manufactured under recognized quality standards?
Yes. It is produced under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified management systems. Certification documents are available on request.
