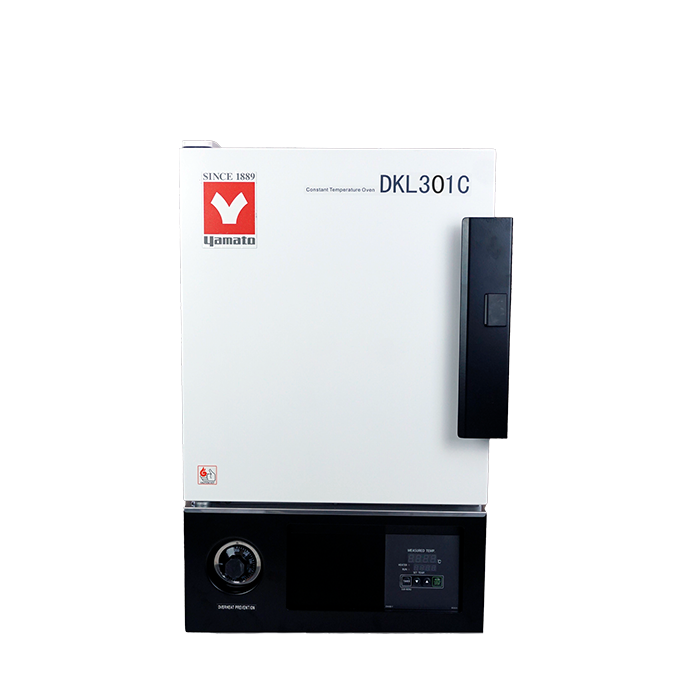

Forced Convection Oven 27L Overview
The Forced Convection Oven 27L from Yamato Scientific is an economical constant-temperature convection oven for everyday lab heating and drying. Offered as model DKL301C (115V) or DKL311C (220V), it pairs a 27 L chamber with an operating range of ambient +10 to 260°C. LabSupplies.com supplies this oven as an authorized Yamato Scientific dealer.
Forced-air circulation drives uniform heat across the chamber for consistent results sample to sample. Interior surfaces use stainless steel for cleanability and corrosion resistance, while the exterior is SPCC steel plate with a powder-coated finish. Digital setup through dedicated operation-menu keys and the ▲/▼ keys keeps temperature targeting simple.
Operators select from four modes — Fixed Temperature, Quick Auto Stop, Auto Stop, and Auto Start — to match each protocol. Footprint measures 36 × 36 × 37 inches at a shipping weight of 135 lbs. Manufacturing follows ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management systems.
Key Features
- Four operating modes: Fixed Temperature, Quick Auto Stop, Auto Stop, and Auto Start cover routine and timed heating workflows.
- Digital control: set parameters through dedicated operation-menu keys or the ▲/▼ keys for repeatable temperature targeting.
- Temperature range: ambient +10 to 260°C suits drying, curing, and constant-temperature applications.
- 27 L stainless steel chamber: corrosion-resistant interior built for easy cleaning and consistent performance.
- Forced convection airflow: circulated air promotes uniform heat distribution throughout the chamber.
- Built-in safety features: protective functions support unattended and repeated daily use.
How to Choose the Right Convection Oven
Matching an oven to your protocol means weighing chamber size, heat range, control style, and site power before you commit. Use the criteria below to confirm this 27 L Yamato unit fits your bench and workflow.
- Capacity: a 27 L chamber handles small batches, glassware drying, and individual samples; size the volume to your typical load and throughput.
- Temperature range: ambient +10 to 260°C covers most drying, curing, and constant-temperature tasks — verify your top setpoint falls within it.
- Control type: digital menu-key and ▲/▼ setup gives repeatable settings; choose digital when protocol consistency matters.
- Voltage: select DKL301C for 115V circuits or DKL311C for 220V to match your facility power.
- Footprint: confirm bench or floor clearance for the 36 × 36 × 37 inch dimensions and 135 lb weight.
- Safety and modes: Auto Stop and Quick Auto Stop modes support timed, unattended runs when uptime and protection are priorities.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 27 L |
| Voltage | 115V |
| Circulation Method | Forced air circulation |
| Temperature Accuracy | ±1°C (at 260°C) *2 |
| Temperature Distribution | ±2.5°C (at 260°C) *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel (SUS430) |
| Exterior Material | Steel plate SPCC (powder coating) |
| Heat Insulation | Glass wool |
| Safety Devices | Self-diagnostic functions (sensor error, memory error, automatic overheat prevention, measured-temperature error); MCB with overcurrent protector; independent overheat prevention device |
| Heater | SUS304 pipe heater, 0.8 kW |
| Operating Temperature Range | ambient +10 to 260°C *1 |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932443 |
| Shipping Weight | 135 lbs |
| Dimensions (L × W × H) | 36 × 36 × 37 in |
| Component Size | 27 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DKL-301C | 115V | EA |
| DKL-311C | 220V | EA |
Documentation
More in This Series
- Natural Convection Oven 28L
- Natural Convection Oven 74L
- Natural Convection Oven 153L
- Natural Convection Oven Programmable 99L
- Natural Convection Oven Programmable 162L
- High Temperature Natural Convection Oven Programmable 13.75L
- Natural Convection Glassware Drying Oven 92L
- Natural Convection Glassware Drying Oven With Sterilization Lamp 92L
- Natural Convection Glassware Drying Oven 445L
- Natural/Forced Convection Glassware Drying Oven With Sterilization Lamp 445L
- Forced Convection Oven 90L
- Forced Convection Oven 150L
- Forced Convection Oven Programmable 27L
- Forced Convection Oven Programmable 90L
- Forced Convection Oven Programmable 150L
- Forced Convection Oven Programmable 300L
- Forced Convection Oven Programmable 535L
- Forced Convection Oven Programmable Energy Saving 90L
- Forced Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
- Forced / Natural Convection Oven Programmable Energy Saving 27L With External Transformer
- Forced / Natural Convection Oven Programmable Energy Saving 90L
- Forced / Natural Convection Oven Programmable Energy Saving 150L
- Forced Convection Oven Programmable Energy Saving 300L
- Forced Convection Oven Programmable Energy Saving 540L
Why Buy From LabSupplies.com
Order the Forced Convection Oven 27L directly from LabSupplies.com and receive a genuine Yamato Scientific unit backed by manufacturer support. Our team handles spec questions before you order so the right voltage and configuration ship the first time.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Voltage selection made simple: choose 115V or 220V at checkout.
- Lab-equipment specialists: direct help with specifications and fit before purchase.
Frequently Asked Questions
What is the temperature range of the DKL301C convection oven?
The DKL301C operates from ambient +10°C up to 260°C. This range covers routine drying, curing, and constant-temperature heating tasks in most labs.
What is the chamber capacity and footprint of this oven?
The chamber holds 27 L. External dimensions are 36 × 36 × 37 inches and the unit ships at 135 lbs, so confirm bench or floor clearance before installation.
What is the difference between the DKL301C and DKL311C?
The only difference is voltage. DKL301C runs on 115V and DKL311C runs on 220V; chamber size, temperature range, controls, and construction are identical.
What materials are used in the oven construction?
The interior is stainless steel for cleanability and corrosion resistance. The exterior uses SPCC steel plate with a powder-coated finish.
What control and operating modes does this oven offer?
Settings are made digitally through dedicated operation-menu keys or the ▲/▼ keys. Four modes are available: Fixed Temperature, Quick Auto Stop, Auto Stop, and Auto Start.
