Why order the DKL601C from LabSupplies.com

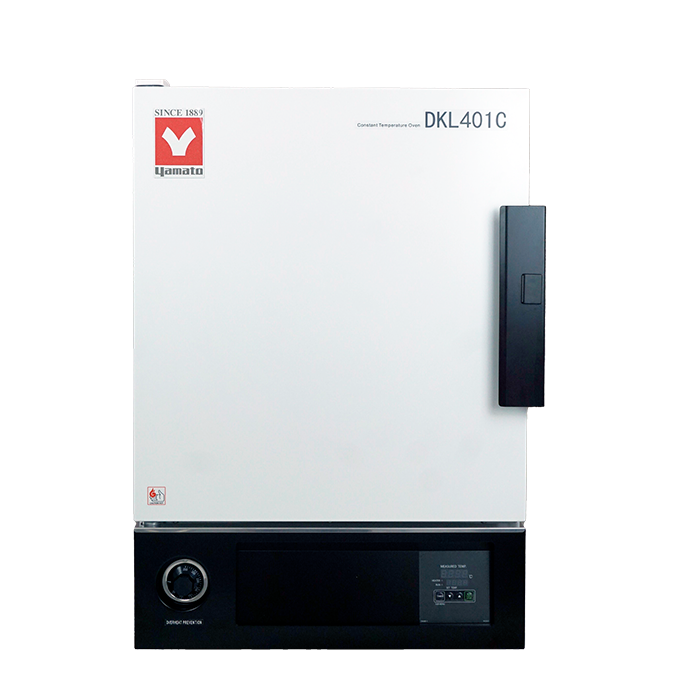

Forced Convection Oven 150L Overview
Four operating modes — Fixed temperature, Quick Auto stop, Auto stop, and Auto start — are set digitally through dedicated menu keys or the ▲/▼ keys. Yamato lists external dimensions (W × D × H) of 710 × 650 × 880 mm (28.0 × 25.6 × 34.6 in); packed for shipping it measures 36 × 36 × 45 in at 233 lb.
Key Features
- Digital control: settings entered through dedicated operation menu keys or the ▲/▼ keys for straightforward adjustment.
- Voltage options: DKL601C runs on 115V and DKL611C on 220V to match available site power.
How to Choose the Right Convection Oven
- Temperature range: confirm your protocols stay within ambient +10 to 260°C before specifying the unit.
- Footprint: Yamato lists external dimensions (W × D × H) of 710 × 650 × 880 mm (28.0 × 25.6 × 34.6 in); packed for shipping it measures 36 × 36 × 45 in at 233 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 150 L |
| Voltage | 115V |
| Circulation Method | Forced air circulation |
| Temperature Accuracy | ±1°C (at 260°C) *2 |
| Temperature Distribution | ±2.5°C (at 260°C) *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Interior Material | Stainless steel (SUS430) |
| Exterior Material | Steel plate SPCC (powder coating) |
| Heat Insulation | Glass wool |
| Safety Devices | Self-diagnostic functions (sensor error, memory error, automatic overheat prevention, measured-temperature error); MCB with overcurrent protector; independent overheat prevention device |
| Heater | SUS304 pipe heater, 1.5 kW |
| Operating Temperature Range | ambient +10 to 260°C *1 |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932481 |
| Shipping Weight | 233 lbs |
| External Dimensions (W × D × H) | 710 × 650 × 880 mm (28.0 × 25.6 × 34.6 in) |
| Shipping Dimensions (L × W × H) | 36 × 36 × 45 in |
| Component Size | 150 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare DKL Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| DKL301C | 27 L | 410 × 450 × 680 mm (16.1 × 17.7 × 26.8 in) | 135 lbs |
| DKL401C | 90 L | 560 × 600 × 820 mm (22.0 × 23.6 × 32.3 in) | 202 lbs |
| DKL601C (this model) | 150 L | 710 × 650 × 880 mm (28.0 × 25.6 × 34.6 in) | 233 lbs |
All models in this group share: temperature range ambient +10 to 260°C; accuracy ±1°C (at 260°C).
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| DKL-601C | 115V | 797059932481 |
| DKL-611C | 220V | 797059932498 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | DKL-601C, DKL-611C |
| UNSPSC | 41104501 — Laboratory mechanical convection ovens |
| HTS code | 8514.19.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato DKL Series Forced Convection Oven brochure (PDF, 830 KB)
- Yamato Scientific America product page
Parts & Accessories for the DKL Series
Genuine Yamato DKL-series parts. Fitment is taken from each part's Yamato description.
More in This Series
- Yamato DG400C Natural Convection Glassware Drying Oven 92L
- Yamato DVS403C Natural Convection Oven Programmable 99L
- Yamato DX602C Natural Convection Oven 153L
- Yamato DKL401C Forced Convection Oven 90L
- Yamato DKN303 Forced Convection Oven Programmable 27L
- Yamato DVS603C Natural Convection Oven Programmable 162L
Frequently Asked Questions
What is the chamber capacity and external footprint?
The chamber holds 150 L. Yamato lists external dimensions (W × D × H) of 710 × 650 × 880 mm (28.0 × 25.6 × 34.6 in); packed for shipping it measures 36 × 36 × 45 in at 233 lb.
What is the difference between the DKL601C and DKL611C?
Voltage is the only difference. DKL601C runs on 115V while DKL611C runs on 220V; both share the 150 L chamber, ambient +10 to 260°C range, and identical controls.
What operating modes does this oven offer?
Four modes are available: Fixed temperature, Quick Auto stop, Auto stop, and Auto start. Settings are entered digitally through dedicated menu keys or the ▲/▼ keys.
Is this oven covered by Yamato's 1-year warranty?
Yes. LabSupplies.com is an authorized Yamato Scientific dealer, so each unit is genuine and backed by Yamato's 1-year warranty, shipping from the USA.
Which replacement parts and accessories are listed for the Yamato DKL601C?
Yamato lists 1 part for the DKL Series: 281596. It is linked with its description in the parts table on this page.
What is the UNSPSC code for the Yamato DKL601C?
The Yamato DKL601C is classified under UNSPSC 41104501 (laboratory mechanical convection ovens).
Where is the Yamato DKL601C manufactured?
Yamato Scientific lists China as the country of origin for the DKL601C.
Is there a spec sheet or brochure for the Yamato DKL601C?
Yes. The Yamato DKL Series Forced Convection Oven brochure (830 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato DKL601C compare with the other DKL Series models?
Yamato builds this DKL Series line in 3 sizes: 27 L (DKL301C), 90 L (DKL401C) and 150 L (DKL601C). All share temperature range ambient +10 to 260°C and accuracy ±1°C (at 260°C). The comparison table on this page lists capacity, exterior and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato DKL601C?
Yamato rates the DKL601C for temperature accuracy at ±1°C (at 260°C) and temperature distribution at ±2.5°C (at 260°C).
What safety devices does the Yamato DKL601C have?
Yamato lists these safety devices for the DKL601C: self-diagnostic functions (sensor error, memory error, automatic overheat prevention, measured-temperature error); MCB with overcurrent protector; independent overheat prevention device.
