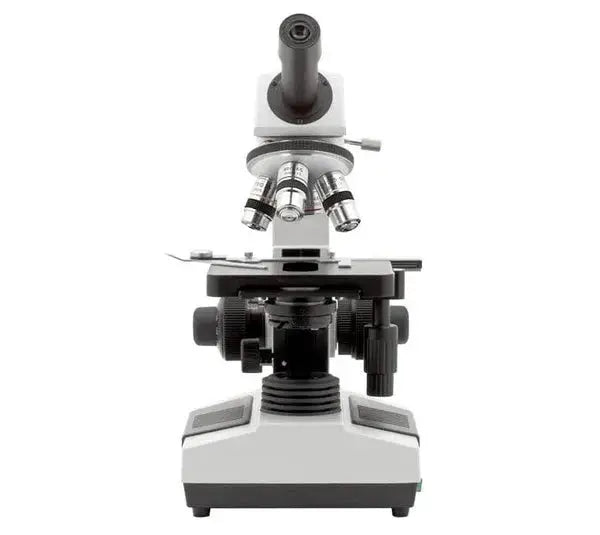

Experience professional-level diagnostics with the medical grade microscope LED trusted by physician clinics nationwide. The LW Scientific R3M-MN4A-DAL3 Revelation III delivers excellent imaging quality with titanium-finished DIN achromatic optics and energy-efficient LED illumination. Perfect for medical clinics, veterinary practices, and educational institutions requiring reliable, high-contrast specimen analysis.
Specifications
| Specification | Detail |
|---|---|
| Model Number | R3M-MN4A-DAL3 |
| Head Configuration | Monocular, 30° incline, 360° rotation |
| Eyepiece | 10X/18 widefield |
| Objectives | DIN achromatic 4X, 10X, 40X, 100XR (oil) |
| Nosepiece | Quadruple forward-facing, ball bearing mounted |
| Total Magnification | 40X to 1000X |
| Illumination | Variable LED 3W (30,000-hour lifespan) |
| Condenser | Moveable Abbe 1.25 NA with iris diaphragm |
| Stage | Mechanical, 140mm x 130mm, coaxial controls |
| Focus System | Coaxial coarse (30mm range) and fine (2μm graduation) |
| Power | 100-240V AC / 50-60Hz auto-switching |
| Dimensions | 15"H x 9"L x 7"W (380 x 230 x 178mm) |
| Weight | 14 lbs (6.4kg) |
| Special Features | 30-year anti-fungal coating, titanium finish |
Compare the Revelation III-A Family
| Model | Head | Optics | Best for |
|---|---|---|---|
| R3M-MN4A-DAL3 (this model) | Monocular | DIN achromatic | Entry-level clinical |
| R3M-BN4A-DAL3 | Binocular | DIN achromatic | Everyday clinical & vet |
| R3M-TN4A-DAL3 | Trinocular | DIN achromatic | Camera-ready imaging |
| R3M-DN4A-DAL3 | Dual-view (2 heads) | DIN achromatic | Teaching / instruction |
| R3M-BN4A-DPL3 | Binocular | DIN PLAN (flat field) | Flat-field clarity |
| R3M-TN4A-DPL3 | Trinocular | DIN PLAN (flat field) | Flat-field + camera |
| R3M-TN4A-DALP | Trinocular | Achromatic | Portable, battery-powered |
| R3M-BN4A-DALP | Binocular | Achromatic | Portable, battery-powered |
All Revelation III-A models: 4 objectives, 40×–1000×, LED illumination.
Frequently Asked Questions
What viewing head does the R3M-MN4A-DAL3 have?
The R3M-MN4A-DAL3 has a monocular head.
What is the R3M-MN4A-DAL3 designed for?
The R3M-MN4A-DAL3 is designed for clinical, research, and veterinary laboratories.
Parts and accessories for the Revelation III-A Compound Microscope
LW Scientific lists these 23 part numbers for R3M-MN4A-DAL3:
| Part number | Part | Type | Price |
|---|---|---|---|
| MSP-BLBH-1220 | 12 V 20 W Halogen Bulb, G4 Bi-Pin | Microscope Bulbs, LED Assemblies & Power | $10.80 |
| R3B-BTR7-LED3 | LED Base Tray for Revelation III, 110-220 V | Microscope Bulbs, LED Assemblies & Power | $110.40 |
| R3P-BTRB-LEDP | LED Electronics Base Tray for Revelation III, 5 V DC USB | Microscope Bulbs, LED Assemblies & Power | $129.00 |
| SNR-FUSE | Microscope Fuse, 0.5 A 250 V | Microscope Bulbs, LED Assemblies & Power | $7.20 |
| MSP-CVRN-DUST | Black Nylon Microscope Dust Cover | Microscope Cases, Covers & Slides | $13.20 |
| R3E-1018-WRET | 10x/18 mm Eyepiece with Reticle, Tapered | Microscope Eyepieces | $98.40 |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces | $50.40 |
| MSE-1020-2377 | 10x/20 mm Super-Wide Eyepiece | Microscope Eyepieces | $58.80 |
| MSE-1677-2377 | 16x Eyepiece | Microscope Eyepieces | $58.80 |
| R3H-BSFD-77NE | Binocular Siedentopf Head for Revelation III | Microscope Heads & Camera Tubes | $270.00 |
| R3H-MOND-77NE | Monocular Head for Revelation III | Microscope Heads & Camera Tubes | $166.80 |
| R3H-TRID-ETNE | Trinocular Head for Revelation III with Eyetube & C-Mount | Microscope Heads & Camera Tubes | $358.80 |
| R3O-100X-DAOL | 100xR DIN Achromatic Oil Objective | Microscope Objectives | $130.80 |
| R3O-100X-DPOL | 100xR DIN Plan Oil Objective | Microscope Objectives | $202.80 |
| R3O-010X-DADR | 10x DIN Achromatic Objective | Microscope Objectives | $58.80 |
| R3O-010X-DPDR | 10x DIN Plan Objective | Microscope Objectives | $86.40 |
| R3O-020X-DADR | 20x DIN Achromatic Objective | Microscope Objectives | $166.80 |
| R3O-040X-DADR | 40xR DIN Achromatic Objective | Microscope Objectives | $94.80 |
| R3O-040X-DPDR | 40xR DIN Plan Objective | Microscope Objectives | $138.00 |
| R3O-004X-DADR | 4x DIN Achromatic Objective | Microscope Objectives | $45.60 |
| R3O-004X-DPDR | 4x DIN Plan Objective | Microscope Objectives | $62.40 |
| R3O-SET7-DA77 | DIN Achromatic Objective Set, 4x/10x/40x/100x | Microscope Objectives | $238.80 |
| R3O-SET7-DP77 | DIN Plan Objective Set, 4x/10x/40x/100x | Microscope Objectives | $418.80 |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
