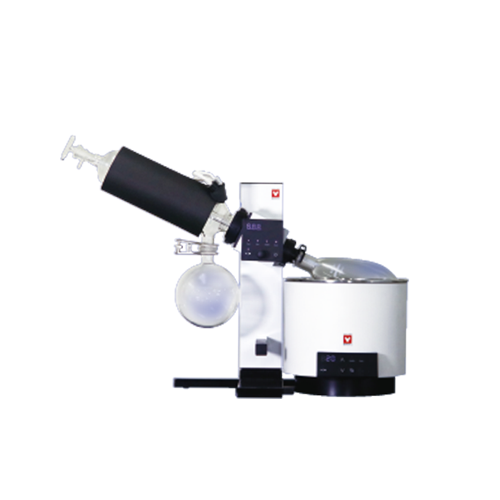

Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A Overview
Glassware Set A (Standard Diagonal), model RG202A, is a complete replacement glassware assembly for Yamato Scientific rotary evaporators. Built around a traditional diagonal condenser, this Set A configuration suits distillation workflows that pair with an external chiller. LabSupplies.com, an authorized dealer, supplies the genuine Yamato Scientific assembly.
The set ships as a matched group of borosilicate distillation components: cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, and a condenser insulation kit. A condenser bracket and hex wrench are included for sets B and C, so the kit covers multiple mounting needs.
RG202A is engineered to fit Yamato RE202A, RE212A, REV202MA, and REV212MA evaporator drive units. Country of origin is China. Match the set to your installed drive unit to maintain proper seal geometry and chiller pairing.
Key Features
- Diagonal condenser (Set A): traditional vertical-diagonal condenser designed for use with a recirculating chiller.
- Complete distillation assembly: includes cooling condenser, rotary joint, evaporation flask, and receiving flask.
- Sealing and clamping hardware: ball-joint clamp, flask clip, and vacuum seal supplied for leak-tight operation.
- Condenser insulation kit: included to support temperature control during distillation.
- Bracket and tooling: condenser bracket and hex wrench provided for sets B and C.
- Verified compatibility: fits Yamato RE202A, RE212A, REV202MA, and REV212MA drive units.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator glassware set means matching the assembly to your drive unit and your cooling strategy. The right configuration protects seal integrity and distillation efficiency.
- Drive-unit compatibility: confirm the set matches your installed evaporator model so flask and joint geometry align.
- Condenser type: diagonal (Set A) suits chiller-based cooling, while other condenser styles serve dry-ice or reflux workflows.
- Cooling source: Set A is built for use with a recirculating chiller, so verify your lab has one available.
- Flask configuration: match evaporation and receiving flask sizes to your batch volumes.
- Sealing components: ensure vacuum seals and clamps are included for leak-tight vacuum distillation.
Specifications
| Specification | Detail |
|---|---|
| Type | Rotary evaporator glassware set |
| Condenser | Set A — traditional diagonal condenser (use with chiller) |
| Included | Cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, condenser insulation kit; condenser bracket and hex wrench for sets B/C |
| Compatible Models | RE-202-A / 212-A and REV-202M-A / 212M-A |
| Country of Origin | China |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| RG-202A | EA | EA |
More in This Series
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And REV-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And REV-202M-A/212M-A
- Rotary Evaporator (Main Unit) Digital
- Vacuum Regulator For Re-202-A/212-A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every RG202A glassware set is genuine and backed by the manufacturer warranty. Order directly and ship from USA inventory without delay.
- Authorized Yamato Scientific dealer supplying genuine glassware sets.
- In stock and ready to ship from USA inventory.
- Backed by the manufacturer warranty.
- Lab-equipment specialists available for compatibility and specification questions.
Frequently Asked Questions
Which Yamato evaporator models does the RG202A set fit?
RG202A fits Yamato RE202A, RE212A, REV202MA, and REV212MA drive units. Confirm your installed model before ordering to ensure correct joint and flask geometry.
What condenser type is included in Set A?
Set A includes a traditional diagonal condenser. It is designed for use with a recirculating chiller rather than dry-ice cooling.
What components come in the RG202A glassware set?
The set includes a cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, and a condenser insulation kit. A condenser bracket and hex wrench are also included for sets B and C.
Do I need a chiller to use this set?
Yes, Set A's diagonal condenser is designed for use with a chiller. Verify your lab has a recirculating chiller available before installation.
Is the RG202A a genuine Yamato Scientific part?
Yes. LabSupplies.com is an authorized Yamato Scientific dealer, so the RG202A is a genuine assembly backed by the manufacturer warranty.
Where is the RG202A glassware set manufactured?
The RG202A glassware set's country of origin is China. It ships from USA inventory through LabSupplies.com.
