Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A Overview

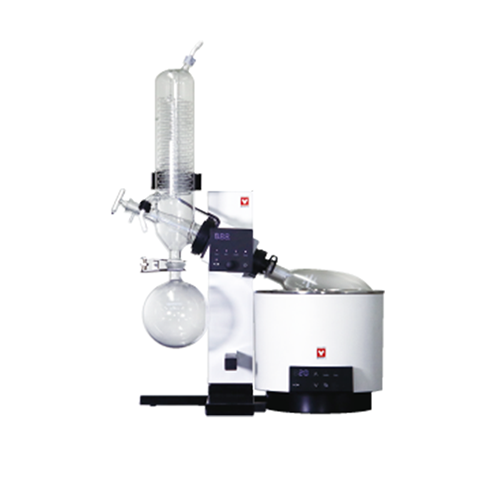

Glassware Set B (Vertical High Boiling Point) for RE202A/212A and REV202MA/212MA is a complete rotary evaporator glassware kit from Yamato Scientific, supplied by LabSupplies.com, authorized dealer. Built around a standard vertical condenser, this Set B configuration targets high-boiling-point distillations where compact bench and hood placement matters.

Each kit arrives ready to assemble with a cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, and a condenser insulation kit. Mounting hardware ships alongside the optics: a condenser bracket and hex wrench are included for Set B and Set C assemblies, simplifying installation on the rotary drive.

Designed as the matched glass train for the RE202A/212A and REV202MA/212MA evaporators, the vertical condenser keeps the footprint tight — three units fit inside a standard fume hood. Country of origin is China. Power requirements are governed by the host evaporator, not the glassware itself.

Key Features

  • Set B vertical condenser: standard vertical configuration suited to high-boiling-point distillations.
  • Space-saving footprint: compact geometry lets three units sit inside a standard fume hood.
  • Complete glass train: cooling condenser, rotary joint, evaporation flask, and receiving flask in one kit.
  • Sealing and clamping: ball-joint clamp, flask clip, and vacuum seal included for leak-resistant operation.
  • Condenser insulation kit: bundled to support stable thermal performance during runs.
  • Mounting hardware: condenser bracket and hex wrench shipped with Set B/C for direct installation.

How to Choose the Right Rotary Evaporator

Glassware sets are matched to specific evaporator drives and distillation chemistry, so selection starts with your host unit and the boiling profile of your solvents. Use the axes below to confirm fit before ordering.

  • Host compatibility: verify the set matches your drive — this kit pairs with RE202A/212A and REV202MA/212MA evaporators.
  • Condenser type: vertical (Set B) configurations favor high-boiling-point solvents and tight hood footprints, while other geometries suit different recovery needs.
  • Boiling-point range: choose condenser surface and orientation that match the volatility of the solvents you distill.
  • Footprint: confirm hood or bench clearance; vertical sets allow multiple stations in one fume hood.
  • Included components: check that flasks, seals, clamps, and mounting hardware match your workflow to avoid separate sourcing.
  • Safety: intact vacuum seals and proper clamping protect against implosion and solvent loss under vacuum.

Specifications

Specification Detail
Type Rotary evaporator glassware set
Condenser Set B — standard vertical condenser, space-saving (three fit in a standard fume hood)
Included Cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, condenser insulation kit; condenser bracket and hex wrench for sets B/C
Compatible Models RE-202-A / 212-A and REV-202M-A / 212M-A
Country of Origin China

Available Sizes and Configurations

SKU Configuration Pack
RG-202B EA EA

More in This Series

Why Buy From LabSupplies.com

LabSupplies.com is an authorized Yamato Scientific dealer, so every glassware set ships as a genuine factory unit backed by the manufacturer warranty. Order directly online and our lab-equipment specialists are on hand for compatibility and spec questions.

  • Authorized Yamato Scientific dealer: genuine glassware with full manufacturer warranty.
  • In stock: ready to ship from USA inventory.
  • Ships from USA: domestic fulfillment for faster delivery.
  • Specialist support: dedicated lab-equipment team for fit and configuration help.

Frequently Asked Questions

Which rotary evaporators is Glassware Set B compatible with?

Set B fits the Yamato RE202A/212A and REV202MA/212MA rotary evaporators. It is the matched vertical-condenser glass train for those drives.

What condenser type does Set B use?

Set B uses a standard vertical condenser. The vertical orientation suits high-boiling-point distillations and keeps the unit compact.

What components are included in the set?

The kit includes a cooling condenser, rotary joint, evaporation flask, receiving flask, ball-joint clamp, flask clip, vacuum seal, and a condenser insulation kit. A condenser bracket and hex wrench are also included for Set B/C assemblies.

How much fume hood space does the set require?

Three units fit inside a standard fume hood thanks to the space-saving vertical design. Confirm clearance for your specific hood before installation.

Does the glassware set require its own power supply?

No — the glassware set has no electrical requirements of its own. Voltage and power are determined by the host RE202A/212A or REV202MA/212MA evaporator.

Where is Glassware Set B manufactured?

Country of origin is China. The set ships from USA inventory as a genuine Yamato Scientific product.
