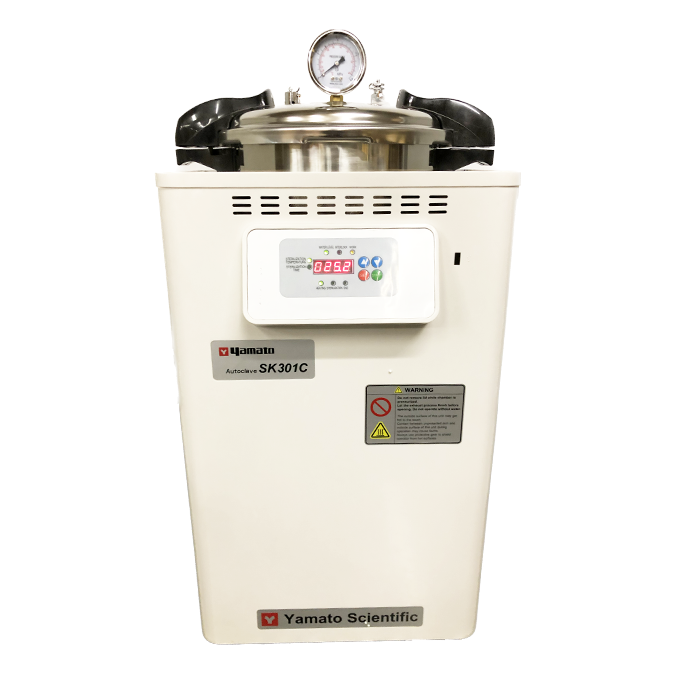

Compact Sterilizer 30L Overview
The Compact Sterilizer 30L (model SK301C) from Yamato Scientific is a benchtop steam autoclave built for research facilities that need reliable sterilization in a small footprint. Sold by LabSupplies.com, authorized dealer, this unit delivers a 30 L chamber, a 50 to 126°C temperature setting range, and a 2000W pipe heater for fast, even steam generation.
A SUS304 stainless steel chamber and cover resist corrosion and repeated steam cycles, while the exterior uses temperature-resistant engineering plastics. Operators program runs through a 4-digit LED display with a 0 to 999 minute timer, plus adjustable sterilizing and temperature settings for varied loads.
Each sterilizer measures 36 × 36 × 41 inches and weighs 95 lbs. Two voltage options cover 115V (SK301C) and 220V (SK311C) lab circuits. Manufacturing follows ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 systems, and every order ships from USA inventory.
Key Features
- 2000W pipe heater: powerful element produces rapid, uniform steam across the 30 L chamber.
- 4-digit LED display: easy-to-read interface for programmable sterilizing and temperature functions.
- Timer range 0 to 999 min: flexible cycle scheduling for short or extended loads.
- Temperature range 50 to 126°C: covers standard steam sterilization protocols.
- Layered safety system: water level detection sensor with alarm, overheat protection, lid closure interlock, and pressure lamp indicator.
- Durable construction: SUS304 stainless chamber and cover with temperature-resistant engineering plastic exterior.
How to Choose the Right Sterilizer / Autoclave
Selecting a steam sterilizer comes down to matching chamber size, temperature capability, and site power to your daily workload. Weigh these axes .
- Capacity: a 30 L chamber suits routine research loads; size the volume to your largest typical batch of glassware, media, or instruments.
- Temperature range: confirm the unit reaches your protocol set point. This sterilizer covers 50 to 126°C.
- Control type: programmable LED control with a 0 to 999 minute timer supports repeatable, documented cycles.
- Voltage: match the model to your circuit. SK301C runs on 115V, SK311C on 220V.
- Footprint: verify bench or floor space against the 36 × 36 × 41 inch dimensions and 95 lb weight.
- Safety features: interlocks, overheat protection, and water-level alarms protect operators and loads during unattended runs.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 30 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 50 to 126°C *1 |
| Max. Operating Pressure | 0.142 MPa (at 126°C) |
| Temperature Control System | PID control by microprocessor |
| Interior Material | Stainless steel (SUS304) |
| Heater | 2000 W stainless steel pipe heater |
| Safety Devices | Water-level detection (liquid-expansion); safety valve (0.165 MPa); safety interlock; spring full-lift safety valve |
| Included Accessories | Stainless steel rack |
| Internal Capacity | 30 L |
| Internal Dimensions | ø280 × H487 mm |
| Material | Temperature resistant high quality engineering plastics (exterior) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932344 |
| Shipping Weight | 95 lbs |
| Dimensions (L × W × H) | 36 × 36 × 41 in |
| Component Size | 30 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SK-301C | 115V | EA |
| SK-311C | 220V | EA |
Documentation
More in This Series
- Compact Sterilizer 18L
- Compact Sterilizer 24L
- Sterilizer Without Dryer 32L
- Sterilizer Without Dryer 47L
- Sterilizer Without Dryer 47L 200
- Large Capacity Sterilizer Without Dryer 50L
- Large Capacity Sterilizer Without Dryer 80L
- Large Capacity Sterilizer Without Dryer 110L
- Sterilizer With Dryer 20L
- Sterilizer With Dryer 32L
- Sterilizer With Dryer 47L
- Large Capacity Sterilizer With Dryer 50L
- Large Capacity Sterilizer With Dryer 80L
- Natural Convection Dry Sterilizer 99L
- Natural Convection Dry Sterilizer 162L
- Forced Convection Dry Sterilizer 300L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every Compact Sterilizer 30L arrives as a genuine unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists are ready to answer spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship without backorder delays.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Lab-equipment specialists: direct support for sizing, voltage, and protocol questions.
Frequently Asked Questions
What is the temperature setting range of the SK301C sterilizer?
The temperature setting range is 50 to 126°C. This covers standard steam sterilization protocols for glassware, media, and instruments.
What chamber capacity and overall dimensions does this autoclave have?
The chamber holds 30 L. Overall dimensions are 36 × 36 × 41 inches, and the unit weighs 95 lbs.
What is the difference between the SK301C and SK311C?
Voltage is the only difference. SK301C operates on 115V, while SK311C operates on 220V; both share the 30 L chamber, 2000W heater, and 50 to 126°C range.
How powerful is the heater and how is the cycle controlled?
A 2000W pipe heater drives steam generation. Operators set programmable sterilizing and temperature functions through a 4-digit LED display with a 0 to 999 minute timer.
What materials are used in the chamber and exterior?
The chamber and cover are SUS304 stainless steel for corrosion resistance. The exterior uses temperature-resistant high-quality engineering plastics.
What safety features are built into this sterilizer?
Safety features include a water level detection sensor with alarm, overheat protection, a lid closure sensor interlock, and a pressure lamp indicator for unattended operation.
