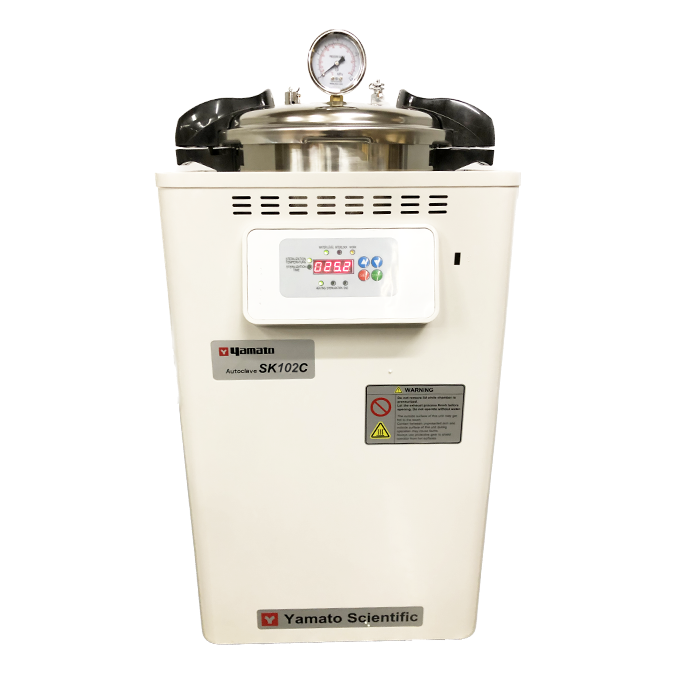

Compact Sterilizer 18L Overview
The Compact Sterilizer 18L (models SK102C and SK112C) from Yamato Scientific is a space-saving steam autoclave built for research and clinical labs. Offered by LabSupplies.com as an authorized dealer, this 18 L unit sterilizes across a 50 to 126°C temperature range. Programmable cycles and a four-digit LED display keep precise control within easy reach.
A SUS304 stainless steel chamber and cover resist corrosion through repeated steam exposure. Exterior panels combine bonderizing steel plate finished with baked melamine resin and ABS resin for durability. Driving each cycle, a 2000W pipe heater delivers rapid, even heat-up. Timer settings span 0 to 999 minutes for flexible program lengths.
Select 115V (SK102C) or 220V (SK112C) to match your facility circuits. Footprint stays compact while shipping weight reaches 85 lbs. Manufactured under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 systems, the unit ships from USA inventory. Multiple safety interlocks and sensors guard every run.
Key Features
- 2000W pipe heater: drives rapid, even heat-up for shorter cycle times.
- Programmable control: adjustable sterilizing and temperature functions across a 50 to 126°C range.
- Four-digit LED display: clear, easy-to-read readout of cycle status.
- Timer range 0 to 999 minutes: flexible program lengths for varied sterilization loads.
- Layered safety system: water level detection sensor with alarm, overheat protection, lid-closure interlock sensor, and pressure lamp indicator.
- SUS304 chamber and cover: stainless construction stands up to repeated steam cycles.
How to Choose the Right Sterilizer / Autoclave
Matching a steam sterilizer to your workflow comes down to load volume, cycle parameters, and how it fits your bench and power supply. Weigh these axes .
- Capacity: chamber volume sets how many flasks, media bottles, or instrument trays you can process per cycle. This 18 L unit suits compact research throughput.
- Temperature range: confirm the unit reaches the setpoints your protocols require. The 50 to 126°C span covers standard steam sterilization needs.
- Control type: programmable functions with a digital display support repeatable, documented cycles versus manual-only operation.
- Voltage: choose 115V or 220V to match the circuit available at the install site.
- Footprint: verify bench or floor space against the unit dimensions before delivery.
- Safety features: interlocks, overheat protection, and water-level monitoring protect operators and samples during pressurized cycles.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 18 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 50 to 126°C *1 |
| Max. Operating Pressure | 0.142 MPa (at 126°C) |
| Temperature Control System | PID control by microprocessor |
| Interior Material | Stainless steel (SUS304) |
| Heater | 2000 W stainless steel pipe heater |
| Safety Devices | Water-level detection (liquid-expansion); safety valve (0.165 MPa); safety interlock; spring full-lift safety valve |
| Included Accessories | Stainless steel rack |
| Internal Capacity | 18 L |
| Internal Dimensions | ø280 × H292 mm |
| Material | Bonderizing steel plate baked with melamine resin coating, ABS resin (exterior) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932306 |
| Shipping Weight | 85 lbs |
| Dimensions (L × W × H) | 36 × 36 × 35 in |
| Component Size | 18 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SK-102C | 115V | EA |
| SK-112C | 220V | EA |
Documentation
More in This Series
- Natural Convection Dry Sterilizer 99L
- Compact Sterilizer 24L
- Natural Convection Dry Sterilizer 162L
- Compact Sterilizer 30L
- Sterilizer With Dryer 20L
- Sterilizer With Dryer 32L
View all Laboratory Autoclaves & Sterilizers →
Why Buy From LabSupplies.com
Order the Compact Sterilizer 18L directly from LabSupplies.com and skip the back-and-forth of a sourcing request. Every unit ships as a genuine, warranty-backed product from US inventory.
- Authorized Yamato Scientific dealer supplying genuine units with full manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Dedicated lab-equipment specialists available for spec and compatibility questions.
- Straightforward direct purchasing built for procurement teams.
Frequently Asked Questions
What temperature range does the Compact Sterilizer 18L reach?
It operates across a 50 to 126°C temperature range. Programmable sterilizing and temperature functions let you set and repeat cycle parameters for standard steam sterilization protocols.
What is the chamber capacity and footprint?
The chamber holds 18 L, sized for compact research throughput. Shipping weight is approximately 85 lbs, so confirm bench or floor space and circuit access before installation.
What is the difference between the SK102C and SK112C?
Voltage is the only difference. SK102C runs on 115V and SK112C runs on 220V; both share the same 18 L capacity, 50 to 126°C range, 2000W heater, and feature set.
How powerful is the heating element?
A 2000W pipe heater powers each cycle, delivering rapid, even heat-up. The four-digit LED display shows cycle status, and the timer adjusts from 0 to 999 minutes.
What materials are used in the chamber and exterior?
The chamber and cover are SUS304 stainless steel for corrosion resistance. The exterior uses bonderizing steel plate finished with baked melamine resin plus ABS resin panels.
What safety features are included?
The unit includes a water level detection sensor with alarm, overheat protection, a lid-closure interlock sensor, and a pressure lamp indicator to protect operators during pressurized cycles.
