Compact Sterilizer 24L Overview

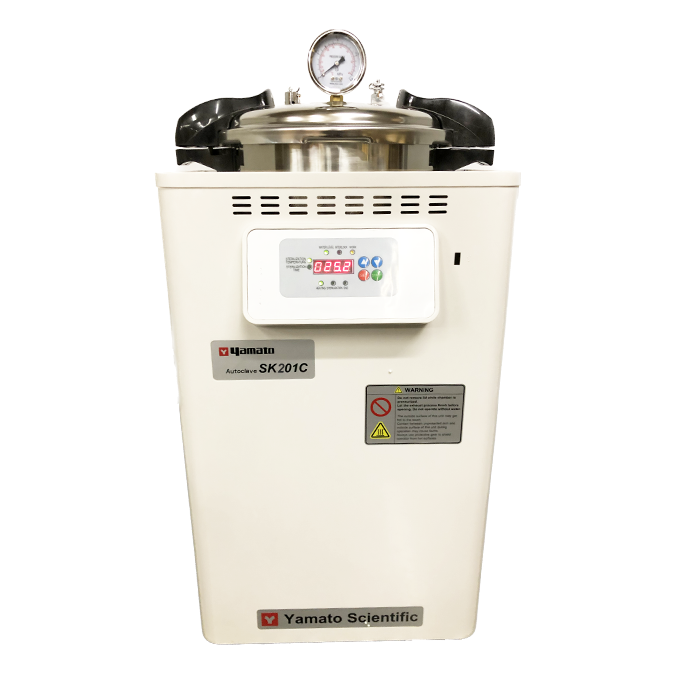

The Yamato Scientific Compact Sterilizer 24L (model SK201C) is a benchtop steam sterilizer (autoclave) built for research facilities that need reliable decontamination in a small footprint. Its 24 L chamber and 50 to 126°C temperature setting range handle media, glassware, and instrument loads. LabSupplies.com supplies this unit as an authorized Yamato Scientific dealer.
A 2000W pipe heater drives fast, even steam generation across the cycle. The chamber and cover use SUS304 stainless steel for corrosion resistance, while the exterior pairs a melamine-resin-coated Bonderizing steel plate with ABS resin housing. Programmable sterilizing and temperature functions are managed through a 4-digit LED display.
Ordering specifies voltage: SK201C runs on 115V and SK211C runs on 220V, letting you match site power without a separate adapter. The unit measures 36 × 36 × 41 in and weighs 95 lbs. Manufacturing is backed by ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management-system certifications.
Key Features
- 24 L capacity: compact chamber suited to research-scale media, glassware, and instrument loads.
- 2000W pipe heater: delivers fast, even steam generation throughout each cycle.
- 4-digit LED display: easy-to-read readout with programmable sterilizing and temperature functions.
- Timer range 0 to 999 min: wide programmable interval for varied load requirements.
- Layered safety system: water level detection sensor with alarm, overheat protection, lid closure (interlock) sensor, and pressure lamp indicator.
- SUS304 chamber and cover: stainless steel construction for corrosion resistance under repeated steam exposure.
How to Choose the Right Sterilizer / Autoclave
Selecting a steam sterilizer comes down to matching chamber size, temperature performance, and site requirements to your daily workflow. Use the criteria below to confirm the unit fits both your loads and your lab infrastructure.
- Capacity: chamber volume determines how many flasks, plates, or instruments you process per cycle. A 24 L chamber targets research-scale throughput.
- Temperature range: confirm the setting span covers your protocol; this unit programs from 50 to 126°C.
- Control type: programmable digital controls with an LED display simplify repeatable cycle setup versus manual dials.
- Voltage: match the model to available site power — 115V (SK201C) or 220V (SK211C).
- Footprint and weight: verify bench space and load rating against the 36 × 36 × 41 in, 95 lb form factor.
- Safety features: interlocks, overheat protection, and water-level sensing protect operators and samples during unattended cycles.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 24 L |
| Voltage | 115V |
| System | Automatic high-pressure steam sterilizer |
| Operating Temperature Range | 50 to 126°C *1 |
| Max. Operating Pressure | 0.142 MPa (at 126°C) |
| Temperature Control System | PID control by microprocessor |
| Interior Material | Stainless steel (SUS304) |
| Heater | 2000 W stainless steel pipe heater |
| Safety Devices | Water-level detection (liquid-expansion); safety valve (0.165 MPa); safety interlock; spring full-lift safety valve |
| Included Accessories | Stainless steel rack |
| Internal Capacity | 24 L |
| Internal Dimensions | ø280 × H390 mm |
| Material | Bonderizing steel plate baked with melamine resin coating, ABS resin (exterior) Stainless steel SUS304 (chamber/cover) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932320 |
| Shipping Weight | 95 lbs |
| Dimensions (L × W × H) | 36 × 36 × 41 in |
| Component Size | 24 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SK-201C | 115V | EA |
| SK-211C | 220V | EA |
Documentation
More in This Series
- Compact Sterilizer 18L
- Compact Sterilizer 30L
- Sterilizer Without Dryer 32L
- Sterilizer Without Dryer 47L
- Sterilizer Without Dryer 47L 200
- Large Capacity Sterilizer Without Dryer 50L
- Large Capacity Sterilizer Without Dryer 80L
- Large Capacity Sterilizer Without Dryer 110L
- Sterilizer With Dryer 20L
- Sterilizer With Dryer 32L
- Sterilizer With Dryer 47L
- Large Capacity Sterilizer With Dryer 50L
- Large Capacity Sterilizer With Dryer 80L
- Natural Convection Dry Sterilizer 99L
- Natural Convection Dry Sterilizer 162L
- Forced Convection Dry Sterilizer 300L
Why Buy From LabSupplies.com
LabSupplies.com sells the Yamato Compact Sterilizer 24L as an authorized Yamato Scientific dealer, so you receive a genuine unit with full manufacturer warranty support. Order directly and ship from USA inventory.
- Authorized Yamato Scientific dealer: genuine equipment backed by the manufacturer warranty.
- In stock: ready to order, no waitlist.
- Ships from USA inventory: dispatched from domestic stock.
- Lab-equipment specialists: dedicated team for spec and configuration questions before you order.
Frequently Asked Questions
What is the temperature setting range of the Yamato SK201C sterilizer?
The SK201C programs from 50 to 126°C. This range covers standard steam sterilization protocols for media, glassware, and instruments. Temperature functions are set through the 4-digit LED display.
What is the chamber capacity and overall footprint?
The chamber holds 24 L. The complete unit measures 36 × 36 × 41 in and weighs 95 lbs, making it suited to bench or dedicated-stand placement in research labs. Verify bench load rating before installation.
What is the difference between the SK201C and SK211C?
Voltage is the only difference. SK201C operates on 115V and SK211C operates on 220V; both share the same 24 L chamber, 2000W heater, and 50 to 126°C range. Choose the model that matches your site power.
How powerful is the heater and how long can cycles run?
A 2000W pipe heater drives steam generation. The programmable timer covers 0 to 999 minutes, giving wide flexibility for different load and protocol requirements.
What materials are used in the chamber and exterior?
The chamber and cover are SUS304 stainless steel for corrosion resistance. The exterior combines a melamine-resin-coated Bonderizing steel plate with ABS resin housing.
What safety features does the unit include?
The SK201C includes a water level detection sensor with alarm, overheat protection, a lid closure (interlock) sensor, and a pressure lamp indicator. These features support safer unattended operation.
