Ashing and Loss on Ignition: Running a Muffle Furnace to a Repeatable Result
Loss on ignition is a mass difference, which means every error in the result is a weighing error wearing a different hat. At LabSupplies.com, when a lab tells us their ashing results will not reproduce, the furnace is almost never the problem — the crucibles were not pre-fired, or the samples were weighed before they had properly cooled. The furnace is the easy part of this method. The handling either side of it is where the number is won or lost.
Prepare the Crucible Before the Sample
An unfired crucible loses its own mass on the first run, and that loss lands in your result as though it were sample. The fix is to make the crucible boring before you use it:
- Ignite the empty crucible at the temperature the analysis will run at.
- Cool it to room temperature in a desiccator.
- Weigh it.
- Repeat until the tare stops moving.
From that point the crucible is a container. Handle it with tongs only — a fingerprint is a measurable mass and it burns off during the run, which is a loss you did not intend to measure.
Ramp, Char, Then Ash
Charging a wet or organic-rich sample straight into a hot chamber spatters it, and sample that leaves the crucible is sample you will never weigh again. Stage it instead:
| Stage | What it does | What goes wrong if you skip it |
|---|---|---|
| Pre-dry | Removes free moisture at oven temperature | Steam ejects sample from the crucible |
| Char | Burns off volatiles gently below ashing temperature | The sample ignites and flares, scattering ash |
| Ash | Holds at the method temperature to a stable mass | Unburned carbon reads as residue |
| Controlled cool | Brings the chamber down before the door opens | Thermal shock to crucibles, ash disturbed by draught |

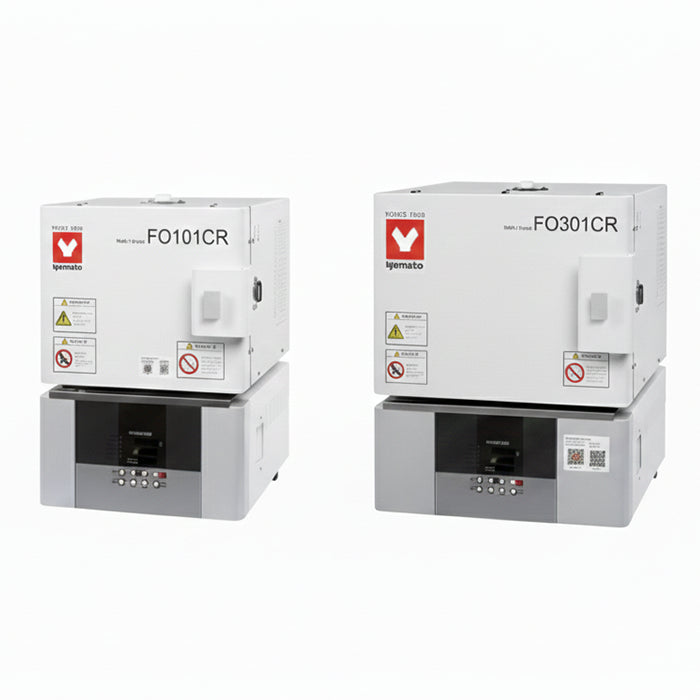

This is what programmable ramp and soak control is for. Both Yamato muffle furnace series run programmed cycles — the FO101CR and its larger siblings carry an RS-485 communication port for logging the run, and the FP103 extends to multi-step programs where the profile itself is the method. A written program also means the run is the same when someone else loads it.
Temperature, and Reading the Residue
Ashing generally lives in the 500 to 900 °C band, with both Yamato series operating to 1150 °C. Your method should fix the number; where it does not, the residue will tell you what happened:
- Black specks or a grey cast. Incomplete ashing. Carbon is still there and your result is high.
- Fused, glassy or sintered residue. Too hot. You may also have volatilised alkali metals and chlorides, which reads low.
- Uniform pale ash. What you are aiming for.
One more thing that gets overlooked: ashing needs oxygen. A furnace packed wall to wall with crucibles starves the load in the middle, and that crucible will still be black when the others are finished. Leave space, and treat a full chamber as a longer cycle rather than the same cycle.
Cooling Is Part of the Measurement
Never weigh hot. A hot crucible sets up convection over the balance pan and displaces less air than a cold one, so it reads low and it reads unstably. Left in room air it also takes moisture back up as it cools — on a hygroscopic ash, fast enough to matter.
Cool to room temperature in a desiccator, and give every replicate the same cooling time so the small residual effects at least cancel. A desiccator cabinet is the practical answer where crucibles come out in batches: the Yamato 860 series is ¼-inch acrylic in one- and two-cubicle configurations, clear for general use and amber where anything stored alongside is light-sensitive. The clear 12 × 12 × 12 in cabinet is the common bench size.
A desiccator with exhausted desiccant is a box. Use an indicating desiccant so the state is visible without opening the door, regenerate or replace it on the indicator rather than on habit, and do not park the cabinet where it becomes general storage — every extra item in there is more surface holding moisture. Model selection is covered in our desiccator cabinet buying guide, and the full range is in acrylic desiccator cabinets.
The Endpoint Is Constant Weight, Not a Clock
Ignite, cool, weigh, repeat until two successive weighings agree within your method's tolerance. That is the definition. “Two hours at 550 °C” is how you establish a working cycle for a given sample type — it is not evidence that the mass stopped changing on this particular run. Once the cycle is established for a matrix, the repeat weighing becomes a spot check rather than every-sample work, but it is the thing that made the shortcut legitimate in the first place.
Run duplicates, and run a blank crucible through the whole cycle alongside them. The blank catches a furnace or desiccator problem that would otherwise show up as a real but wrong result. Where the work supports a specification, traceable reference materials give you the external check — NIST Standard Reference Materials are the usual reference point.
Which Furnace the Work Actually Needs
For ashing and loss on ignition, a couple of degrees does not change the answer, so the ±2 °C FO series is ample and its communication port is the more useful feature day to day. The ±1.0 °C FP series earns its price where uniformity is itself the specification — heat treatment, sintering and materials work. Chamber size follows crucible count: the FO range runs 1.5 L to 30 L, so a lab batching twenty crucibles is a different purchase from one running three. The muffle furnace buying guide maps the models; the muffle furnace collection has the range.
Furnace work is hot work. Tongs, a heat-resistant bench surface for landing a crucible, and eye protection are not optional, and the general duties sit in the OSHA laboratory standard.
Frequently Asked Questions
What does ignition to constant weight actually mean?
It means you ignite, cool in a desiccator, weigh, and repeat until two successive weighings agree within your method's tolerance. Constant weight is an endpoint you demonstrate, not a time you set. A fixed “two hours at 550 °C” is a starting point for establishing the cycle, not a substitute for showing the mass has stopped changing.
Why must crucibles be pre-ignited before use?
Because an unfired crucible loses its own mass during the run, and that loss lands in your result as if it were sample. Ignite the empty crucible at the analysis temperature, cool it in a desiccator, and weigh it. Repeat until its tare is stable. Only then is the crucible a container rather than part of the sample.
What temperature should I ash at?
Whatever your method specifies — ashing generally runs in the 500 to 900 °C band. Too low leaves unburned carbon and a high result; too high volatilises alkali metals and chlorides and gives a low one. If the method does not fix it, the residue tells you: black specks mean incomplete ashing, and a fused or glassy residue usually means you went too hot.
Can I weigh a crucible straight out of the furnace?
No. A hot crucible sets up convection over the balance pan and displaces less air than a cold one, so it reads low and unstable. It also picks up moisture as it cools in room air. Cool to room temperature in a desiccator with live desiccant, then weigh, and give every replicate the same cooling time.
Do I need the higher-precision furnace series for ashing?
Usually not. Ashing and loss on ignition are tolerant of a couple of degrees, so the ±2 °C Yamato FO series is ample, and its communication port is more useful day to day if you log furnace data. The tighter ±1.0 °C FP series earns its price on heat treatment and materials work where uniformity itself is the specification.
