Vacuum Drying Ovens: When Low-Pressure Drying Beats Convection
A vacuum drying oven earns its place in the lab when heat is the problem, not the solution. At LabSupplies.com, the question we field most often about ovens is not natural versus forced convection — it is why a drying job that a convection oven handles in an hour is worth moving into a vacuum chamber at all. The short answer: dropping chamber pressure lowers the boiling point of whatever liquid is trapped in your sample, so the same moisture or solvent leaves at a materially lower temperature, without the oxidation that comes with hot air.
That trade-off is the entire decision. You give up speed and you add a vacuum pump to the budget. You get back the ability to dry material that a convection oven would cook.
When Low Pressure Beats Hot Air
Four situations justify the extra cost and the extra equipment:
- Heat-sensitive material. Polymers, biologicals, pharmaceutical intermediates, and anything with a decomposition point uncomfortably close to its drying temperature.
- Solvent removal. Pulling residual solvent out of a sample without holding it at the solvent's atmospheric boiling point for hours.
- Oxidation-prone samples. Evacuating the chamber removes most of the oxygen along with the air, so the surface does not discolour or oxidise while it dries.
- Hygroscopic powders and porous solids. Material that traps moisture deep in its structure gives it up far more readily under reduced pressure than it does to surface airflow.
If none of those apply — you are drying glassware, or curing something robust at 105 °C — a gravity or forced-convection oven is faster, cheaper, and needs no pump. Our laboratory oven buying guide covers that side of the decision, including how the convection families compare on uniformity and temperature class.
What You Are Actually Buying
A vacuum oven is a sealed, heated, gauge-equipped chamber. It does not make vacuum. Every unit needs a separate vacuum pump sized to the chamber volume and to how quickly you need to pull down, and if you are removing solvents rather than water, a cold trap between chamber and pump protects the pump oil. Labs that skip these at quote time end up revisiting the purchase.

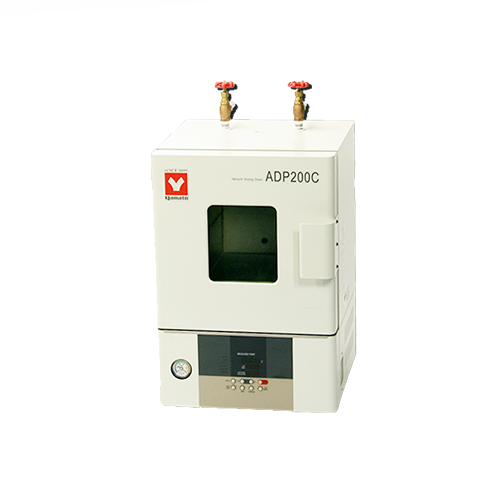

On the Yamato ADP200C, the specification that matters most is the operating pressure range — 101 to 0.1 kPa (760 to 1 Torr) — alongside a 40 to 240 °C temperature window and ±1.5 °C accuracy at 240 °C. The chamber is stainless steel, the door carries a silicon rubber seal to hold vacuum integrity across a cycle, and a tempered-glass observation window lets you watch a run without breaking it. Control is programmable PID with fixed-temperature, auto-start, auto-stop and full program modes, which is what makes overnight unattended cycles repeatable rather than hopeful.
Sizing the Chamber
Vacuum ovens scale differently from convection ovens: a sealed pressure vessel gets expensive faster than an insulated box, so oversizing costs more here than it does elsewhere in the oven range. Size to your actual batch and shelf geometry, not to headroom you might use.
| Model | Chamber | Format | Typical Use |
|---|---|---|---|
| ADP200C | 10 L | Benchtop | Small-batch drying and degassing |
| ADP300C | 27 L | Benchtop | Routine multi-sample runs |
| SDP300 | 47.2 L | Benchtop | Larger benchtop throughput |
| DP43C | 91 L | Floor-standing | Production and pilot-scale drying |
| SDP400 | 127.4 L | Floor-standing | High-volume batches |
| DP63C | 216 L | Floor-standing | Largest standard capacity |
Two Details That Catch People Out
Bench footprint is bigger than the chamber suggests. The 10 L ADP200C occupies 36 × 36 × 38 in and weighs 145 lb — a 10 L chamber does not mean a 10 L appliance. Measure the bench and check the loading before ordering, and remember the pump needs somewhere to live too.
Voltage is a model choice, not a switch. Yamato splits the range by supply: the ADP200C is 115 V and the ADP210C is 220 V, identical in every other respect. The same pattern runs through the series. Confirm the circuit at the install location before you pick the SKU.
Choosing Between Vacuum and Convection
| If your constraint is… | Choose | Why |
|---|---|---|
| Sample degrades near its drying temperature | Vacuum | Lower pressure means a lower boiling point |
| Residual solvent to remove | Vacuum | Solvent leaves without a hot hold |
| Oxidation during drying | Vacuum | Evacuating removes most chamber oxygen |
| Throughput and speed | Forced convection | Moving air carries heat far faster |
| Delicate powders that airflow would disturb | Natural convection | Gentle, low-airflow drying |
| Oxygen-free atmosphere, not low pressure | Inert gas oven | Nitrogen purge holds atmospheric pressure |
Browse the full laboratory ovens collection to compare vacuum, convection, fine, clean and inert families side by side.
Frequently Asked Questions
When should I use a vacuum oven instead of a convection oven?
Use a vacuum oven when the sample degrades at the temperature a convection oven would need, when it holds a solvent you want removed without driving the chamber hot, or when oxidation during drying is a problem. Lowering chamber pressure drops the boiling point of the trapped liquid, so the same moisture leaves at a lower temperature.
What vacuum level do laboratory vacuum ovens reach?
The Yamato ADP series operates across 101 to 0.1 kPa (760 to 1 Torr). The oven itself does not generate vacuum — it holds it. You supply a vacuum pump sized to the chamber and to how fast you need to pull down.
Do I need a separate vacuum pump?
Yes. A vacuum oven is a sealed, heated chamber with a gauge and a port; the pump is a separate purchase. Budget for it up front, and for a cold trap if you are pulling off solvents that would otherwise reach the pump oil.
Can a vacuum oven run under nitrogen instead of vacuum?
The Yamato ADP units can be configured with an N₂ gas inlet, which allows backfilling the chamber with nitrogen for oxygen-sensitive material. If inert atmosphere rather than low pressure is the actual requirement, a dedicated inert-gas oven such as the DN-IE series is the better fit.
How long does a vacuum oven take to reach temperature?
Roughly 70 minutes to maximum temperature on the 10 L ADP200C. Vacuum drying is generally slower than forced-convection drying because low pressure removes the moving air that normally carries heat to the sample — the trade you accept for a lower process temperature.
