Lab Balance Selection Guide: Analytical, Precision & Micro
Share
At LabSupplies.com, choosing the right lab balance starts with one number: readability. A lab balance is only useful when its resolution, capacity, and stability match the smallest amount you need to weigh accurately. An analytical balance reading to 0.0001 g is wasted on a 5 kg formulation task, and a top-loading precision balance reading to 0.1 g cannot support USP-compliant milligram weighing. This guide walks through every balance class we carry, the specifications that actually matter, USP Chapter <41> minimum-weight requirements, and calibration and setup best practices — so you buy the right instrument once.
Lab Balance Types at a Glance
Balances are grouped by readability (the smallest increment the display resolves, denoted d) and capacity. Match the class to your smallest accurate weighing first, then confirm the capacity covers your largest sample.
| Balance type | Readability (d) | Typical capacity | Best for |
|---|---|---|---|
| Analytical | 0.1 mg (0.0001 g) | 60–320 g | Quantitative analysis, standard prep, USP weighing |
| Semi-micro | 0.01 mg | 60–220 g | Trace standards, low-mass samples |
| Micro / ultra-micro | 1 µg / 0.1 µg | 2–52 g | Filter, particulate, and pharmacological research |
| Precision (top-loading) | 0.1–0.001 g | 200 g–12 kg | Formulation, media prep, general weighing |
| Moisture balance | 0.001 g + %MC | 50–200 g | Moisture content by loss-on-drying |
| Portable / bench | 0.01–1 g | 200 g–6 kg | Field, QC, receiving, and teaching |

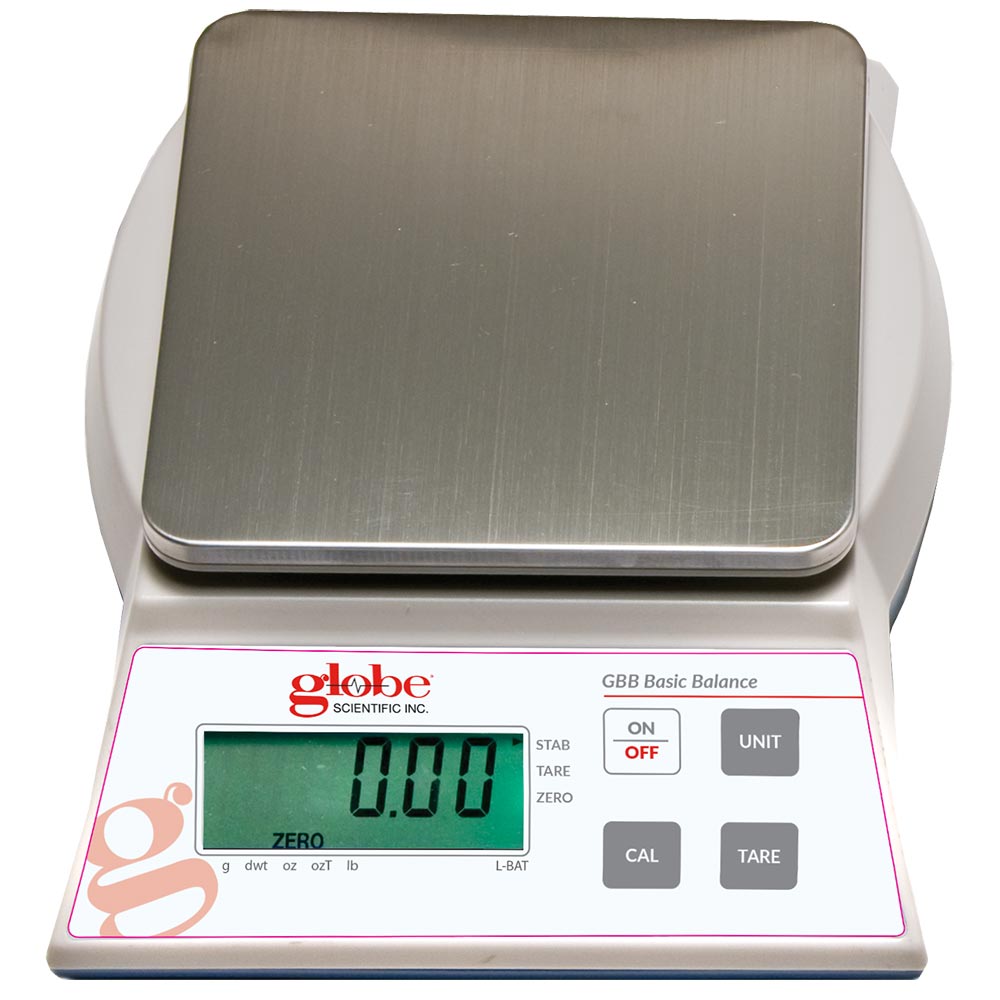

Our weighing and measurement collection includes portable top-loading balances such as the Globe Scientific GBB and GBBH series — from 500 g × 0.01 g up to 6000 g × 0.1 g — with external calibration and an ISO 17025-certified option (GBB-6000-CT) for labs that need a traceable certificate on arrival.
Readability, Repeatability, and Linearity
Readability gets the attention, but three specifications together define whether a balance is fit for your work:
- Readability (d) — the smallest displayed increment. A good rule is to choose readability at least 10× finer than the tightest tolerance you must hold.
- Repeatability — the standard deviation of repeated weighings of the same load. This, not readability, drives the smallest mass you can weigh accurately, and it is the basis of the USP minimum-weight calculation below.
- Linearity — the maximum deviation from a true value across the full range. It matters when you weigh across a wide span rather than near a single point.
Also check capacity headroom (leave margin for containers and tare), stabilization time, tare range, and interface options (RS-232 or USB) if results feed a LIMS or printed record.
USP Chapter <41>: Minimum Weight and Accuracy
Pharmaceutical, compounding, and many QC labs must weigh in compliance with USP General Chapter <41>, Balances. Two requirements govern balance selection:
- Repeatability is acceptable when two times the standard deviation of repeated weighings, divided by the net sample weight, does not exceed 0.10%. When the measured standard deviation is smaller than 0.41d, USP replaces it with 0.41d, which yields a minimum sample weight of 820 × d. In practice, you must never weigh a sample smaller than the balance's minimum weight.
- Accuracy is satisfactory when a displayed value for a test weight between 5% and 100% of the balance's capacity is within 0.10% of the target.
USP General Chapter <1251>, Weighing on an Analytical Balance, adds a safety factor and practical guidance on operating range. The takeaway for buyers: if your smallest routine sample is near the milligram level, size the balance so that mass sits comfortably above its minimum weight — an analytical or semi-micro balance, not a precision top-loader.
Calibration: Internal vs External, and Traceability
Every balance drifts with temperature, time, and location (gravity varies with latitude and altitude), so calibration is not optional.
- Internal calibration uses a built-in motorized weight to self-adjust. It is the standard for analytical balances and regulated environments where conditions fluctuate.
- External calibration uses separate certified weights and is common on portable and precision balances. Budget for the correct weight class.
Reference weights are graded by ASTM E617 and OIML R111 classes — select a class whose tolerance is well below your balance's readability. Regulated labs should obtain calibration from an ISO/IEC 17025-accredited provider and keep the certificate on file; legal-for-trade weighing additionally follows NIST Handbook 44. Log a daily or per-use accuracy check against a traceable weight, and schedule formal calibration at least annually.
Environment and Bench Setup
Even a perfect balance returns bad numbers on a bad bench. Control the four common error sources:
- Vibration — place analytical and semi-micro balances on a dedicated stone or anti-vibration weighing table, away from centrifuges, HVAC, and foot traffic. See our lab stands and support systems guide for anti-vibration platforms.
- Air currents — use the draft shield on analytical models and keep the balance away from doors, fume hoods, and HVAC diffusers.
- Static — low humidity and plastic vessels build static that pulls on the pan; use an ionizer or antistatic containers for milligram work.
- Temperature and leveling — let the balance equilibrate to room temperature, warm up per the manual, and confirm the bubble level before every session.
Selecting the Right Balance for Your Application
| Application | Key requirement | Recommended balance |
|---|---|---|
| Quantitative analysis, reference standard prep | 0.1 mg readability, draft shield, USP <41> compliance | Analytical balance |
| Trace-level or very low-mass samples | 0.01 mg readability, minimum-weight headroom | Semi-micro balance |
| Filter, particulate, or micro-scale research | 1 µg readability, vibration isolation | Micro / ultra-micro balance |
| Media, buffer, and reagent formulation | 0.01–0.1 g readability, larger capacity | Precision top-loading balance |
| QC, receiving, field, or teaching | Portability, external cal, durability | Portable / bench balance |
| Moisture / solids content | Loss-on-drying with heating element | Moisture analyzer balance |
Browse our full weighing and measurement collection at LabSupplies.com — analytical, precision, portable, and moisture balances, stocked in the USA, ships fast.
See the essential lab equipment guide for how a balance fits the wider instrument set, the lab inventory management guide for calibration recordkeeping in regulated environments, the lab stands and support systems guide for anti-vibration weighing tables, and the new lab setup guide for planning your weighing station in a new build.
Frequently Asked Questions
What is the difference between an analytical balance and a precision balance?
An analytical balance reads to 0.1 mg (0.0001 g) and uses a draft shield to weigh small masses with high precision, typically up to 320 g. A precision (top-loading) balance reads to 0.1–0.001 g with capacities from 200 g to 12 kg and no draft shield. Use an analytical balance for quantitative analysis, standards preparation, and USP-compliant milligram weighing; use a precision balance for formulation, media prep, and general weighing.
What readability do I need in a lab balance?
Choose readability based on the smallest amount you must weigh accurately, not the largest. As a rule, readability should be at least 10× finer than your smallest required weighing tolerance. For sub-milligram work choose an analytical or semi-micro balance; for gram-level formulation, a precision balance to 0.01–0.1 g is sufficient.
What is minimum weight on a balance under USP Chapter <41>?
USP <41> requires that for materials that must be accurately weighed, two times the standard deviation of repeated weighings divided by the net sample weight must not exceed 0.10%. When the measured standard deviation is below 0.41d (d = scale interval), the minimum sample weight is 820 × d. Never weigh a sample smaller than the balance's minimum weight in a USP-regulated workflow.
How often should a lab balance be calibrated?
Run a daily or per-use accuracy check with a traceable calibration weight, and schedule formal calibration at least annually through an ISO/IEC 17025-accredited provider. Regulated pharmaceutical and clinical labs calibrate on a documented interval and verify performance each day of use with ASTM- or OIML-class reference weights.
Internal vs external calibration — which does my balance need?
Internal (motorized) calibration self-adjusts for temperature and time and suits analytical and regulated workflows. External calibration relies on separate certified weights and is common on portable and precision balances at lower cost. For labs with tight documentation or fluctuating conditions, internal calibration reduces error and effort.
New lab? Get 15% off everything for 12 months with our LaunchLab program → labsupplies.com/pages/launchlab
Shop Lab Balances at LabSupplies.com — analytical, precision, portable, and moisture balances, ships from the USA.
→ labsupplies.com/collections/weighing-measurement
Edited by Ray Dillman-Neu, Co-Founder, LabSupplies.com
Ray works with laboratory manufacturers, suppliers, and institutional buyers to research product specifications, purchasing requirements, and laboratory equipment selection.
Weighing requirements verified against USP General Chapters <41> and <1251>, NIST Handbook 44, and OIML R76. Calibration classes checked against ASTM E617 and OIML R111. Last reviewed: July 3, 2026.
