Crucible Selection for Carbon and Sulfur Analyzers
Share
At LabSupplies.com, the single most common question we get from combustion laboratories is which crucible to run. The short answer: ceramic crucibles for carbon and sulfur combustion, graphite crucibles for inert gas fusion of oxygen, nitrogen and hydrogen — and if you are working near your detection limit, a low-blank grade rather than the standard one. The longer answer is that crucible choice quietly sets the floor on what your instrument can measure, and it is the cheapest variable in the whole method to get right.
This guide covers how to match a crucible to your analyzer and your matrix, what separates a standard crucible from a low-blank one, why packaging matters more than it sounds like it should, and how accelerators interact with the crucible you pick.
Ceramic vs Graphite: Match the Crucible to the Technique
The two crucible families are not interchangeable, because they serve two different physical processes.

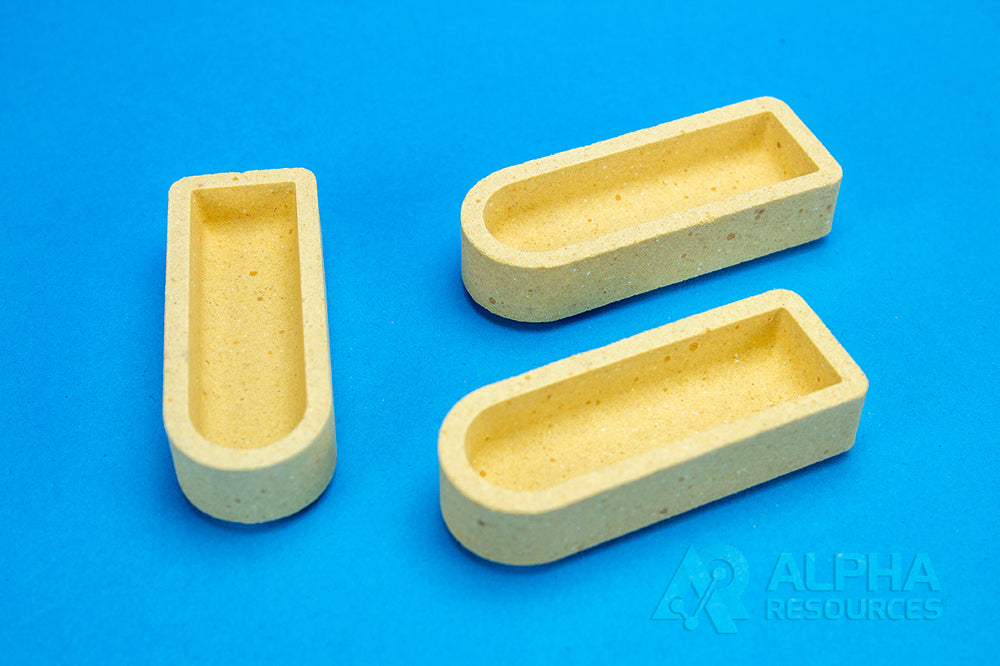

Ceramic crucibles are used for high-frequency induction combustion — the technique behind carbon and sulfur determination. The sample plus accelerator is burned in flowing oxygen inside the ceramic vessel; carbon converts to CO/CO2 and sulfur to SO2, which are then measured by infrared absorption. ISO 15350 describes exactly this routine method for steel and iron.
Graphite crucibles are used for inert gas fusion — the technique behind oxygen, nitrogen and hydrogen determination. Here the sample is melted in a graphite crucible under flowing helium or argon rather than burned in oxygen, and the released gases are measured by infrared and thermal conductivity detection. ASTM E1019 covers both families of technique for steel, iron, nickel and cobalt alloys.
| Crucible type | Technique | Atmosphere | Elements |
|---|---|---|---|
| Ceramic | Induction combustion | Flowing oxygen | Carbon, sulfur |
| Graphite | Inert gas fusion | Helium or argon | Oxygen, nitrogen, hydrogen |
| Quartz / silica | Organic combustion, ashing | Oxygen | C, H, N, S in organics |
Standard vs Low-Blank Grades
Every ceramic crucible contributes a small amount of sulfur and carbon of its own. That contribution is the blank, and it is subtracted during calibration — but it also sets a practical floor on the lowest concentration you can resolve with confidence, because blank variability, not blank magnitude, is what limits you.
For routine work at percent or high-ppm levels, a standard crucible is entirely appropriate and costs meaningfully less. For low-sulfur steels, high-purity metals or any method where you are reporting near single-digit ppm, a low-blank (often designated HP, for high purity) crucible is worth the premium. ISO 15350 is written for carbon from 0.005% to 4.3% and sulfur from 0.0005% to 0.33%; at the bottom of that sulfur range the crucible grade stops being a detail.
A practical rule: if your blank is more than about a tenth of your lowest reported result, move to a low-blank grade before you change anything else in the method.
Foil-Wrapped vs Bagged
Packaging is not cosmetic here. Ceramic crucibles are porous and will pick up contamination from handling, from shop air, and from whatever else is on the bench.
- Bulk bagged — the economical option. Appropriate for routine production work where crucibles are consumed quickly and blanks are checked per batch.
- Foil wrapped — each crucible individually protected, so the surface you load is the surface that left the kiln. Worth it for low-level work, for laboratories that open a container and use it over weeks, and anywhere a contamination excursion is expensive to chase.
Whichever you buy, handle crucibles with clean tongs rather than bare fingers. Skin transfers both carbon and sulfur, and it is a genuinely common cause of drifting blanks.
Accelerators and How They Interact
Most metal samples will not combust completely on their own. Accelerators — typically tungsten, copper, iron or tin, alone or combined — are added to the crucible to raise the combustion temperature and improve gas release.
Two things follow from that. First, the accelerator carries its own blank, so a change of accelerator lot requires a fresh blank determination just as a change of crucible lot does. Second, the crucible has to physically hold the sample plus the accelerator with headroom for the melt, so sample mass and accelerator volume together dictate crucible size — not sample mass alone.
Ash and Swarf Crucibles for Organic Analysis
Organic elemental analyzers and thermogravimetric applications use a different set: quartz and silica ash crucibles, graphite ash crucibles, and removable swarf crucibles that let you recover residue after a run. These are matched to the specific instrument geometry far more tightly than combustion crucibles are, so specify by instrument and by the OEM part number your method already names.
Selecting the Right Crucible for Your Application
| If you are running… | Choose | Packaging |
|---|---|---|
| Routine C/S on carbon steel | Standard ceramic | Bulk bagged |
| Low-sulfur steel or high-purity metal | Low-blank ceramic (HP) | Foil wrapped |
| O/N/H by inert gas fusion | Graphite | Bulk, used quickly |
| Organic C/H/N/S | Quartz or silica ash crucible | Per instrument spec |
| Residue recovery / TGA | Removable swarf crucible | Per instrument spec |
We stock aftermarket crucibles cross-referenced to the OEM part numbers your method already specifies — every listing shows the OEM number next to ours. Browse analyzer crucibles and covers, or start from your instrument: LECO-compatible, ELTRA-compatible, Horiba-compatible and Elementar-compatible consumables.
Related reading: choosing a lab balance for the weighing step ahead of combustion, chemical storage best practice for accelerator and reagent handling, just-in-time inventory for consumables, and lab PPE requirements for furnace work.
Frequently Asked Questions
What is the difference between a ceramic and a graphite crucible?
Ceramic crucibles are used for induction combustion in flowing oxygen, which is how carbon and sulfur are determined. Graphite crucibles are used for inert gas fusion under helium or argon, which is how oxygen, nitrogen and hydrogen are determined. They are not interchangeable because the two techniques rely on different atmospheres and different thermal behaviour.
What is a low-blank crucible and do I need one?
A low-blank or high-purity crucible contributes less carbon and sulfur of its own than a standard grade. You need one when you are reporting results near your detection limit — as a rule of thumb, when your blank exceeds roughly a tenth of your lowest reported result. For routine percent-level work a standard crucible is appropriate and costs less.
Why are some crucibles foil wrapped?
Ceramic is porous and picks up carbon and sulfur from handling and from ambient air. Foil wrapping protects each crucible individually so the surface you load is the surface that left the kiln. It matters most for low-level determinations and for laboratories that consume a container slowly over weeks.
Can I reuse a combustion crucible?
Ceramic combustion crucibles are single-use. The fused sample and accelerator residue cannot be removed reliably, and any carryover contaminates the next determination. Ash and swarf crucibles used in organic and thermogravimetric applications are a separate case and some are designed to be cleaned and reused — follow the instrument manual.
Do I need to change my blank when I change crucible lots?
Yes. Both the crucible and the accelerator carry their own blank, and both vary between lots. Determine a fresh blank whenever either changes, and treat an unexplained blank shift as a contamination signal rather than something to calibrate away.
What size crucible should I use?
Size to the sample mass plus the accelerator volume, with headroom for the melt — not to sample mass alone. An underfilled crucible wastes nothing but an overfilled one risks spatter, incomplete combustion and furnace contamination.
Running a new lab? LaunchLab gives new laboratories 15% off consumables for their first 12 months.
Edited by Ray Dillman-Neu, Co-Founder, LabSupplies.com. LabSupplies.com supplies aftermarket consumables, certified reference materials and replacement parts for elemental analysis laboratories across the United States.
Specifications in this guide were verified against the published standards cited below. Always confirm consumable compatibility against your instrument manual and your validated method before substituting any part.
Sources and Technical References
- ASTM E1019 — Standard Test Methods for Determination of Carbon, Sulfur, Nitrogen, and Oxygen in Steel, Iron, Nickel, and Cobalt Alloys by Various Combustion and Inert Gas Fusion Techniques, ASTM International.
- ISO 15350:2000 — Steel and iron: Determination of total carbon and sulfur content, infrared absorption method after combustion in an induction furnace (routine method), International Organization for Standardization.
- CHNS/O Elemental Analyzer operating manual, Chemical Instrumentation Facility, Iowa State University.
