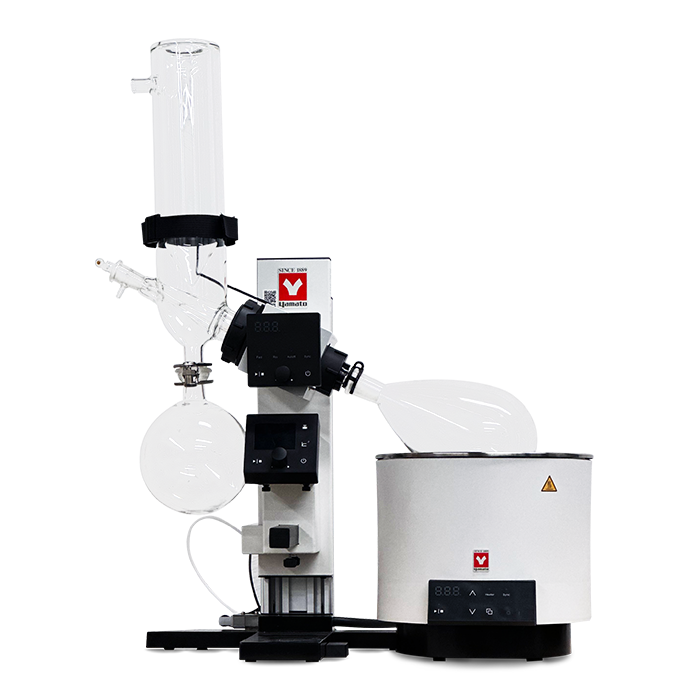

Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C Overview
The Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C is a complete distillation system built around the Yamato Scientific REV212M main unit, a rotary evaporator. This configuration pairs an integrated vacuum controller with a 5 L oil bath rated from RT +10°C to 180°C. LabSupplies.com supplies it as an authorized dealer.
Exterior panels use chromium-free electrogalvanized steel with a baked-on finish, while aluminum components carry anodized or baked-on coatings. A DC brushless servo motor drives rotation across a 5–315 rpm range. Glassware Set C uses a cold-finger vertical condenser suited to volatile, low-boiling-point solvents. Manual spring-loaded jack lifting reaches 200 mm with stepless one-touch lock.
Power runs on 200–230V single-phase, 50/60 Hz at 1 A through a round terminal without a plug. The assembled system weighs 90 lbs and ships in a 36 × 36 × 27 in footprint. Country of origin is Switzerland. Integrated VR102S vacuum control offers a 2.3-inch color LCD with a 0–1013 hPa setting range.
Key Features
- Integrated vacuum control: VR102S controller with 2.3-inch color LCD, 0–1013 hPa setting range, and manual, gradient, and auto modes including hold, auto-leak, and auto-clean.
- Rotation drive: DC brushless servo motor delivers 5–315 rpm with forward, reverse, and auto-inversion modes shown on a digital display.
- Set inversion function: glassware and bath mount on either the left or right side to match the operator's dominant hand and install location.
- BO312A oil bath: RT +10°C to 180°C range, ±2.0°C accuracy, and roughly 5 L capacity (Φ240 × H119 mm).
- Cooling condenser: double corrugated tube providing 0.143 m² cooling surface, plus an included condenser insulation kit that suppresses surface condensation.
- Layered safety: motor overload, over- and low-voltage, and speed-sensor-error protection alongside bath overheat prevention and an overcurrent fuse.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator means matching the system to your solvents, throughput, and site power . Use these axes to confirm the fit.
- Bath capacity and temperature range: a 5 L oil bath reaching 180°C handles higher-boiling solvents that water baths cannot, so confirm your solvents fall inside that window.
- Glassware type: Set C cold-finger vertical condensers target volatile, low-boiling-point solvents; verify your application matches the condenser style.
- Vacuum control: an integrated controller with gradient and auto modes automates pressure profiles, reducing bumping and manual adjustment during distillation.
- Voltage and site power: this system needs 200–230V single-phase at 50/60 Hz, so confirm your bench circuit supplies it.
- Footprint and weight: plan for a 36 × 36 × 27 in space and 90 lbs of assembled equipment.
- Seal compatibility: FKM seals ship standard, while PTFE is recommended for ketone or ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 220V |
| Type | Rotary evaporator complete system |
| Configuration | REV-212M main unit with vacuum controller + Glassware C + oil bath |
| Glassware Set | Set C — cold-finger vertical condenser, for volatile / low-boiling-point solvents |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Vacuum Controller | Integrated VR-102S — 2.3" color LCD, vacuum setting range 0–1013 hPa |
| Vacuum Control Valve | OVR10 solenoid valve |
| Vacuum Control Modes | Manual / Gradient / Auto, with hold, auto-leak and auto-clean |
| Vacuum Controller Safety | Communication, pressure-sensor, memory, leak and high-pressure error detection with auto-leak on fault |
| Bath Type | Oil bath |
| Bath Model | BO-312-A |
| Bath Temperature Range | RT +10°C to 180°C |
| Bath Temperature Accuracy | ±2.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 200–230V single-phase, 50/60 Hz, 1 A (round terminal, no plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932573 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| REV-212M-CO2A | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com ships this rotary evaporator system as an authorized Yamato Scientific dealer, so every order is a genuine factory unit backed by the manufacturer warranty. Place your order directly and let our lab-equipment specialists field any spec questions.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty coverage.
- In stock: ready to order without backorder delays.
- Ships from USA inventory: domestic fulfillment for faster delivery.
- Dedicated specialists: lab-equipment experts available for configuration and spec guidance.
Frequently Asked Questions
What is the operating temperature range of the BO312A oil bath?
The BO312A oil bath operates from RT +10°C to 180°C with ±2.0°C temperature accuracy. Its higher ceiling supports distillation of solvents beyond the limits of a water bath.
What flask sizes does the REV212M accommodate?
The REV212M accepts evaporation flasks from 50 to 2000 ml and receiving flasks from 100 to 2000 ml. An optional reducer adapts the unit for flasks smaller than 50 ml.
What power supply does this rotary evaporator require?
This system requires 200–230V single-phase power at 50/60 Hz, drawing 1 A. The connection uses a round terminal supplied without a plug, so confirm your bench wiring before installation.
What vacuum seal material ships with the unit?
FKM is the standard vacuum seal on this configuration. Yamato recommends switching to a PTFE seal when working with ketone or ether solvents.
Which solvents suit Glassware Set C?
Set C is designed for volatile, low-boiling-point solvents. Its cold-finger vertical condenser provides efficient recovery for these compounds.
How does the integrated vacuum controller work?
The integrated VR102S controller offers manual, gradient, and automatic modes through a 2.3-inch color LCD. It supports a 0–1013 hPa setting range plus hold, auto-leak, and auto-clean functions, with an OVR10 solenoid control valve.
