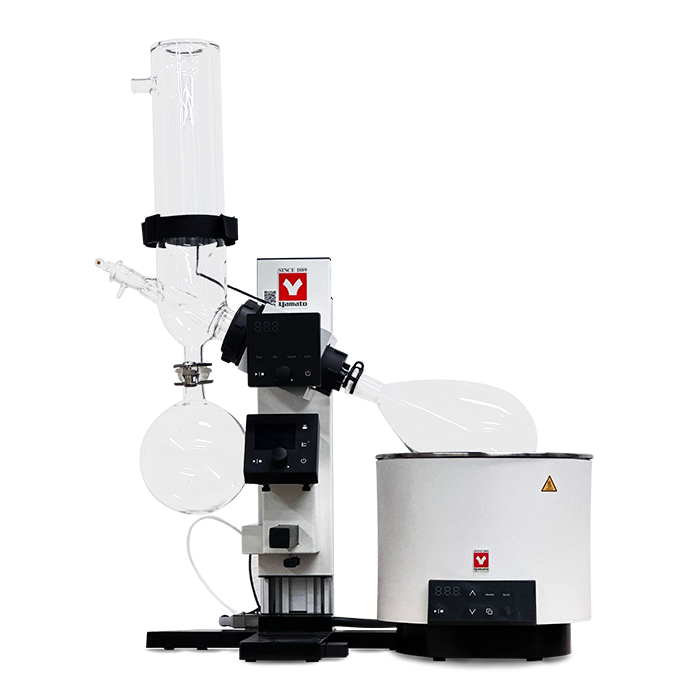

Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C Overview
The Rev-202M-A Rotary Evaporator with Vacuum Regulator is a complete REV202MA distillation system pairing a vacuum-controlled main unit with Glassware Set C and a 5 L BM302A water bath. Yamato Scientific built this rotary evaporator for solvent recovery across a 5–315 rpm rotation range, with bath heating from RT +10°C to 90°C. LabSupplies.com supplies it as an authorized dealer.
Exterior panels use chromium-free electrogalvanized steel with a baked-on finish, while structural parts combine anodized aluminum and glass-fiber-reinforced polybutylene terephthalate resin. Glassware Set C carries a cold-finger vertical condenser suited to volatile, low-boiling-point solvents. A double corrugated-tube condenser delivers 0.143 m² of cooling surface. FKM vacuum seals ship standard; PTFE seals are recommended for ketone and ether solvents.
Power runs on 100–115V, 50/60 Hz at 1 A. Shipping weight is 90 lbs, with packed dimensions of 36 × 36 × 27 inches. Country of origin is Switzerland, and the system carries GTIN 797059932542. A manual spring-loaded jack adjusts evaporation height up to 200 mm with one-touch locking.
Key Features
- Integrated VR102S vacuum controller: 2.3" color LCD with a 0–1013 hPa setting range, plus manual, gradient and auto modes featuring hold, auto-leak and auto-clean.
- Variable rotation: 5–315 rpm driven by a DC brushless servo motor, with forward, reverse and auto-inversion modes and a digital speed display.
- Set inversion function: glassware and bath mount on either side, left or right, to match dominant hand and installation location.
- Manual slide-jack lift: spring-loaded mechanism with stepless adjustment to 200 mm and one-touch lock for fast flask positioning.
- Condenser insulation kit standard: suppresses surface condensation on the cold-finger vertical condenser during operation.
- Layered safety protection: motor overload, over- and low-voltage and speed-sensor-error detection, with bath overheat prevention and an OVR10 solenoid control valve.
How to Choose the Right Rotary Evaporator
Matching a rotary evaporator to a workflow comes down to bath capacity, solvent volatility, control method and site power. Use the criteria below to confirm the REV202MA system fits your distillation needs.
- Bath capacity: the 5 L BM302A bath suits standard 50–2000 ml evaporation flasks; confirm your flask volume against this range.
- Temperature range: heating from RT +10°C to 90°C at ±1.0°C covers most aqueous and low-boiling solvent recoveries.
- Condenser and glassware type: Glassware Set C uses a cold-finger vertical condenser optimized for volatile, low-boiling-point solvents.
- Vacuum control: the integrated VR102S controller automates pressure across 0–1013 hPa, reducing bumping and manual adjustment.
- Voltage and power: verify your bench supplies 100–115V, 50/60 Hz at 1 A before ordering this 115V configuration.
- Footprint and weight: plan for a 36 × 36 × 27 inch shipping envelope and a 90 lb unit when allocating bench space.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 115V |
| Type | Rotary evaporator complete system |
| Configuration | REV-202M main unit with vacuum controller + Glassware C + water bath |
| Glassware Set | Set C — cold-finger vertical condenser, for volatile / low-boiling-point solvents |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Vacuum Controller | Integrated VR-102S — 2.3" color LCD, vacuum setting range 0–1013 hPa |
| Vacuum Control Valve | OVR10 solenoid valve |
| Vacuum Control Modes | Manual / Gradient / Auto, with hold, auto-leak and auto-clean |
| Vacuum Controller Safety | Communication, pressure-sensor, memory, leak and high-pressure error detection with auto-leak on fault |
| Bath Type | Water bath |
| Bath Model | BM-302-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932542 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| REV-202M-CWA | SET | SET |
Documentation
More in This Series
- Rotary Evaporator (Main Unit) Digital
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bm-302-A Water Bath (5L), Glassware C
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware A
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware B
- Re-202-A Rotary Evaporator, Bo-302-A Oil Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Water Bath (5L), Glassware C
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware A
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware B
- Re-212-A Rotary Evaporator, Bm-312-A Oil Bath (5L), Glassware C
- Rotary Evaporator (Main Unit) Digital With Vacuum Regulator
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware A
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware A
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
- Rev-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware C
- Glassware Set A (Standard Diagonal) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set B (Vertical High Boiling Point) For Re-202-A/212-A And Rev-202M-A/212M-A
- Glassware Set C (Cold Finger Vertical) For Re-202-A/212-A And Rev-202M-A/212M-A
- Vacuum Regulator For Re-202-A/212-A
- Vacuum Controller For Re-202-A/212-A (Latin America Countries)
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every REV202MA system arrives as a genuine factory unit backed by the manufacturer warranty. Order directly and our lab-equipment specialists can answer configuration and spec questions before you commit.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ships from USA inventory.
- Specialist support: dedicated lab-equipment team for spec and compatibility questions.
- Complete system: main unit, Glassware Set C and BM302A water bath shipped together as one kit.
Frequently Asked Questions
What is the temperature range of the BM302A water bath?
The BM302A water bath heats from RT +10°C to 90°C with ±1.0°C accuracy. It holds roughly 5 L (Φ240 × H119 mm) and includes overheat prevention, a temperature upper-limit error and an overcurrent fuse.
What flask sizes are compatible with the REV202MA?
Evaporation flasks from 50 to 2000 ml are compatible, with an optional reducer for smaller flasks. Receiving flasks range from 100 to 2000 ml. Rotation runs at 5–315 rpm with evaporation capacity up to 23 ml/min.
What voltage and power does this configuration require?
This configuration runs on 100–115V, 50/60 Hz at 1 A and ships with a plug. Confirm your bench provides a standard 115V circuit before installation. A 2A service outlet is built into the bath.
Which seals and glassware come with this set?
The system includes Glassware Set C with a cold-finger vertical condenser for volatile, low-boiling-point solvents. FKM vacuum seals ship standard; PTFE seals are recommended when working with ketone or ether solvents.
How is vacuum controlled on the REV202MA?
Vacuum is managed by an integrated VR102S controller with a 2.3" color LCD and a 0–1013 hPa setting range. It offers manual, gradient and auto modes, plus hold, auto-leak and auto-clean functions through an OVR10 solenoid valve.
What are the shipping dimensions and weight?
The unit ships at approximately 90 lbs with packed dimensions of 36 × 36 × 27 inches. It is air eligible and shipped as a complete three-component kit. Country of origin is Switzerland (GTIN 797059932542).
