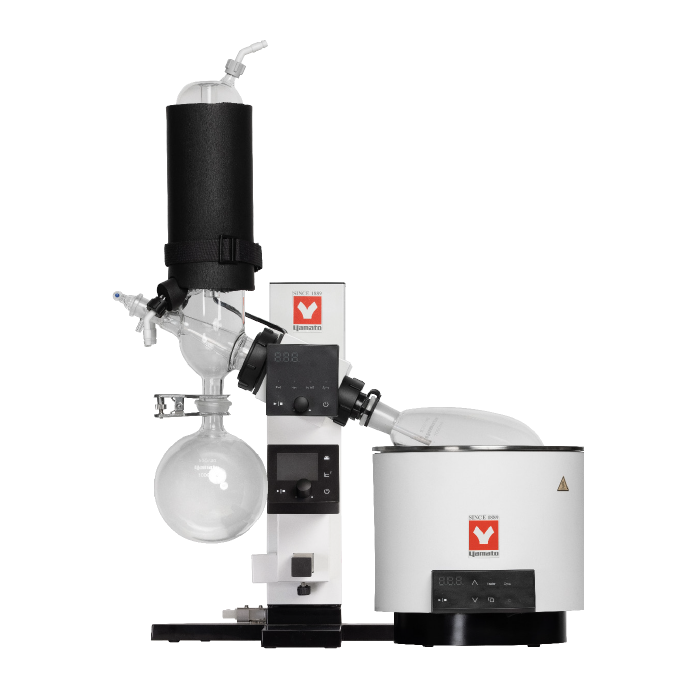

Rev-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware B Overview
The Rev-202M-A Rotary Evaporator with Vacuum Regulator, BM302A Water Bath (5L), Glassware B is a complete REV202MA distillation system from Yamato Scientific, supplied by LabSupplies.com as an authorized dealer. This rotary evaporator package pairs a 5 L water bath heating to 90°C with an integrated VR102S vacuum controller and Set B vertical-condenser glassware.
Construction uses chromium-free electrogalvanized steel with a baked-on finish, anodized aluminum, and glass-fiber-reinforced polybutylene terephthalate resin. A double-corrugated condenser delivers 0.143 m² of cooling surface, while the DC brushless servo motor drives rotation across 5–315 rpm. Manual spring-loaded jack lift travels to 200 mm with stepless one-touch locking.
Operating on 100–115V, 50/60 Hz power, the system occupies a 36 × 36 × 27 in footprint and ships at 90 lbs. Set-inversion mounting lets glassware and bath sit on either side to suit handedness and bench layout. Country of origin is Switzerland (CH).
Key Features
- Integrated vacuum control: built-in VR102S controller with a 2.3" color LCD, 0–1013 hPa setting range, and Manual, Gradient, and Auto modes featuring hold, auto-leak, and auto-clean functions.
- Variable rotation: DC brushless servo motor runs 5–315 rpm with Forward, Reverse, and Auto-inversion modes, shown on a digital display with eight brightness levels.
- Efficient condensing: double corrugated-tube condenser provides 0.143 m² of cooling surface and evaporation capacity up to 23 ml/min.
- BM302A water bath: 5 L bath (Φ240 × H119 mm) heats from RT +10°C to 90°C at ±1.0°C accuracy, with a 2A service outlet.
- Manual jack lift: spring-loaded mechanism raises to 200 mm height with stepless adjustment and one-touch lock.
- Set inversion and insulation: glassware and bath mount on either side, and a standard condenser insulation kit suppresses surface condensation.
How to Choose the Right Rotary Evaporator
Selecting a rotary evaporator system means matching solvent volume, heating temperature, and vacuum control to your distillation workflow and site power. Use these axes to confirm fit before purchase.
- Capacity: match the water bath and flask range to your batch size — this set offers a 5 L bath and supports 50–2000 ml evaporation flasks and 100–2000 ml receiving flasks.
- Temperature range: confirm the bath reaches your solvent's boiling point; the BM302A heats from RT +10°C to 90°C.
- Vacuum control: integrated controllers automate pressure profiles — the VR102S provides Manual, Gradient, and Auto modes across 0–1013 hPa.
- Voltage and power: verify your circuit; this configuration runs on 100–115V, 50/60 Hz.
- Footprint and handedness: check bench or fume-hood space against the 36 × 36 × 27 in footprint, and use set-inversion mounting for left- or right-side layouts.
- Solvent compatibility: select the right seal material — FKM is standard, while PTFE is recommended for ketone or ether solvents.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 5 L |
| Voltage | 115V |
| Type | Rotary evaporator complete system |
| Configuration | REV-202M main unit with vacuum controller + Glassware B + water bath |
| Glassware Set | Set B — standard vertical condenser, space-saving (three fit in a standard fume hood) |
| Operating Ambient Temperature | 5–35°C |
| Rotation Speed Range | 5–315 rpm |
| Evaporation Capacity | Up to 23 ml/min |
| Rotation Modes | Forward / Reverse / Auto-inversion |
| Speed Display | Digital display with control knob (8 brightness levels) |
| Lift Mechanism | Manual spring-loaded jack — max height 200 mm, stepless, one-touch lock |
| Set Inversion | Glassware and bath mountable on either side (left or right) |
| Rotary Motor | DC brushless (simple servo) |
| Cooling Condenser | Double corrugated tube, 0.143 m² cooling surface |
| Compatible Evaporation Flask | 50–2000 ml (optional reducer for smaller flasks) |
| Compatible Receiving Flask | 100–2000 ml |
| Vacuum Seal | FKM standard (PTFE recommended for ketone / ether solvents) |
| Safety Functions | Motor overload, over-/low-voltage and speed-sensor-error protection; AC adapter short-circuit, overcurrent and overvoltage protection |
| Vacuum Controller | Integrated VR-102S — 2.3" color LCD, vacuum setting range 0–1013 hPa |
| Vacuum Control Valve | OVR10 solenoid valve |
| Vacuum Control Modes | Manual / Gradient / Auto, with hold, auto-leak and auto-clean |
| Vacuum Controller Safety | Communication, pressure-sensor, memory, leak and high-pressure error detection with auto-leak on fault |
| Bath Type | Water bath |
| Bath Model | BM-302-A |
| Bath Temperature Range | RT +10°C to 90°C |
| Bath Temperature Accuracy | ±1.0°C |
| Bath Capacity | ~5 L (Φ240 × H119 mm) |
| Bath Safety | Automatic and independent overheat prevention, temperature upper-limit error, overcurrent fuse; 2A service outlet |
| Power Supply | 100–115V, 50/60 Hz, 1 A (with plug) |
| Material | Exterior: Chromium-free electrogalvanized steel sheet, baked-on finish; Aluminum, baked-on finish/anodized; Polybutylene terephthalate resin (with fiber glass) |
| Country of Origin | China |
| GTIN (Barcode) | 797059932078 |
| Shipping Weight | 90 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
| Component Size | 1 L |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| REV-202M-BWA | SET | SET |
Documentation
More in This Series
- REV-202M-A Rotary Evaporator With Vacuum Regulator, Bm-302-A Water Bath (5L), Glassware C
- REV-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware B
- REV-212M-A Rotary Evaporator With Vacuum Regulator, Bm-312-A Water Bath (5L), Glassware C
- REV-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware B
- REV-202M-A Rotary Evaporator With Vacuum Regulator, Bo-302-A Oil Bath (5L), Glassware C
- REV-212M-A Rotary Evaporator With Vacuum Regulator, Bo-312-A Oil Bath (5L), Glassware B
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every REV202MA system ships as a genuine unit backed by the manufacturer warranty. Our lab-equipment specialists can answer configuration and spec questions before you order.
- Authorized dealer: genuine Yamato Scientific equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Specialist support: dedicated lab-equipment team for technical and spec questions.
- Complete system: main unit, vacuum controller, Set B glassware, and BM302A water bath supplied together.
Frequently Asked Questions
What temperature range does the BM302A water bath cover?
The BM302A water bath heats from room temperature +10°C up to 90°C, with a temperature accuracy of ±1.0°C. It includes automatic and independent overheat prevention plus a temperature upper-limit error function.
What are the system capacity and dimensions?
The bath holds approximately 5 L (Φ240 × H119 mm), and the complete system has a 36 × 36 × 27 in footprint and weighs 90 lbs. It supports evaporation flasks from 50–2000 ml and receiving flasks from 100–2000 ml.
What voltage and power does the REV202MA require?
The system runs on 100–115V, 50/60 Hz at 1 A with a standard plug. The water bath also provides a 2A service outlet, and the unit ships in the 115V configuration.
What vacuum control does the system include?
An integrated VR102S vacuum controller is included, featuring a 2.3" color LCD and a 0–1013 hPa setting range. It offers Manual, Gradient, and Auto modes with hold, auto-leak, and auto-clean, plus an OVR10 solenoid control valve.
Which seal material should I use for ketone or ether solvents?
FKM is the standard vacuum seal supplied with the system. For ketone or ether solvents, a PTFE seal is recommended to improve chemical compatibility.
What materials are used in the construction?
The exterior uses chromium-free electrogalvanized steel with a baked-on finish, anodized and baked-finish aluminum, and glass-fiber-reinforced polybutylene terephthalate resin. The condenser is a double corrugated tube providing 0.143 m² of cooling surface.
