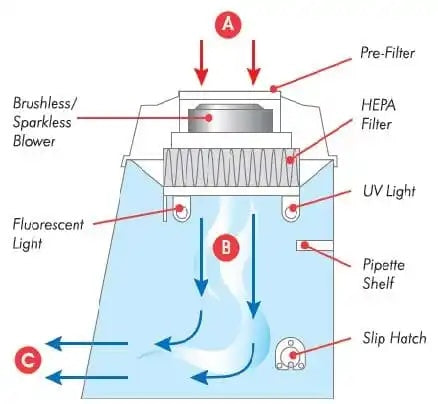

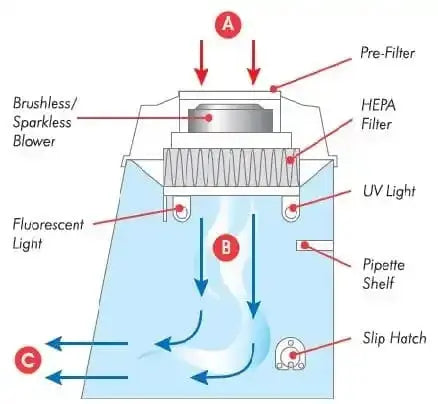

The AirClean Systems AC600 Series PCR workstation combines ISO 5 HEPA-filtered vertical laminar airflow with UV irradiation of the work surface and tools between amplifications, so airborne contaminants stay away from samples and carry-over between runs is cut. Room air passes through an electrostatic pre-filter and a HEPA filter, flows down through the chamber and recirculates to the room — no ductwork, no installation. It plugs into a standard 110 V or 220 V outlet and ships fully assembled.
Models
| Size | AirClean model | External W × D × H | Internal W × D × H | LabSupplies SKU |
|---|---|---|---|---|
| 24 in | AC624LFUV | 24 × 24 × 30 in | 23 × 23 × 18 in | 63100-24in |
| 32 in | AC632LFUVC | 32 × 24 × 30 in | 31 × 23 × 20 in | 63100-32in |
| 48 in | AC648LFUVC | 48 × 24 × 30 in | 47 × 23 × 21 in | 63100-48in |
| Mobile cart, 24 in | — | fits AC624LFUV | 63100-24cart | |
| Mobile cart, 32 in | — | fits AC632LFUVC | 63100-32cart | |
| Mobile cart, 48 in | — | fits AC648LFUVC | 63100-48cart |
How the UV cycle works
- Digital UV light timer, 1 to 59 minutes, for decontamination between runs
- Sash safety switch turns the UV lamp off and starts the blower when the sash is raised; the overlapping polycarbonate sash blocks UV exposure while the lamp is on
- Automatic sash switch turns the blowers off when the sash is closed and holds an air barrier
- Polycarbonate and polypropylene construction reflects UV energy back into the chamber; seamless design with no joints or gaps
- UV shelf with built-in pipettor holder; UV and LED lighting
Airflow and controls
- ISO 5 vertical laminar flow, HEPA filtration with electrostatic pre-filter
- UVTect® microprocessor controller with real-time monitoring of the filter bed and filter safety lockout
- Low-airflow alarm, visual and audible; lab event timer
- Quiet: under 49 dBA
- Filter and electronics above the workspace; access port for electrical cords
- ISO 5 tested; tested to UL 61010-1, CSA C22.2 No. 61010-1 and EN 61326-1
Options
ULPA filter and hard-surface disinfectant — ask us for a quote with your model number. For a clean workstation without UV, see the AC600 vertical laminar flow workstation. All models: Laminar Flow Hoods.
