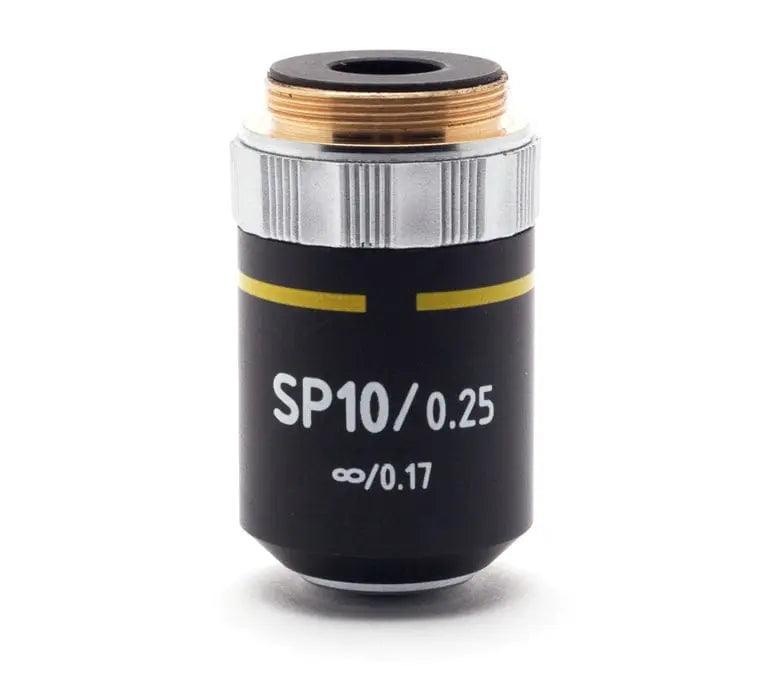

10x infinity semi-plan dry objective for the i4 Infinity microscope. LW Scientific part number I4O-010X-ISDR.
Fits these LW Scientific models
| Microscope / centrifuge | Model number |
|---|---|
| i-4 Infinity PLAN Microscope — Binocular | i4M-BN4A-iPL3 |
| i-4 Infinity PLAN Microscope — Trinocular | i4M-TN4A-iPL3 |
| i-4 Epi-Fluorescence Microscope — Binocular | i4S-EPB4-iPL3 |
| i-4 Epi-Fluorescence Microscope — Trinocular | i4S-EPT4-iPL3 |
| i-4 Semen Evaluation Microscope — Binocular | i4S-SEB4-iPL3 |
| i-4 Semen Evaluation Microscope — Trinocular | i4S-SET4-iPL3 |
Specifications
| Manufacturer | LW Scientific |
|---|---|
| Part Number | I4O-010X-ISDR |
| Magnification | 10x |
| Optics | Semi-Plan |
| Optical System | Infinity |
| Immersion | Dry |
Other Microscope Objectives
- 4x Infinity Plan Objective — I4O-004X-IPDR
- 4x Infinity Semi-Plan Objective — I4O-004X-ISDR
- 10x Infinity Plan Objective — I4O-010X-IPDR
- 20x Infinity Plan Objective — I4O-020X-IPDR
See every part in LW Scientific microscope objectives, or the full LW Scientific part-number catalog.
Frequently asked questions
Does I4O-010X-ISDR need an infinity-corrected microscope?
I4O-010X-ISDR is an infinity semi-Plan objective, listed by LW Scientific for the i-4 Infinity. DIN and infinity are different optical systems, so check which one your microscope uses.
Does I4O-010X-ISDR use immersion oil?
I4O-010X-ISDR is a dry objective — no immersion oil.
