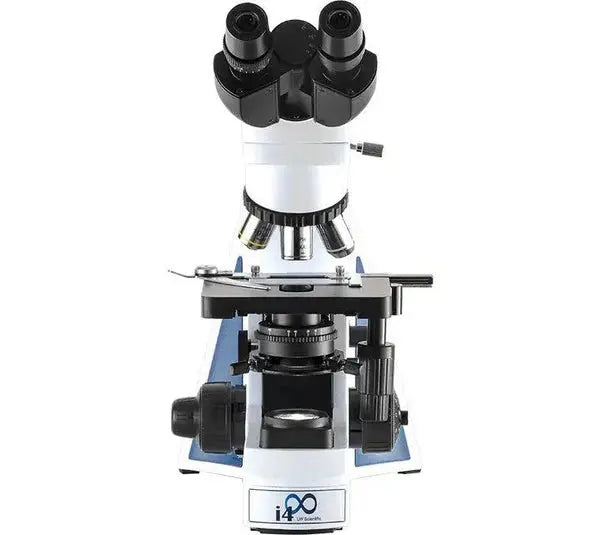

The LW Scientific i-4 Infinity PLAN microscope pairs a binocular head with four infinity-corrected PLAN objectives (40–1000×) for flat-field, high-contrast imaging. LED illumination and infinity optics make it a dependable everyday scope for research, clinical, and cytology work.
Specifications
| Specification | Detail |
|---|---|
| Series | i-4 Infinity PLAN |
| Head | Binocular |
| Objectives | 4 infinity PLAN objectives (40–1000×) |
| Optics | Infinity-corrected, flat-field PLAN |
| Illumination | LED |
| Country of origin | Imported |
Compare the i-4 Infinity Family
| Model | Head | Optics | Notes |
|---|---|---|---|
| i4M-BN4A-iSL3 | Binocular | Infinity semi-PLAN | |
| i4M-TN4A-iSL3 | Trinocular | Infinity semi-PLAN | 0.5× focusable C-mount |
| i4M-BN4A-iPL3 (this model) | Binocular | Infinity PLAN | |
| i4M-TN4A-iPL3 | Trinocular | Infinity PLAN | 0.5× focusable C-mount |
| i4S-T4BV-iSL3 | Trinocular | Infinity S-PLAN | + BioVID 4K camera & 13.3" monitor |
All i-4 Infinity models use infinity-corrected optics, 40×–1000×, and LED illumination.
Frequently Asked Questions
What magnification does the i4M-BN4A-iPL3 provide?
It provides 40–1000× with four infinity PLAN objectives.
What type of head does the i4M-BN4A-iPL3 have?
It has a binocular observation head.
What is the i4M-BN4A-iPL3 designed for?
The i4M-BN4A-iPL3 is designed for research, clinical, and cytology laboratories.
Parts and accessories for the i-4 Infinity PLAN Microscope
LW Scientific lists these 26 part numbers for i4M-BN4A-iPL3:
| Part number | Part | Type |
|---|---|---|
| I4P-ASM7-LED3 | LED Bulb Assembly for i4, 110/220 V | Microscope Bulbs, LED Assemblies & Power |
| I4P-ASM7-LEDP | LED Bulb Assembly for i4, 12 V DC | Microscope Bulbs, LED Assemblies & Power |
| MSP-CSE7-HDLK | Universal Hard Microscope Carry Case with Wheels | Microscope Cases, Covers & Slides |
| R3E-1018-WRET | 10x/18 mm Eyepiece with Reticle, Tapered | Microscope Eyepieces |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces |
| MSE-1020-2377 | 10x/20 mm Super-Wide Eyepiece | Microscope Eyepieces |
| I4H-BSFI-77NE | Binocular Head for i4 Infinity | Microscope Heads & Camera Tubes |
| I4H-TRII-ET0E | Trinocular Head for i4 Infinity with 0.5x C-Mount | Microscope Heads & Camera Tubes |
| I4O-100X-DFOL | 100x Infinity Plan Darkfield Objective | Microscope Objectives |
| MSO-100X-IPDR | 100x Infinity Plan Objective | Microscope Objectives |
| I4O-100X-IPOL | 100x Infinity Plan Oil Objective | Microscope Objectives |
| I4O-100X-ISOL | 100x Infinity Semi-Plan Oil Objective | Microscope Objectives |
| I4O-010X-IPDR | 10x Infinity Plan Objective | Microscope Objectives |
| I4O-010X-ISDR | 10x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-0025-iPDR | 2.5x Infinity Plan Objective | Microscope Objectives |
| I4O-020X-IPDR | 20x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-IPDR | 40x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-ISDR | 40x Infinity Semi-Plan Objective | Microscope Objectives |
| I4O-004X-IPDR | 4x Infinity Plan Objective | Microscope Objectives |
| I4O-004X-ISDR | 4x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-050X-IPOL | 50x Infinity Plan Oil Objective | Microscope Objectives |
| MSO-060X-IPDR | 60x Infinity Plan Objective | Microscope Objectives |
| I4O-SET7-IS77 | Infinity Semi-Plan Objective Set, 4x/10x/40x/100x | Microscope Objectives |
| I4P-PHST-20BF | Infinity Turret Phase Kit for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-CND7-DFOL | Oil Darkfield Condenser for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-POL7-7777 | Simple Polarizer Attachment for i4 | Phase, Darkfield & Polarizing Kits |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives, Phase, Darkfield & Polarizing Kits.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
