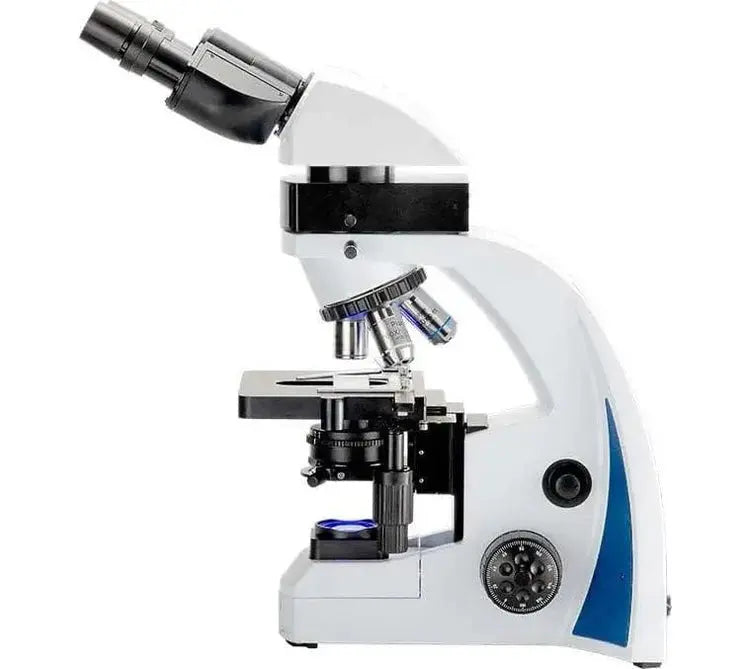

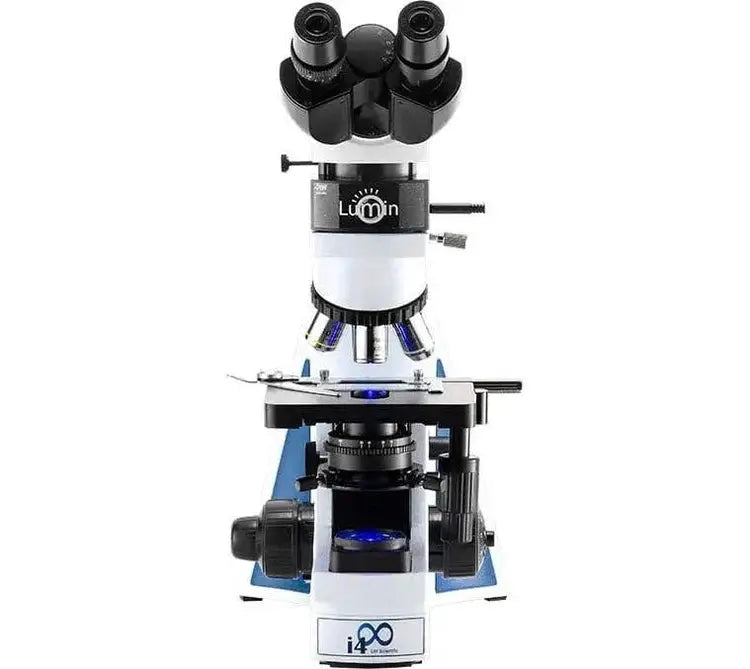

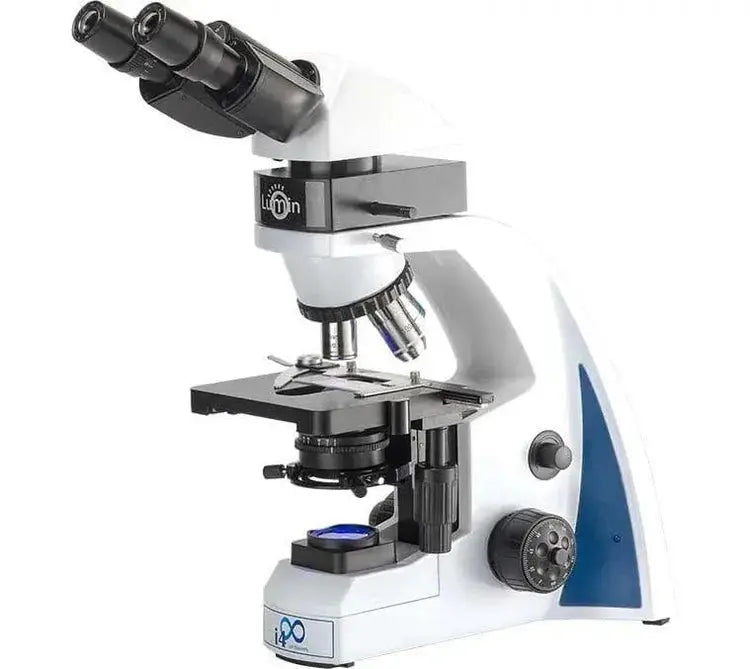

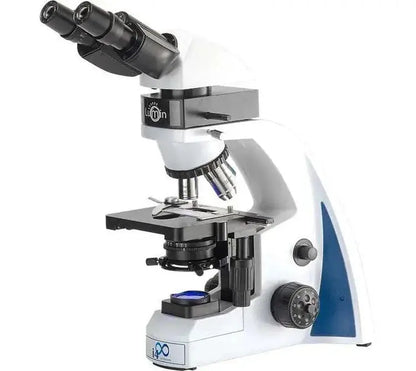

The i4 Epi-Fluor Microscope combines brightfield, phase contrast, and epi-fluorescence imaging with LED illumination for versatile sample analysis. i4S-EPB4-iPL3 delivers 485/510 nm excitation and uniform field illumination across all modalities.
Specifications
| Specification | Detail |
|---|---|
| Imaging modes | Brightfield, Phase Contrast, Epi-Fluorescence |
| Objectives | Infinity PLAN 4×, 10×, 40×, 100× Ph3 |
| Illumination | LED for fluorescence (485/510 nm) and halogen brightfield |
| Head | Trinocular with C-mount & eyetube |
| Magnification range | 40×–1000× |
| Light sources | LED >20,000 h, 12 V halogen |
| Condenser | Abbe Ph3 with iris diaphragm |
| Power | 110–240 VAC |
Compare the i-4 Application-Specific Microscopes
| Model | Application | Head | Key feature |
|---|---|---|---|
| i4S-SEB4-iPL3 | Semen evaluation | Binocular | Heated stage, phase contrast |
| i4S-SET4-iPL3 | Semen evaluation | Trinocular | Heated stage, phase, camera-ready |
| i4S-EPB4-iPL3 (this model) | Epi-fluorescence | Binocular | LUMIN 485/510nm FITC |

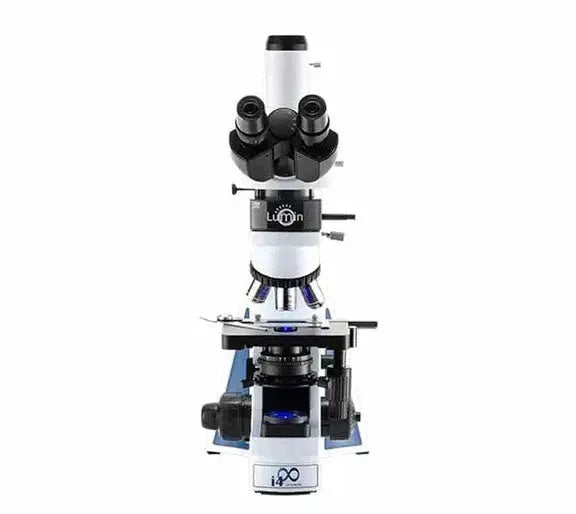

| i4S-EPT4-iPL3 | Epi-fluorescence | Trinocular | LUMIN 485/510nm, camera-ready |
| i4P-EPiL-485N | Fluorescence module | Add-on | Upgrades i-4, Nikon & Zeiss scopes |
Built on the i-4 Infinity platform with specialized configurations.
Frequently Asked Questions
What viewing head does the i4S-EPB4-iPL3 have?
The i4S-EPB4-iPL3 has a binocular head.
What is the i4S-EPB4-iPL3 designed for?
The i4S-EPB4-iPL3 is designed for clinical, research, and veterinary laboratories.
Parts and accessories for the i-4 Epi-Fluorescence Microscope
LW Scientific lists these 26 part numbers for i4S-EPB4-iPL3:
| Part number | Part | Type |
|---|---|---|
| I4P-ASM7-LED3 | LED Bulb Assembly for i4, 110/220 V | Microscope Bulbs, LED Assemblies & Power |
| I4P-ASM7-LEDP | LED Bulb Assembly for i4, 12 V DC | Microscope Bulbs, LED Assemblies & Power |
| MSP-CSE7-HDLK | Universal Hard Microscope Carry Case with Wheels | Microscope Cases, Covers & Slides |
| R3E-1018-WRET | 10x/18 mm Eyepiece with Reticle, Tapered | Microscope Eyepieces |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces |
| MSE-1020-2377 | 10x/20 mm Super-Wide Eyepiece | Microscope Eyepieces |
| I4H-BSFI-77NE | Binocular Head for i4 Infinity | Microscope Heads & Camera Tubes |
| I4H-TRII-ET0E | Trinocular Head for i4 Infinity with 0.5x C-Mount | Microscope Heads & Camera Tubes |
| I4O-100X-DFOL | 100x Infinity Plan Darkfield Objective | Microscope Objectives |
| MSO-100X-IPDR | 100x Infinity Plan Objective | Microscope Objectives |
| I4O-100X-IPOL | 100x Infinity Plan Oil Objective | Microscope Objectives |
| I4O-100X-ISOL | 100x Infinity Semi-Plan Oil Objective | Microscope Objectives |
| I4O-010X-IPDR | 10x Infinity Plan Objective | Microscope Objectives |
| I4O-010X-ISDR | 10x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-0025-iPDR | 2.5x Infinity Plan Objective | Microscope Objectives |
| I4O-020X-IPDR | 20x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-IPDR | 40x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-ISDR | 40x Infinity Semi-Plan Objective | Microscope Objectives |
| I4O-004X-IPDR | 4x Infinity Plan Objective | Microscope Objectives |
| I4O-004X-ISDR | 4x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-050X-IPOL | 50x Infinity Plan Oil Objective | Microscope Objectives |
| MSO-060X-IPDR | 60x Infinity Plan Objective | Microscope Objectives |
| I4O-SET7-IS77 | Infinity Semi-Plan Objective Set, 4x/10x/40x/100x | Microscope Objectives |
| I4P-PHST-20BF | Infinity Turret Phase Kit for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-CND7-DFOL | Oil Darkfield Condenser for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-POL7-7777 | Simple Polarizer Attachment for i4 | Phase, Darkfield & Polarizing Kits |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives, Phase, Darkfield & Polarizing Kits.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
