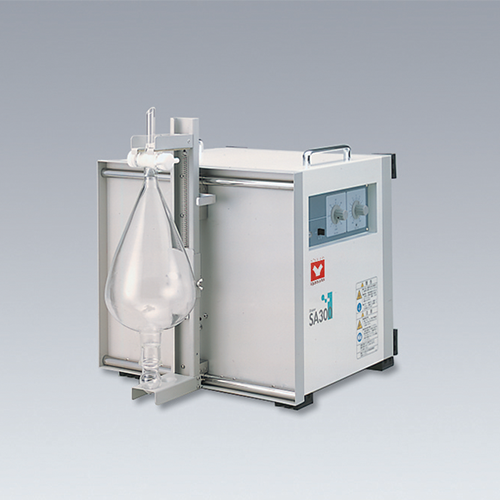

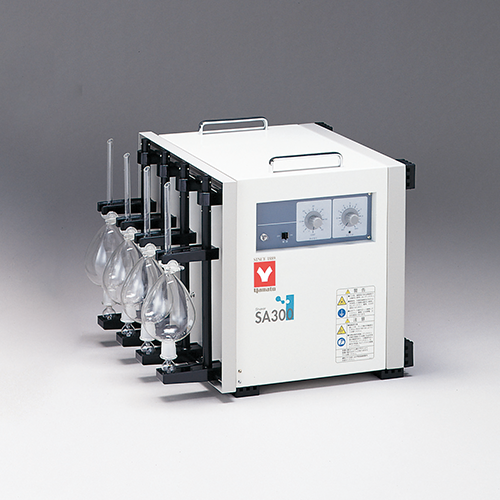

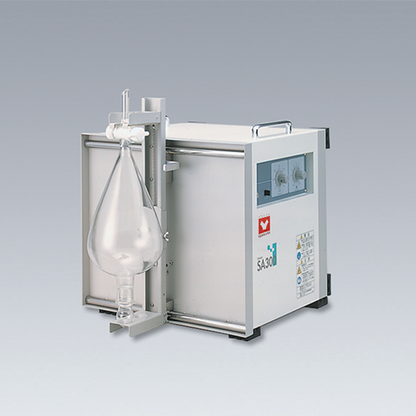

Yamato SA300 Laboratory Shaker Horizontal/Vertical 20-300 rpm Overview
The Yamato SA-300 laboratory shaker delivers vertical and horizontal (the unit can be laid on its side) shaking motion across a 20–300 rpm range with a 40 mm shaking width, for reproducible mixing, extraction, and agitation of liquid samples.
A dial frequency control with digital speed display sets the rate, and the built-in timer supports either timed or continuous operation. Durable sample holders attach and remove without tools (glassware sold separately). Constructed in Japan from melamine-coated steel with a SUS304 stainless frame, the SA-300 is built for continuous laboratory duty and is available in 115 V and 220 V.
How to Choose the Right Shaker
- Shaking motion: the SA-300 provides vertical/horizontal motion — match it to your application.
- Speed range: 20–300 rpm at a 40 mm shaking width.
- Holders: add separating-funnel or adjustable Erlenmeyer holder sets (see the SA-300A/SA-300B configurations) for your glassware.
- Voltage: choose 115 V or 220 V to match your lab supply.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | Laboratory shaker |
| Shaking Motion | Vertical / horizontal (unit can be laid on its side) |
| Shaking Speed | 20–300 rpm |
| Shaking Width | 40 mm |
| Controls | Dial frequency setting with digital display; timer or continuous operation |
| Holders | Durable, easily attached/removed holders (glassware not included) |
| Material | Iron bonderizing steel plate baked with melamine resin coating (casing) Iron bonderizing steel plate baked with melamine resin coating and cement (frame) Stainless steel SUS304 (pipe) Polyethylene (PET) resin film (production plates) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059931767 |
| Shipping Weight | 160 lbs |
| Dimensions (L × W × H) | 36 × 36 × 27 in |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SA-300-115V | 115V | EA |
| SA-300-220V | 220V | EA |
Documentation
More in This Series
- Compact Shaker Rotary, Elliptical & Reciprocate 20-200 rpm
- Laboratory Shaker Rotary & Horizontal/Rotary & Vertical 20-210 rpm
- Sa-300 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Sa-300 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
- Sa-320 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Sa-320 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
Ordering
Authorized dealer, ships from USA inventory. Serving academic, government, and research laboratories nationwide.
Frequently Asked Questions
What shaking motion and speed does the SA-300 provide?
The SA-300 delivers vertical/horizontal shaking across a 20–300 rpm range with a 40 mm shaking width.
Can I run timed or continuous cycles?
Yes. Frequency is set on a dial with a digital speed display, and the built-in timer supports both timed runs and continuous operation.
Are sample holders and glassware included?
The SA-300 uses tool-free removable holders. Specialized holders — such as separating-funnel or adjustable Erlenmeyer-flask sets — are available as the SA-300A and SA-300B configurations. Glassware is not included.
