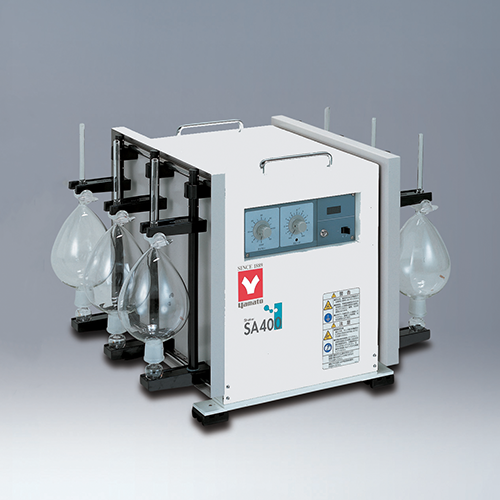

Yamato SA400 Laboratory Shaker Double-Sided Vertical 20-300 rpm Overview
The Yamato SA-400 laboratory shaker delivers double-sided vertical shaking motion across a 20–300 rpm range with a 40 mm shaking width, for reproducible mixing, extraction, and agitation of liquid samples. It runs up to 6 × 1 L and 4 × 2 L liquid-sample holders at once.
A dial frequency control with digital speed display sets the rate, and the built-in timer supports either timed or continuous operation. Durable sample holders attach and remove without tools (glassware sold separately). Constructed in Japan from melamine-coated steel with a SUS304 stainless frame, the SA-400 is built for continuous laboratory duty and is available in 115 V and 220 V.
How to Choose the Right Shaker
- Shaking motion: the SA-400 provides double-sided vertical motion — match it to your application.
- Speed range: 20–300 rpm at a 40 mm shaking width.
- Holders: add separating-funnel or adjustable Erlenmeyer holder sets (see the SA-400A/SA-400B configurations) for your glassware.
- Voltage: choose 115 V or 220 V to match your lab supply.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | Laboratory shaker |
| Shaking Motion | Double-sided vertical |
| Shaking Speed | 20–300 rpm |
| Shaking Width | 40 mm |
| Controls | Dial frequency setting with digital display; timer or continuous operation |
| Holders | Durable, easily attached/removed holders (glassware not included) |
| Sample Capacity | 6 × 1 L and 4 × 2 L liquid-sample holders simultaneously |
| Material | Iron bonderizing steel plate baked with melamine resin coating (casing) Iron bonderizing steel plate baked with melamine resin coating and cement (frame) Stainless steel SUS304 (pipe) Polyethylene (PET) resin film (production plates) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059931804 |
| Shipping Weight | 190 lbs |
| Dimensions (L × W × H) | 36 × 36 × 40 in |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SA-400-115V | 115V | EA |
| SA-400-220V | 220V | EA |
Documentation
More in This Series
- Sa-320 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
- Sa-320 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Sa-300 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
- Sa-300 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Laboratory Shaker Rotary & Horizontal/Rotary & Vertical 20-210 rpm
- Sa-400 With 6 Pcs. Of Separating Funnel Holder (Part No. 232096)
Ordering
Authorized dealer, ships from USA inventory. Serving academic, government, and research laboratories nationwide.
Frequently Asked Questions
What shaking motion and speed does the SA-400 provide?
The SA-400 delivers double-sided vertical shaking across a 20–300 rpm range with a 40 mm shaking width. It accommodates up to 6 × 1 L and 4 × 2 L liquid-sample holders at once.
Can I run timed or continuous cycles?
Yes. Frequency is set on a dial with a digital speed display, and the built-in timer supports both timed runs and continuous operation.
Are sample holders and glassware included?
The SA-400 uses tool-free removable holders. Specialized holders — such as separating-funnel or adjustable Erlenmeyer-flask sets — are available as the SA-400A and SA-400B configurations. Glassware is not included.
